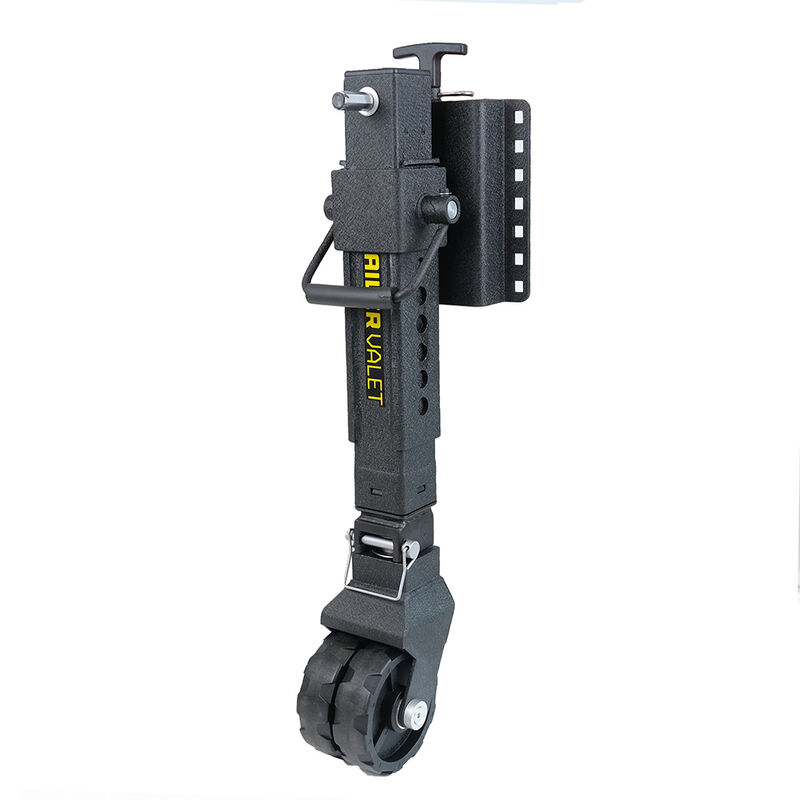

Trailer Valet JX3-SS 3,000-lb. Side-Mount Drill Jack
$349
FREE Shipping
- Ships from vendor
- Delivery to Change Address
- Delivery Fee Details
This item is excluded from all discounts and promotions.
Minimum order quantity of
1
Maximum order quantity of
100
Must purchase in increments of
1
Return Policy
We believe in offering the very best value, quality, and selection. Plus, we want you to enjoy your purchase! In the event you wish to send a product back to us, you may return most unused items for a refund or exchange, minus shipping, within 90 days from the date of purchase unless noted below under exceptions and exclusions. Refunds are issued to the original form of payment.
Features
The Trailer Valet JX3-SS Squared Drill Jack is the most rugged, versatile, and high-performance jack on the market. Designed for users who demand durability, functionality, and aesthetic appeal, this jack stands apart with its heavy-duty construction and innovative features.
Equipped with a unique dual-pin handle for easy height adjustments, a quick-drop feature for faster lifting, and a custom independent dual-wheel design for superior movement, the JX3 Squared offers unparalleled convenience. Whether you're towing, launching a boat, or navigating rough terrain, this jack adapts to your needs with its customizable height and stow options (Left, Right, Up, Down).
Designed for strength and durability, it boasts a high static weight capacity of up to 3,000 lbs., a robust gear ratio of 6:7, and Trailer Valet's Signature Wrinkle Black Powder Coating with 700-hour corrosion resistance. With drill-powered functionality for effortless operation and future compatibility with the MV Series of trailer movers, this is more than just a jack – it's the ultimate towing solution.

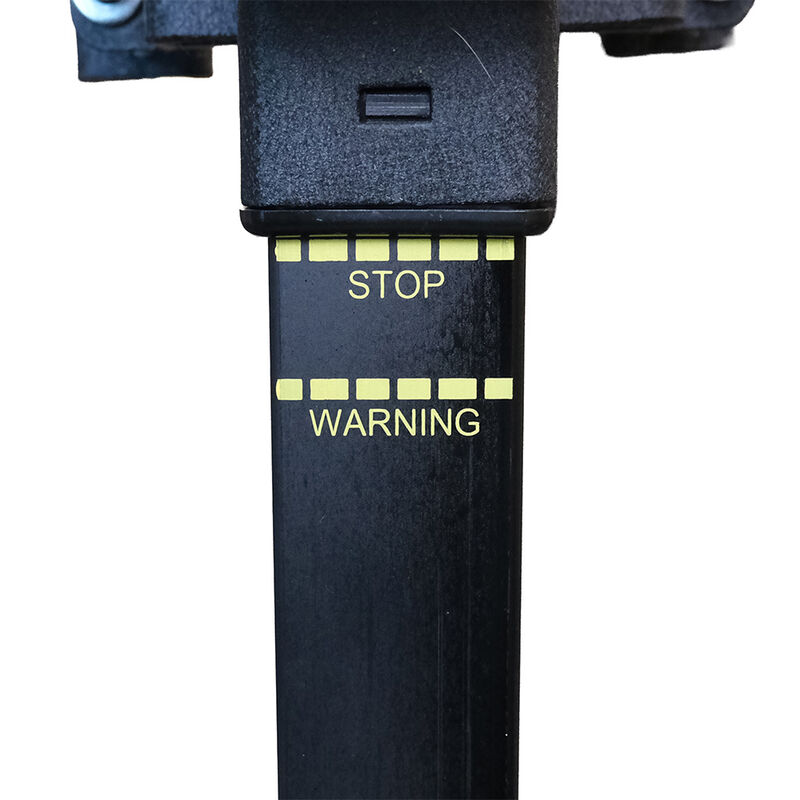

The JX series includes clearly implemented Warning and Stop indicators located at the top of the inner tube. These markers are designed to prevent jack over-extension, keeping your equipment safer and extending product life. Whether you're a marine adventurer, an overland enthusiast, or someone who values premium features and rugged aesthetics, the JX3 Squared is built to exceed expectations and dominate any terrain with confidence.

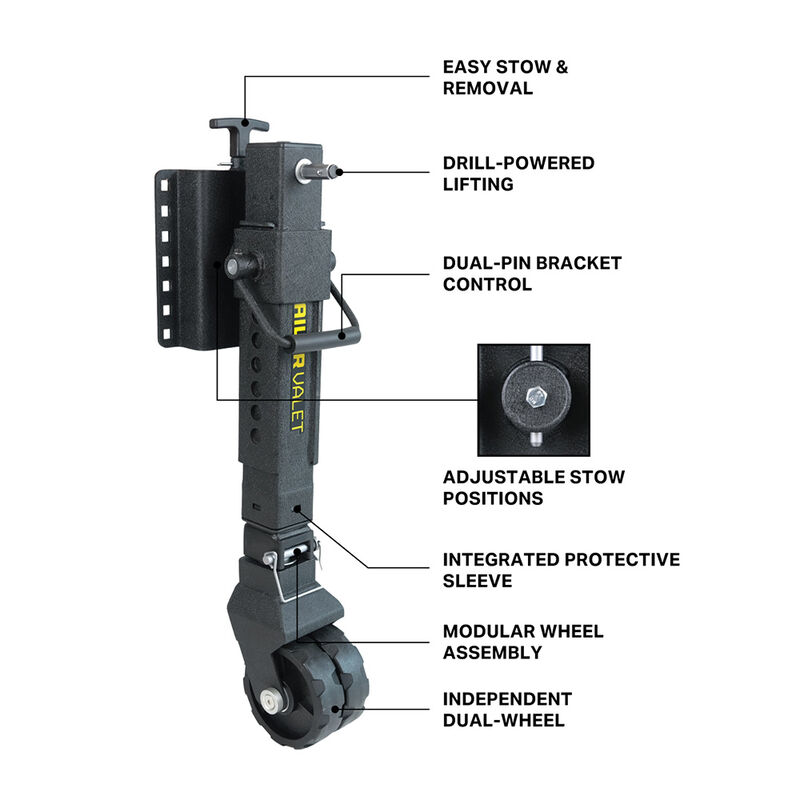

• Built for extreme durability and high performance
• Quick-drop adjustable jack positioning for faster lifting

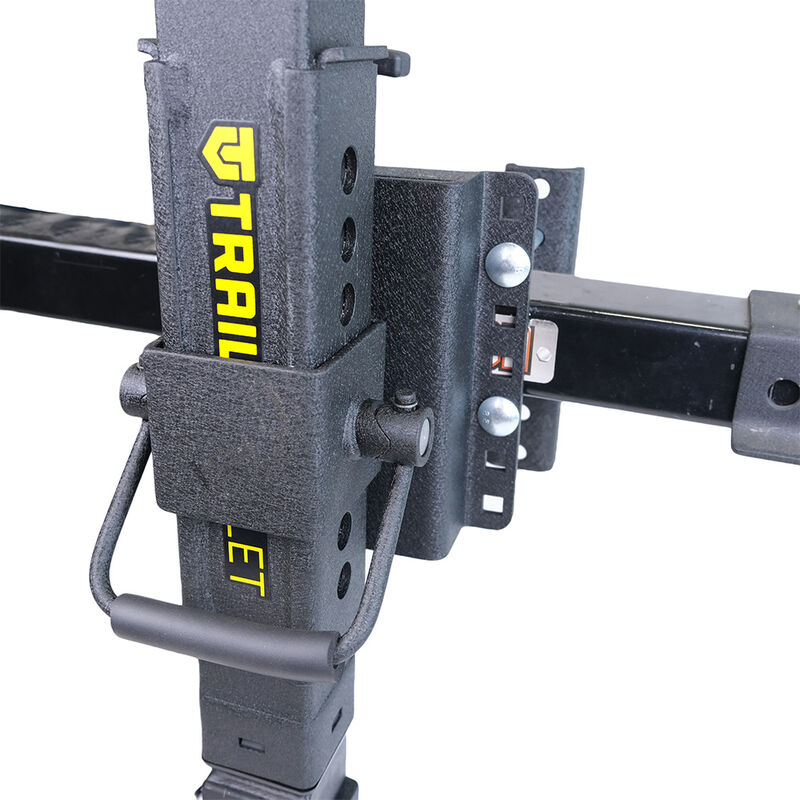

• Dual-pin handle for bracket for easy height adjustments
• Dual-wheel design ensures better movement and load distribution
• Removable wheel for versatile configuration options

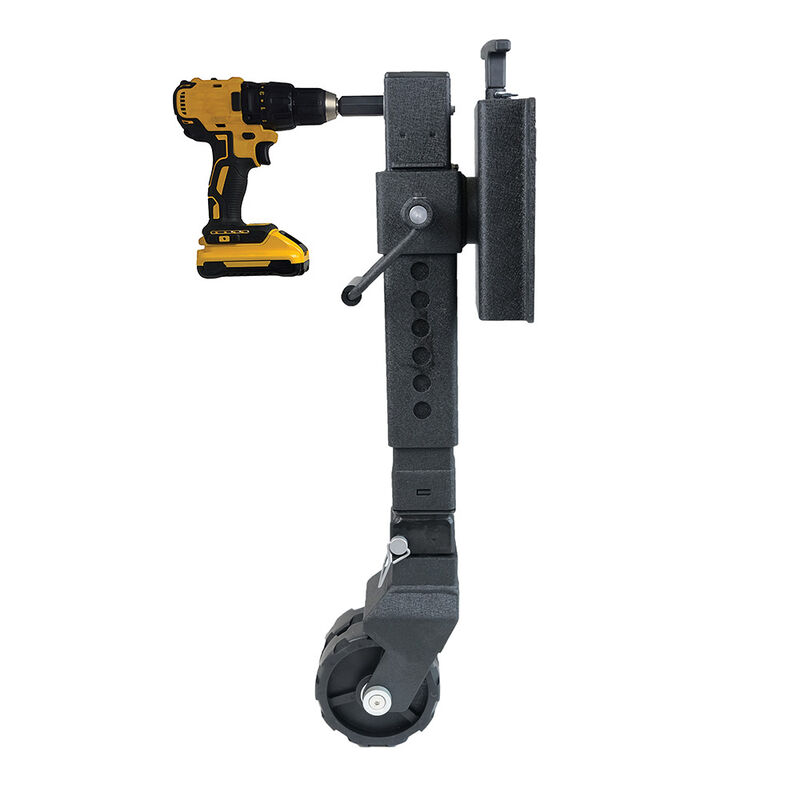

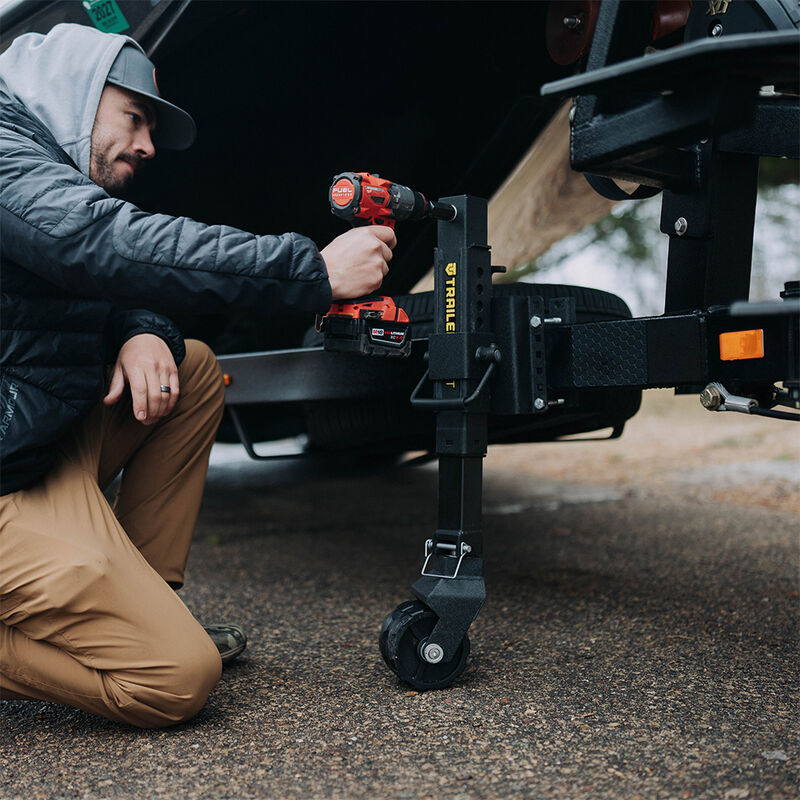

• Drill-powered operation for faster and easier lifting
• Protective sleeve between inner and outer tube to extend lifespan
• Signature wrinkle black powder coating
• 6:7 gear ratio for smooth operation

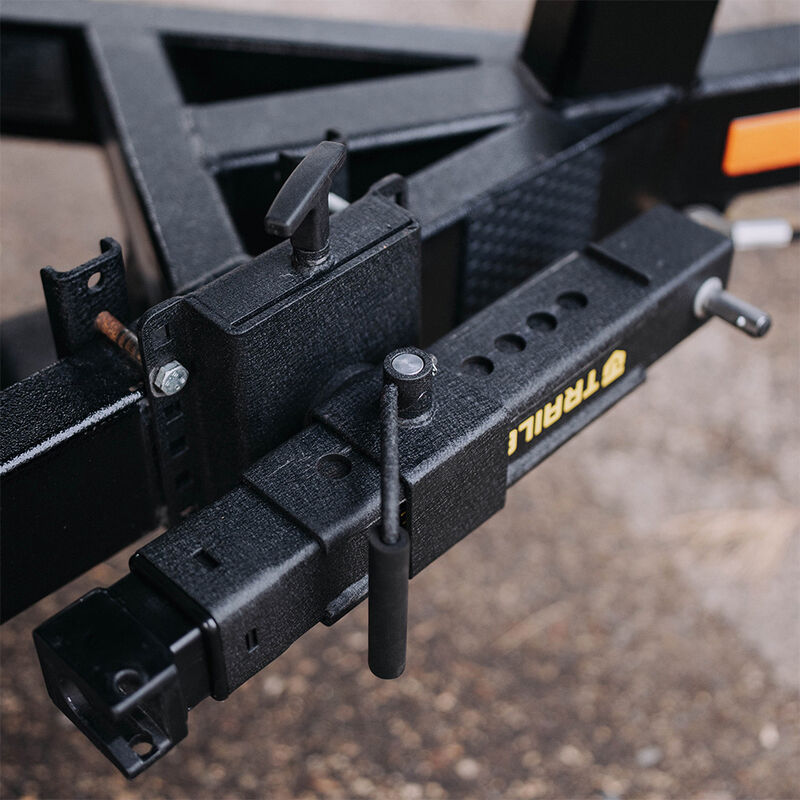

• Left, right, up, down stow options for optimized positioning
• Easy to stow or remove

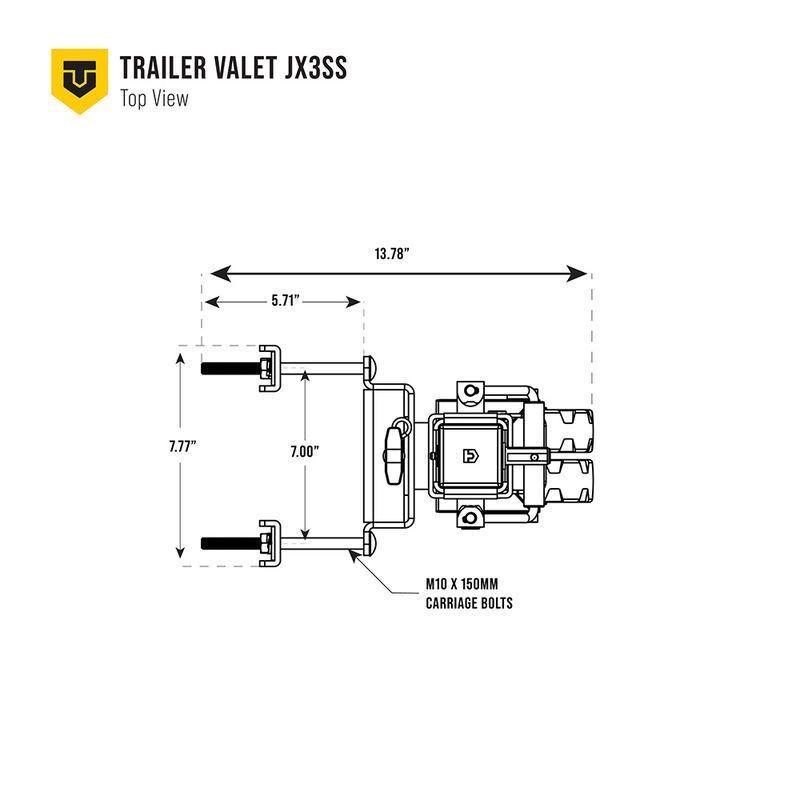

• Max Frame Size: 5.0"W x 5.4"H
• 8.5" max extension, 7.0" drop distance

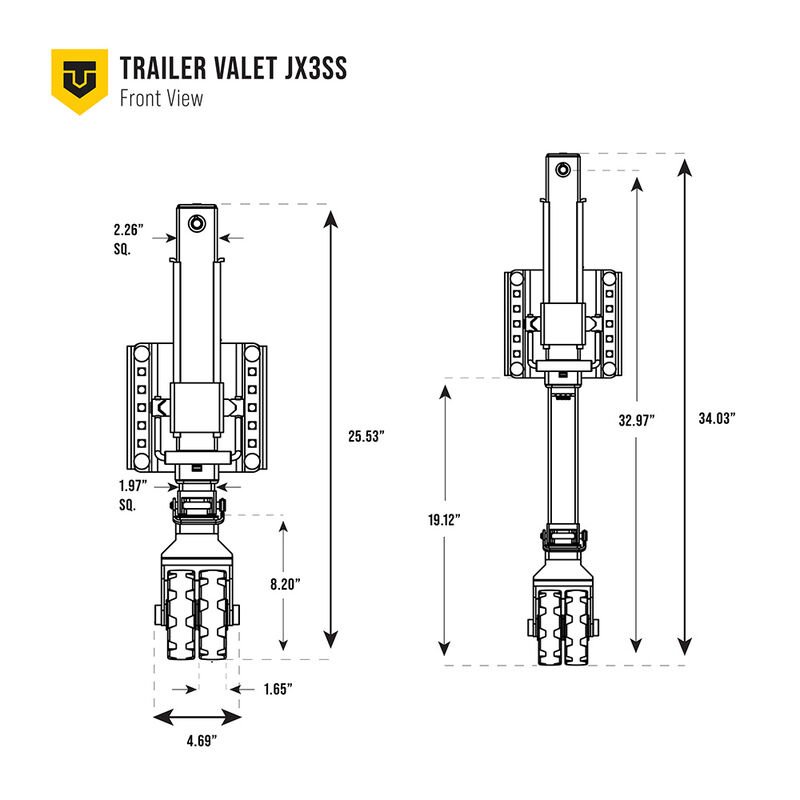

• 25.5" total retracted height, 34.0" total extended height

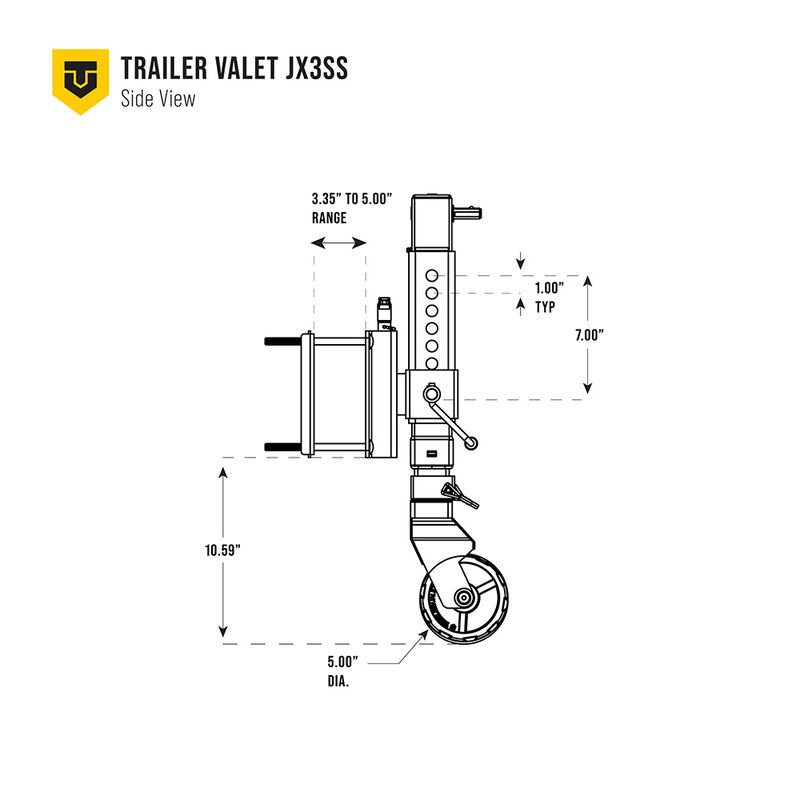

• Retracted Height (from mount flange to ground): 10.6" - 17.6"
• Extended Height (from mount flange to ground): 19.1" - 26.1"
• Bolt-on installation recommended
Specifications
Dynamic Lift Capacity with Hand Crank: 1500 lbs.
Dynamic Lift Capacity with Drill Attachment and Drill: 750 lbs.
Static Tongue Weight: 3000 lbs.

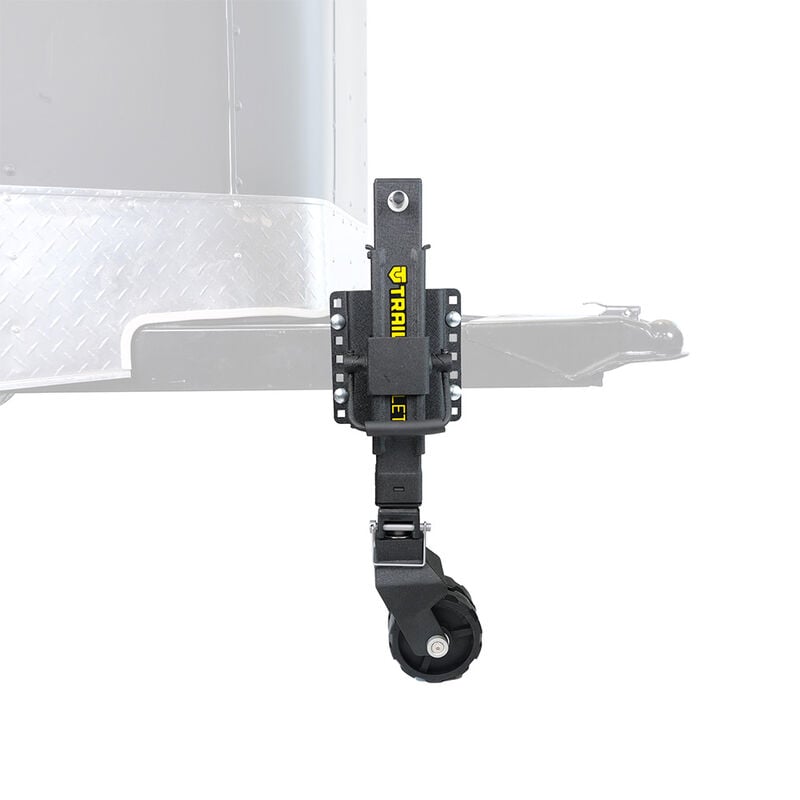

Mounting Type: Side
Dimensions: 25.3"H x 7"W x 8"D
Net Weight: 28 lbs.
Equipped with a unique dual-pin handle for easy height adjustments, a quick-drop feature for faster lifting, and a custom independent dual-wheel design for superior movement, the JX3 Squared offers unparalleled convenience. Whether you're towing, launching a boat, or navigating rough terrain, this jack adapts to your needs with its customizable height and stow options (Left, Right, Up, Down).
Designed for strength and durability, it boasts a high static weight capacity of up to 3,000 lbs., a robust gear ratio of 6:7, and Trailer Valet's Signature Wrinkle Black Powder Coating with 700-hour corrosion resistance. With drill-powered functionality for effortless operation and future compatibility with the MV Series of trailer movers, this is more than just a jack – it's the ultimate towing solution.
The JX series includes clearly implemented Warning and Stop indicators located at the top of the inner tube. These markers are designed to prevent jack over-extension, keeping your equipment safer and extending product life. Whether you're a marine adventurer, an overland enthusiast, or someone who values premium features and rugged aesthetics, the JX3 Squared is built to exceed expectations and dominate any terrain with confidence.
• Built for extreme durability and high performance
• Quick-drop adjustable jack positioning for faster lifting
• Dual-pin handle for bracket for easy height adjustments
• Dual-wheel design ensures better movement and load distribution
• Removable wheel for versatile configuration options
• Drill-powered operation for faster and easier lifting
• Protective sleeve between inner and outer tube to extend lifespan
• Signature wrinkle black powder coating
• 6:7 gear ratio for smooth operation
• Left, right, up, down stow options for optimized positioning
• Easy to stow or remove
• Max Frame Size: 5.0"W x 5.4"H
• 8.5" max extension, 7.0" drop distance
• 25.5" total retracted height, 34.0" total extended height
• Retracted Height (from mount flange to ground): 10.6" - 17.6"
• Extended Height (from mount flange to ground): 19.1" - 26.1"
• Bolt-on installation recommended
Specifications
Dynamic Lift Capacity with Hand Crank: 1500 lbs.
Dynamic Lift Capacity with Drill Attachment and Drill: 750 lbs.
Static Tongue Weight: 3000 lbs.
Mounting Type: Side
Dimensions: 25.3"H x 7"W x 8"D
Net Weight: 28 lbs.
- Equipped with a unique dual-pin handle for easy height adjustments
- Quick-drop feature for faster lifting
- Custom independent dual-wheel design for superior movement
- Boasts a high static weight capacity of up to 3,000 lbs.
- Drill-powered functionality for effortless operation
Specs
Unit Weight
28.00 lb
Brand
Trailer Valet
MFG Part No.
TVJX3-SS
