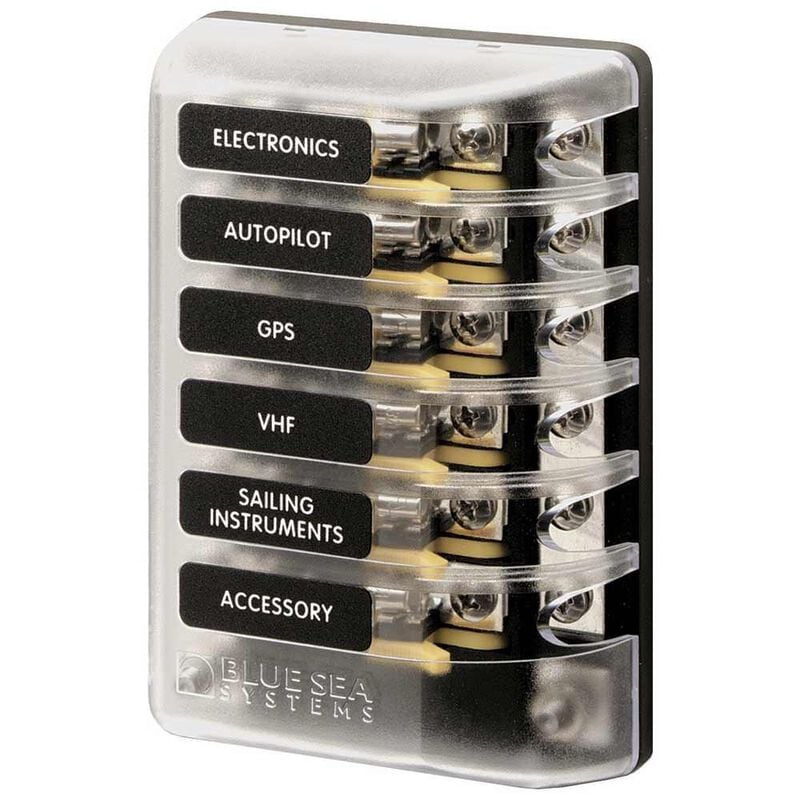

ST Glass 6 Circuit Fuse Block with Negative Bus and Cover
Item No. 86300
ST Glass 6 Circuit Fuse Block with Negative Bus and Cover is rated
out of
5 by
2.
Images
Details
https://www.overtons.com/st-glass-6-circuit-fuse-block-with-negative-bus-and-cover-86300.html
ST Glass 6 Circuit Fuse Block with Negative Bus and Cover
$37.99
$46.49
Save $8.50
(
18% Off
)
Additional Information
Features
The Blue Sea ST (Screw Terminal) Glass Fuse Block is designed for use with AGC and MDL fuses and can be used for 24-hour circuits. Polycarbonate cover meets ABYC/USCG requirements, insulates conductive parts, features spare fuse storage, and accepts large format labels. Phosphor bronze fuse clips are encapsulated so that they cannot be sprung, injuring hands. Base is made from reinforced polycarbonate. Features an integrated fuse ejector lever, tin-plated copper buses, and a #10-32 stainless steel terminal stud. Accepts any 3AG type glass fuse, including AGC (fast-acting) and MDL (time delay) from 1/8 to 30 Amps. Fuses sold separately.
• Maximum Amperage: 100A
• Maximum Voltage: 32V DC
• Screw Terminal: #8-32 with Captive Star Lockwasher
• Tin-plated copper negative busbar
Show moreShow less
• Maximum Amperage: 100A
• Maximum Voltage: 32V DC
• Screw Terminal: #8-32 with Captive Star Lockwasher
• Tin-plated copper negative busbar
- For use with AGC and MDL fuses
- Insulating cover meets ABYC/USCG requirements
- Cover has spare fuse storage
- Encapsulated phosphor bronze fuse clips
- Tin-plated copper buses
Specs
| Unit Weight | 0.56 lb |
|---|---|
| Brand | Blue Sea Systems Inc |
| MFG Part No. | 5015 |
Reviews
Rated 4 out of
5
by
never again from
Good Deal
How to use this product??? Thats up to you.
Date published: 2012-07-30
Rated 5 out of
5
by
Pepi from
Great product
Great to minimize space in the control board
Date published: 2009-10-06
