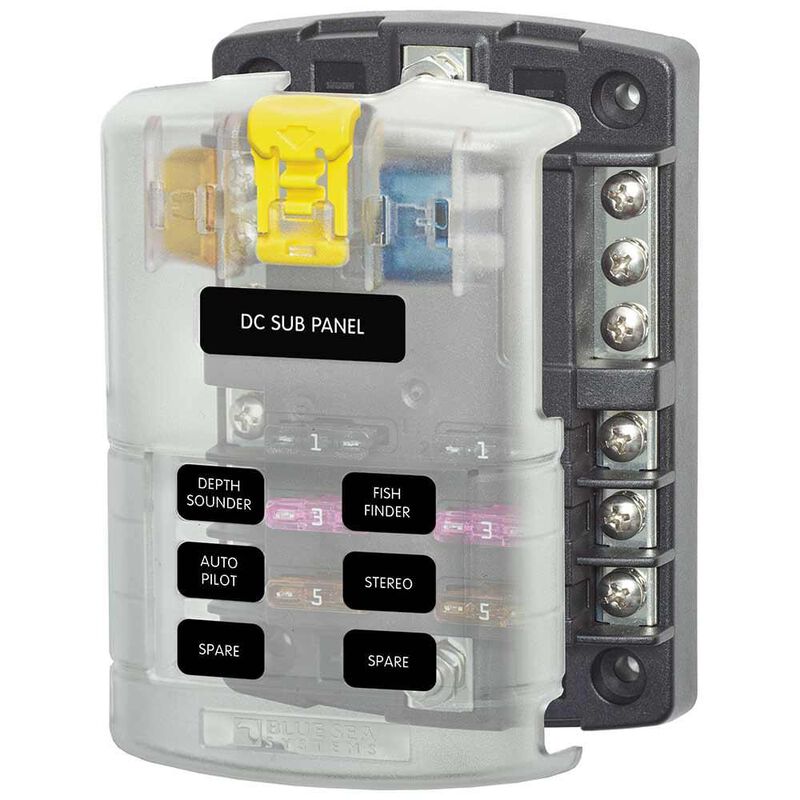

ST Blade Fuse Block – 6 Circuits with Negative Bus and Cover
Item No. 86301
Images
ST Blade Fuse Block – 6 Circuits with Negative Bus and Cover
Details

ST Blade Fuse Block – 6 Circuits with Negative Bus and Cover

ST Blade Fuse Block – 6 Circuits with Negative Bus and Cover is rated 4.8 out of 5 by 12.
  • y_2019, m_5, d_23, h_18
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_12
  • loc_en_US, sid_86301, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_overtons
  • bvseo_sdk, dw_cartridge, 17.1.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 67ms
  • reviews, product
Item No. 86301
$35.49 $39.99
( 11% Off )
Product Actions

In Stock

Additional Information
This compact ATO/ATC fuse block consolidates branch circuits and eliminates the tangle of in-line fuses for electronics and other appliances. Can be used for switched and/or 24-hour circuits. Includes an insulated cover that meets ABYC/USCG requirements with push-button latch and spare fuse storage. Corrosion-resistant tin-plated copper buses and fuse clips. Accepts ATO or ATC fast acting blade fuses and ring terminals. Fuses sold separately. Includes write-on small format circuit labels.

The Common Sourced Circuit Fuse Blocks circuits must all be switched or all be 24-hour circuits.

• Maximum Voltage: 32V DC
• Maximum Amperage: 30 Amps (per circuit); 100 Amps (per block)
• Screw Terminal: #8-32 screws with captive star lock washer
• Positive Distribution Bus w/#10-32 stud
• Negative Distribution Bus w/#10-32 stud
• 3.32"W x 4.89"H
Show moreShow less
  • Accepts ATO or ATC fast acting fuses
  • Corrosion-resistant tin-plated copper buses, clips
  • Can be used for switched and/or 24-hour circuits
  • Maximum voltage 32V DC
  • Cover meets ABYC/USCG requirements for insulation
  • Unit Weight 0.60 lb
    Brand Blue Sea Systems Inc
    MFG Part No. 5025
    Rated 5 out of 5 by from Quality product Converted my bus bars in both of my boats to these fuse boxes. Much easier to track down a blown fuse now. Highly recommend!
    Date published: 2015-08-21
    Rated 5 out of 5 by from Blade Fuse Block - 6 Circuits w/Cover Negative Bus Blade Fuse Block - 6 Circuits w/Cover Negative Bus this is the second one I have used on two boats makes it nice to see if a fuse is out.
    Date published: 2015-07-13
    Rated 4 out of 5 by from perfect Worked better than anticipated
    Date published: 2015-07-10
    Rated 5 out of 5 by from Perfect fit Used to add additional devices. Does the job!
    Date published: 2015-06-24
    Rated 5 out of 5 by from I like that it is easy to wire For the $$$ it is a good buy. It is very well manufactured and easy to wire. Servicing will be also easy to do. If I blow a circuit getting the fuse out and new one in will be easy.
    Date published: 2013-06-24
    Rated 5 out of 5 by from Just Great! I installed it in my Yamaha Rhino glove box to use with 12 volt accessories. It has the ground block built in so that's a big plus. Very affordable compared with other UTV fuse blocks. Very well built, too. Oh, and the service was great!
    Date published: 2013-05-27
    Rated 5 out of 5 by from evrything said it was and more came on time in mail opened box and didnt take 30 min to instal inc removing all my old wires
    Date published: 2013-03-08
    Rated 5 out of 5 by from Great Product Great product and easy to install
    Date published: 2013-02-04
