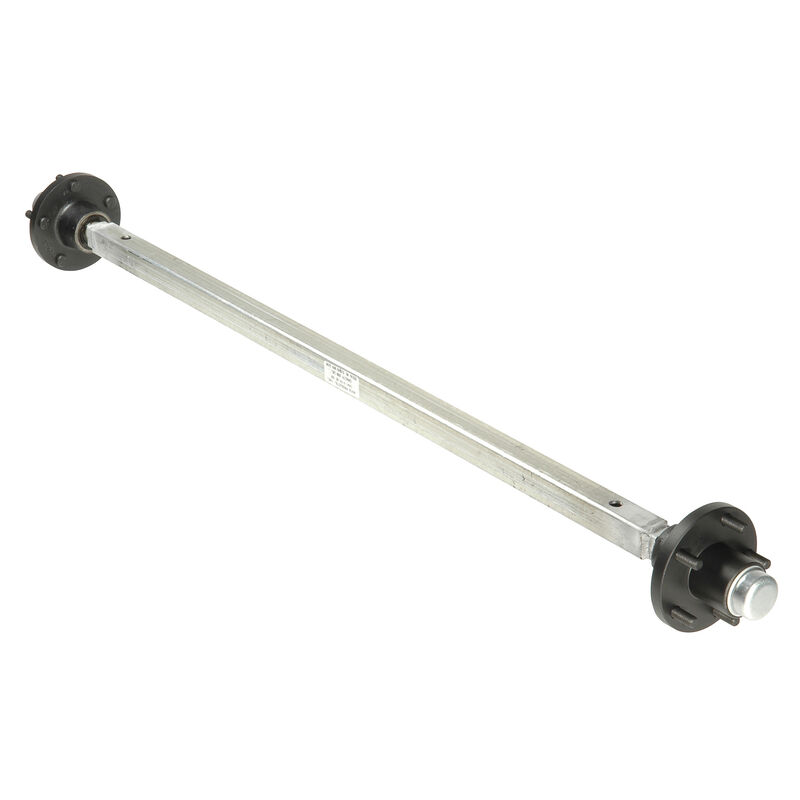

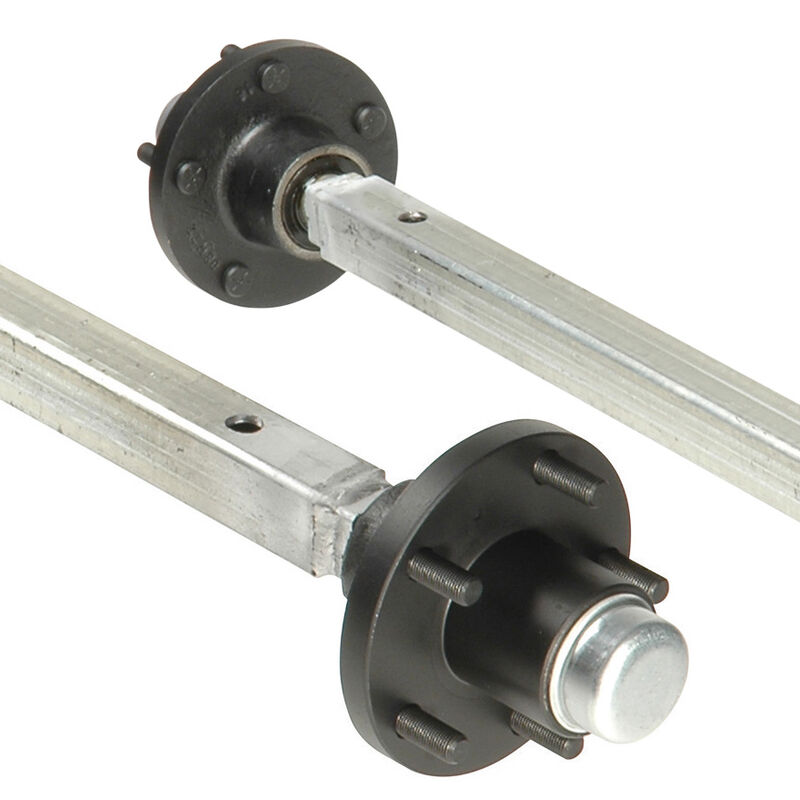

Smith Galvanized 54" Trailer Axle Beam With 5-Bolt Hub, for 40" wide frame
Item No. 316850
Images
Smith Galvanized 54" Trailer Axle Beam With 5-Bolt Hub, for 40" wide frame
Details

Smith Galvanized 54" Trailer Axle Beam With 5-Bolt Hub, for 40" wide frame

Smith Galvanized 54" Trailer Axle Beam With 5-Bolt Hub, for 40" wide frame is rated 4.5 out of 5 by 2.
  • y_2019, m_2, d_16, h_19
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.11
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_2
  • loc_en_US, sid_316850, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_overtons
  • bvseo_sdk, dw_cartridge, 17.1.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 104ms
  • reviews, product
Item No. 316850
$142.49 $149.99
Product Actions

In Stock

Additional Information
Replace your trailer axles with this galvanized axle beam.

• 54" overall length
• For 40" wide trailer frame
• 49" hub face length
• Spring centers: 38.5"
• 1" dia. straight spindle
• Pre-assembled with 5 stud x 4.5" bolt circle hubs
• Pre-greased with quality lithium grease and 10 lug nuts
• 1800-lb. capacity
Show moreShow less
  • Replacement axle for 40" wide trailer frame
  • 54" long end-of-spindle to end-of-spindle
  • 1" diameter straight spindle
  • Pre-assembled with 5 stud hubs
  • 1800-lb. capacity
  • Smith Galvanized 54" Trailer Axle Beam With 5-Bolt Hub, for 40" wide frame is rated 4.5 out of 5 by 2.
    Rated 4 out of 5 by from Okay, but check the bearings The axle and hubs are fine. Bu the castle nuts that hold the bearings were much too tight, bearings overheated when I took it out for a test drive. They seem okay now after loosening the nuts to where they belong.
    Date published: 2018-09-18
    Rated 5 out of 5 by from great Had to drill different holes for spring holder bolts , however my trailer is way older .. so no problem . I am pretty sure this is under rated as to weight capabilities ... my old one was rated at 2000 + lbs and not nearly as heavy-duty, mine had smaller spindles , lighter bearings,lighter axle itself ... etc....... Great product..............
    Date published: 2017-07-14
    • y_2019, m_2, d_16, h_19
    • bvseo_bulk, prod_bvrr, vn_bulk_2.0.11
    • cp_1, bvpage1
    • co_hasreviews, tv_0, tr_2
    • loc_en_US, sid_316850, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
    • clientName_overtons
    • bvseo_sdk, dw_cartridge, 17.1.0, p_sdk_3.2.0
    • CLOUD, getContent, 234ms
    • reviews, product

    Does this fit the Ironton 40 x 48 Utility Trailer?

    Asked by: alex
    Please contact our Technical Team at 1-800-334-6541, with additional information.
    Answered by: Amanda
    Date published: 2018-05-11

    What size bearing buddys for this unit , thanks

    Asked by: loe
    1.98"
    Answered by: Product Specialist
    Date published: 2017-07-23

    It looks as though all the measurements are the same except the 5 stud x 4.5" bolt circle hubs. My Wave-On trailer is 5 bolt but has a 5.5 inch center hub if I am measuring it correctly. Will this axle fit the WaveOn Trailer?

    Asked by: Gater132
    I apologize but we do not have a way to cross reference your trailer. You may want to try and contact the manufacturer directly.
    Answered by: Product Specialist
    Date published: 2017-07-10

    Hi ... Do you sell the same axle, same dimensions.. only in a # 2500 capacity ??

    Asked by: loe
    I apologize but we do not carry one with that capacity.
    Answered by: Product Specialist
    Date published: 2017-07-13

    Does this come with hardware to mount on springs?

    Asked by: Seaswirl Trailer
    No. The Smith Galvanized 54" Trailer Axle Beam With 5-Bolt Hub, for 40" wide frame does not come with any mounting hardware.
    Answered by: Steve
    Date published: 2017-03-20

    would this work for my 2008 trailstar trailer for my Tracker deep V?

    Asked by: jb91
    No. The Smith Galvanized 54" Trailer Axle Beam With 5-Bolt Hub, for 40" wide frame will not fit on your Trailstar trailer.
    Answered by: Steve
    Date published: 2016-06-13

    What is the largest tire or rim size that would fit on these hubs?

    Asked by: kram55
    The appropriate tire and rim size for the Smith Galvanized 54" Trailer Axle Beam With 5-Bolt Hub, for 40" wide frame, are limited to the bolt pattern, axle size and trailer build. It is recommended to use a reasonable sized tire/wheel on the hub as long as the bolt pattern matches up and they have the fender and axle clearance.
    Answered by: Steve
    Date published: 2015-12-03

    How Much Does it weigh?

    Asked by: Jack
    The Smith Galvanized 54" Trailer Axle Beam with 5-Bolt Hubs weighs 31 pounds.
    Answered by: Steve
    Date published: 2015-11-11
