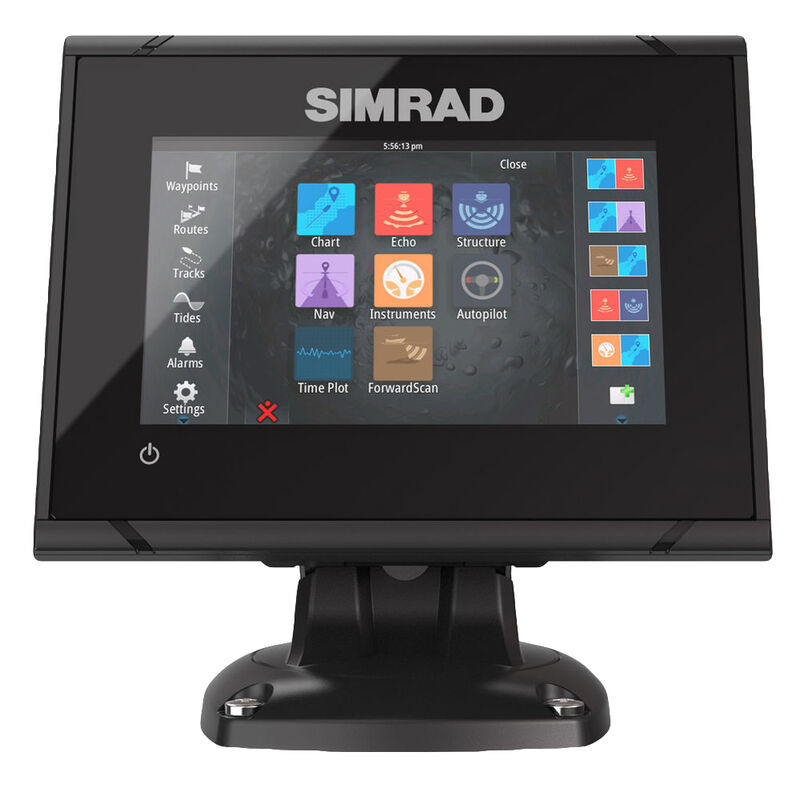

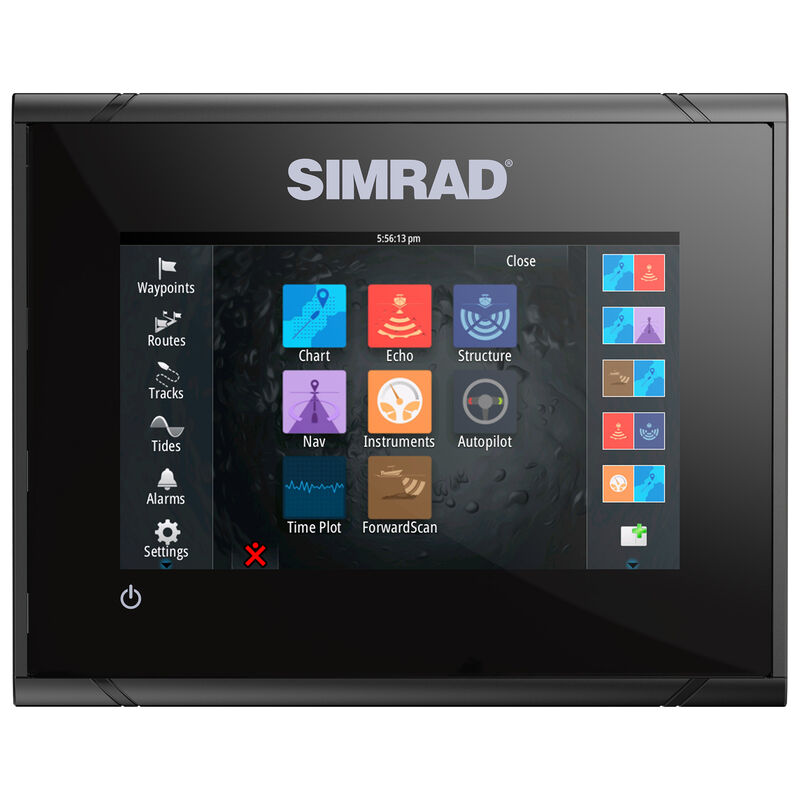

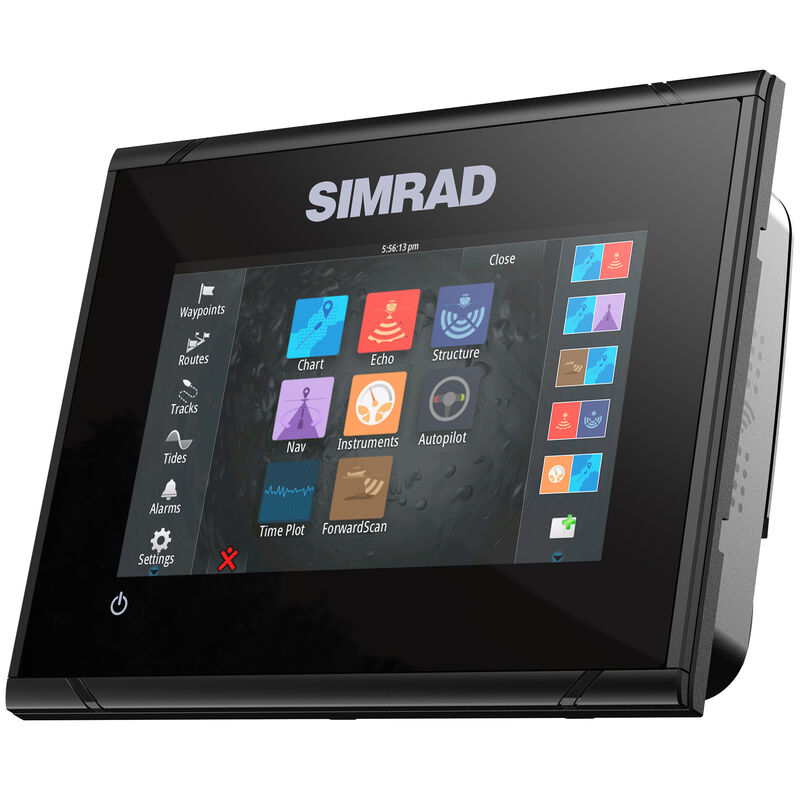

Simrad GO5 XSE Fishfinder Chartplotter With Basemap and TotalScan Transducer
Item No. 321832
Details

Simrad GO5 XSE Fishfinder Chartplotter With Basemap and TotalScan Transducer

Simrad GO5 XSE Fishfinder Chartplotter With Basemap and TotalScan Transducer is rated 2.6 out of 5 by 5.
  • y_2019, m_3, d_19, h_21
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.11
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_5
  • loc_en_US, sid_321832, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_overtons
  • bvseo_sdk, dw_cartridge, 17.1.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 94ms
  • reviews, product
Item No. 321832
$569.99
Product Actions

This item is excluded from all discounts and promotions.

In Stock

Additional Information
The Simrad GO5 XSE Fishfinder Chartplotter is a perfect fit for compact sportboats and dayboats. Behind its super-bright touchscreen lies a chartplotter with built-in GPS receiver and Wi-Fi access to the latest charts and updates. Control your onboard sound system, monitor engine data and more over NMEA 2000. Find fish like a pro with Broadband Sounder CHIRP sonar plus StructureScan HD SideScan and HDI DownScan Imaging.

• Easy-to-use multi-touch interface
• Full-featured chartplotter supports Insight, Navionics, and CMAP cartography
• Comes with worldwide basemap
• Plan smarter with TripIntel technology
• Support for Navionics Autorouting and Jeppesen Easy Routing charts
• 5" widescreen display with bright LED backlight

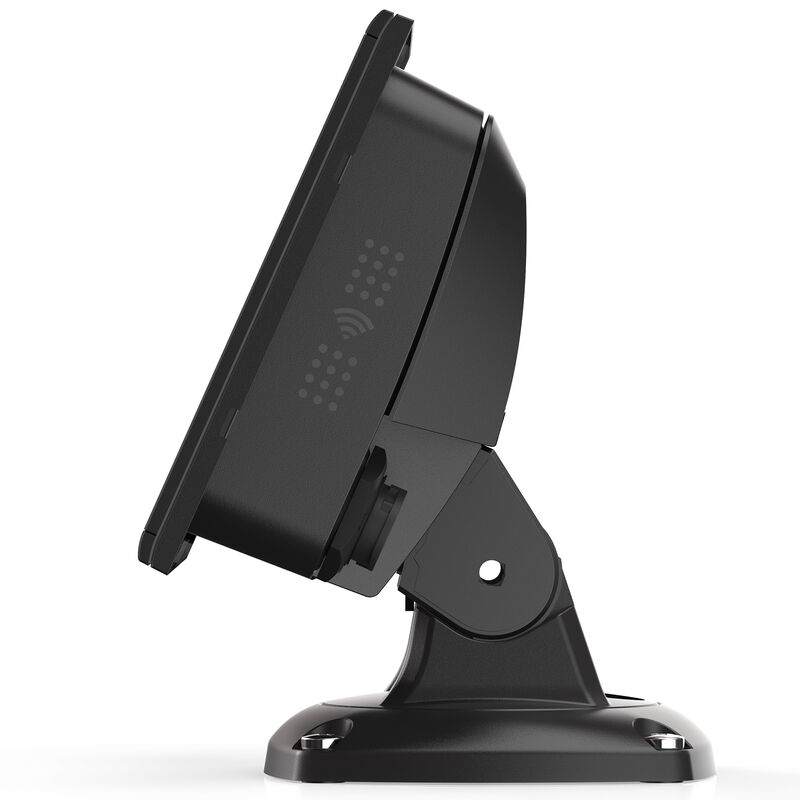

• Flush or bracket mount
• High-speed 10 Hz GPS receiver
• Includes TotalScan transducer for medium/high frequency CHIRP sonar and StructureScan HD imaging
• Built-in GoFree Wi-Fi
• NMEA 2000 compatible

Easy-To-Use Multi-Touch Display
The GO XSE offers true ease of use with intuitive touchscreen controls that smartphone and tablet users will find instantly familiar. Tap to create or select waypoints, pinch to zoom, or tap and drag to pan smoothly across charts. Simple home screen and menu layouts make all functions quickly accessible, with clearly captioned, large icons that are easy to recognize and tap.

Chartplotter Navigation And Waypoint Management
The GO XSE is a full-featured chartplotter, with support for the widest available range of cartography options including C-MAP MAX-N, Navionics, Insight, Insight Genesis, and NV Digital Charts. Navigate confidently to destinations near and far, with the flexibility to choose charts that best fit your needs and location. Set and record those destinations easily with simple waypoint management. Mark waypoints with a touch and assign meaningful names that make it easy to look up your desired destination whether you've mapped out ten places or a thousand.

Fully Customizable Interface
The Simrad GO XSE is fully customizable to suit your vessel and your favorite on-water activities, from power boating, to fishing, to water sports. Customize your home screen with shortcuts to the features you use most, and personalize it with your choice of wallpaper. Adjustable split-screen views and customizable panel layouts let you see everything you need on-screen at once, whatever your activity.

Plan Smarter with TripIntel Technology
Designed for power boaters, TripIntel technology tracks and displays the key information you need to plan safe and enjoyable days on the water. Make smart decisions with fuel range overlaid on charts, easy access to current and future tide levels, and a detailed history of your previous trips including the route you took and how your boat performed.

Built-In 10 Hz GPS Receiver
With a high-speed GPS receiver updating your position ten times every second, the Simrad GO XSE is ideal for use aboard fast-moving powerboats. Watch your boat's movement tracked smoothly, accurately, and in real-time, without "jumping" from point to point on the display.

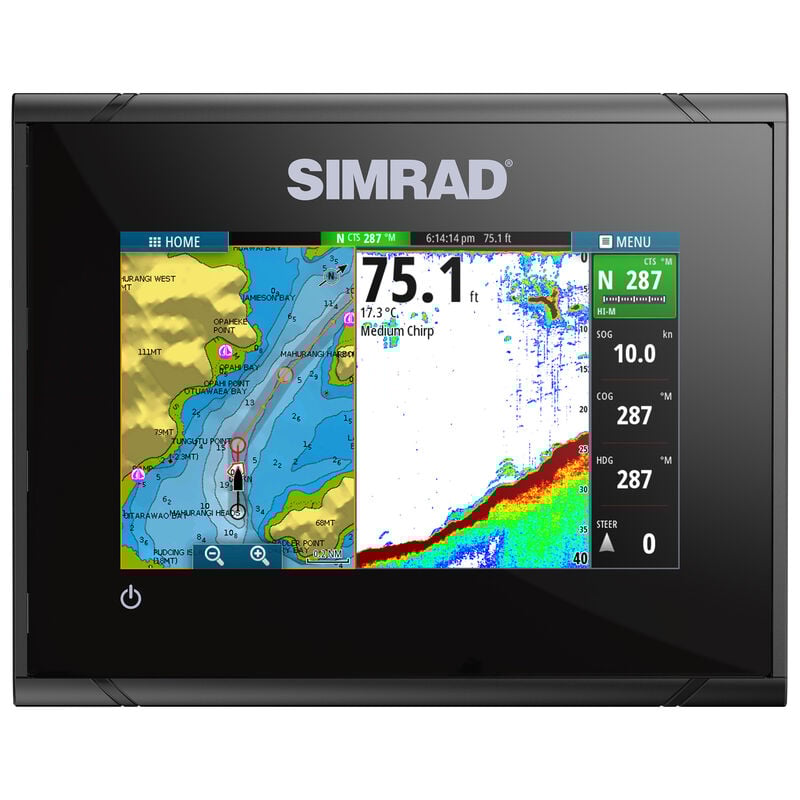

Cruise Charting View
Designed with power boating in mind, the Simrad GO XSE offers a unique Cruise Charting page that brings together crucial navigation data and charts in one easily readable display. Choose the information most relevant to your crusing style and on-water activities with the ability to edit on-screen data items.

NMEA 2000 Engine Monitoring And Instrumentation
The Simrad GO XSE connects to any NMEA 2000-capable equipment aboard your vessel including outboard and inboard engines; fuel level and flow meters; speed, heading, and water temperature sensors; and much more. Create your own custom digital instrument displays, bringing a wealth of information to even the most crowded dash while keeping a clean look with as few gauges as possible.

Watch Your Depth With Built-in Sonar
Knowing the true depth beneath your hull can help you enjoy your time on the water with fewer worries, and makes it easier to locate suitable anchorages in unfamiliar waters. A scrollable depth history view lets you track back and easily set waypoints for promising anchorages, while StructureScan Imaging combines DownScan and SideScan sonar to offer a picture-like view of the bottom beneath your vessel.

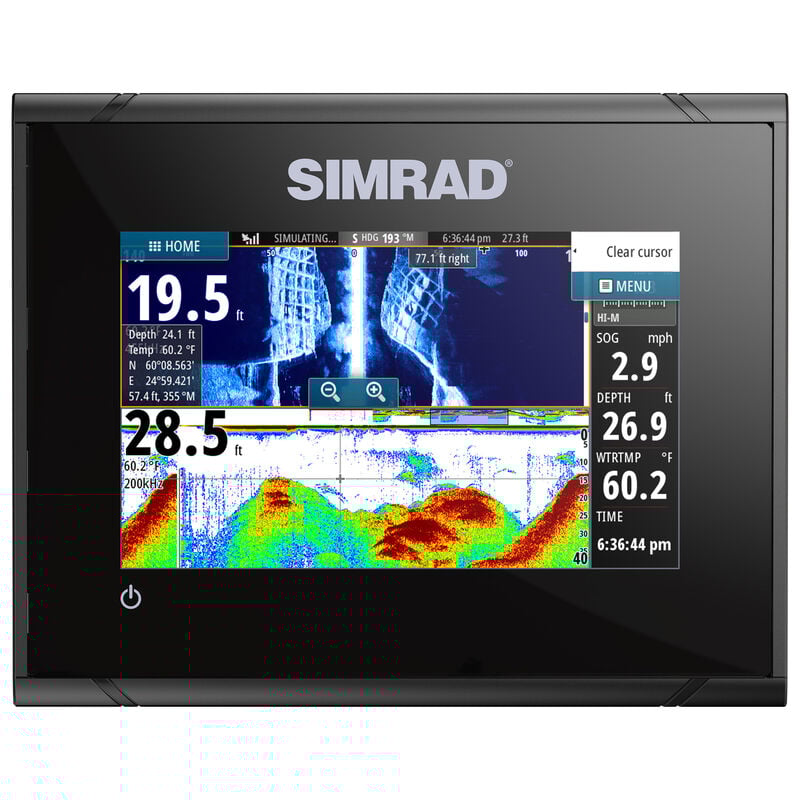

Find Fish With CHIRP And StructureScan HD SideScan Imaging
Whether fishing is your life or just a casual hobby, any fishing trip will benefit from the extensive array of built-in sonar technology on the Simrad GO XSE. This unit is bundled with the TotalScan Skimmer Medium/High 455/800 Transducer. This all-in-one transducer matches proven Broadband and CHIRP sonar with StructureScan HD and DownScan Imaging technology, making it possible to target fish and search for fish-holding structure with the same transducer. It supports 83/200kHz Broadband frequencies, Medium and High CHIRP frequencies, and 455/800kHz StructureScan frequencies.

GoFree Cloud-Enabled With Built-In Wi-Fi
With Wi-Fi built in, the Simrad GO XSE provides direct access to GoFree cloud services including easy wireless map downloads, software updates, and more. Whether hooked up to your home Wi-Fi with your boat trailered in the driveway, logged in to your marina's Wi-Fi, or tethered to your smartphone out on the lake, you can access GoFree cloud services anywhere you have an internet connection. On the water, GoFree connects the Simrad GO XSE to your mobile devices, mirroring your display screen on your smartphone or giving you full remote control from your tablet with the free GoFree Controller app.

GO5 XSE Specifications
• Display Type: WVGA Color TFT LCD
• Display Size: 5" widescreen
• Display Resolution: 800 x 480
• Backlighting Levels: LED / 1200 nits
• Waypoint Storage: 10,000 points combined waypoints/route points
• Memory Card Capable: One microSD card slot
• GPS Antenna: Built-In 10 Hz GPS
• Waterproof Standard: IPX7
• Dimensions: 5.98"W x 2.28"D x 4.72"H
• Weight: 1.8 lbs.
• Power Supply: 12V DC
• Power Consumption: 900 mA @ 13.5V
• Networking Connections: One NMEA 2000 Port
Show moreShow less
  • Easy-to-use multi-touch 5" display
  • Full-featured chartplotter with basemap
  • Built-in GoFree Wi-Fi
  • NMEA 2000 compatible
  • TotalScan Transducer w/StructureScan Imaging
  • Accepts Data Cards Yes
    Antenna Built-In 10 Hz GPS
    Dimensions 5.98"W x 2.28"D x 4.72"H
    Display Resolution 800 x 480
    Display Size 5" diag.
    Display Type LCD
    Included Cartography Worldwide Basemap
    Model Number GO5 XSE
    Network/Interface NMEA 2000
    Operating Frequency CHIRP 83/200/455/800 kHz
    Power Output 500 W
    Speed GPS Speed
    Temp Yes
    Transducer TotalScan Skimmer
    Waterproof Yes
    Unit Weight 6.54 lb
    Brand Simrad
    Simrad GO5 XSE Fishfinder Chartplotter With Basemap and TotalScan Transducer is rated 2.6 out of 5 by 5.
    Rated 2 out of 5 by from questionable... couldn't ever rely on the GO XSE unit. Screen issues week 1 that are still periodic. Bad when i NEED my radar. sometimes it just fades out like going into a nightime mode but to light to see the screen. Finder is great when its working. Maps are better on my old Garmin. 26 Albemarle.
    Date published: 2018-08-04
    Rated 4 out of 5 by from Good little unit. I've had both my 5 & 9 for over a year now and am very pleased with how it's worked out.I'd say it's user-friendly once you figure out where they hide things. I can't speak for the mapping or the transducer on the 5 as they are both on the 9 which are fantastic. As for the 5 I use it mainly for NMEA 2K and love the ability to change how things are configured and letting me change what data I have and where on the screen. I would've liked it more if the WIFI was unlocked to let you have the 2 units talk with each other better. They transfer data fine between the 2K port but would have the ability to wirelessly transfer/mirror screens between them if they'd let you. That way I wouldn't need to cough up the coin to have 2 Navionics chips if I wanted to see the map on one and have a full-screen sonar.
    Date published: 2018-03-28
    Rated 5 out of 5 by from Very easy to use I have had mine for one year and it works great. Easy to use and many features.
    Date published: 2017-12-03
    Rated 1 out of 5 by from Not recommended! The functionality is greatly misrepresented in all of the materials. Calls to their technical support line go nowhere. I purchased the unit, expecting it to have depth shading, as shown in all of the promotional materials and in the unit's manual (which I downloaded and studied before making the purchase). Now I'm told the shading is only a function with particular charts. That information was not shared on their page that sold my chart chip. Poor experience all the way around. Don't believe what you read in their materials.
    Date published: 2017-10-04
    Rated 1 out of 5 by from map sucks when you pan in to see where you are going on a river it just a bunch of squares and triangles, useless!!!! well not show a river at all.
    Date published: 2017-08-26
