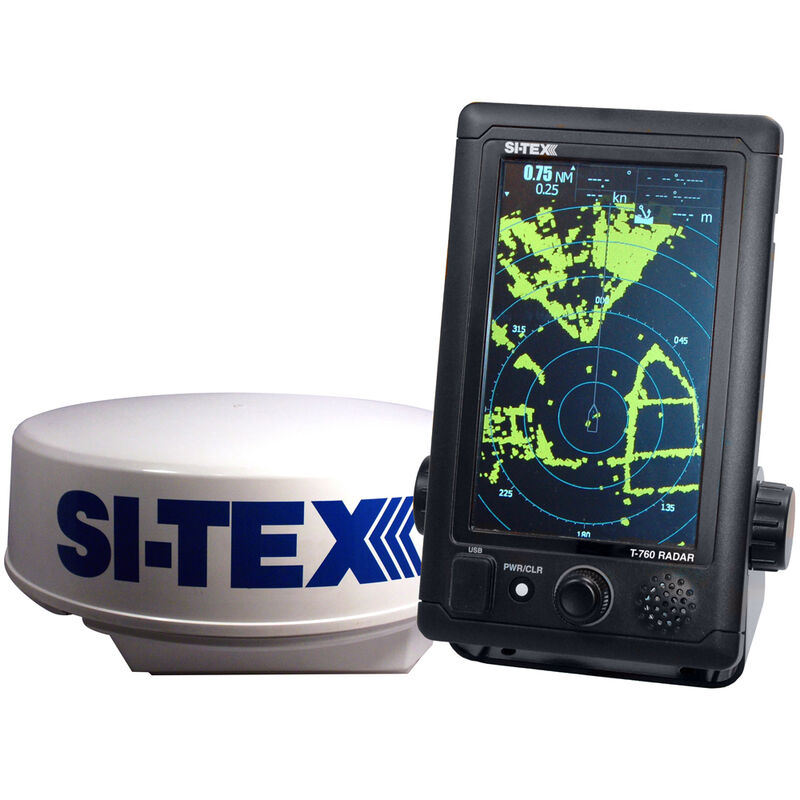

Si-Tex T-760 Compact Color Radar With 4kW 18" Dome

Item #: 330478
4.4 out of 5 Customer Rating
Additional Freight charge of null applies

Si-Tex T-760 Compact Color Radar With 4kW 18" Dome
Si-Tex T-760 Compact Color Radar With 4kW 18" Dome
Ship to Home
Delivery time calculated in checkout Delivery time calculated in checkout
Order Pickup
Not Available

FREE Standard Shipping over $99.

Good Sam Members: FREE Shipping over $69

This item is excluded from all discounts and promotions.

  • This item is currently not available
Minimum order quantity of 1
Maximum order quantity of 100
Shipping Restrictions
This item cannot be shipped internationally.
Big radar performance and features are available for any size boat - and budget with the Si-Tex T-760. A vertically oriented, slim case boasts advanced touchscreen technology and a host of professional features. Powerful 4kW output ensures superior target acquisition and tracking in the the most challenging conditions.

The T-760 Series case measures only 5.4"W X 8.9"H X 3.5"D. Yet this system boasts a long list of professional-grade features, including powerful 4kW output, up to 24nm range, multi-speed antenna rotation, standard 50-target AIS tracking capability, and standard 10-target MARPA. Control of these features is achieved via the T-760's touchscreen LCD screen and single rotary encoder dial for simple, intuitive operation. The series includes the T-760, equipped with an 18" compact radome antenna for solid performance in a wide range of conditions and range scale choices from 1/8th nm to 24nm. Also offers multi-speed antenna rotation (16/27/36/48rpm) for optimum target detection and tracking over a range of boat speeds.

Among many other notable standard features of the T-760 Series are Relative Motion, True Motion, North-Up, Heads-Up, and Course-Up presentation modes, Auto or Manual Sea/Rain Clutter modes, 11 Trail Indication settings (including Off and Continuous), and more. With input from a Si-Tex Metadata AIS module (or other AIS receiver), the T-760 Series can track up to 50 AIS targets simultaneously for enhanced navigational safety in crowded waterways. With input of bearing, ship's speed, and lat/lon data, the T-760 Series empowers navigators with professional MARPA tracking of up to 10 targets at distances up to 20nm.

In the Si-Tex tradition, the T-760 Series radar is ruggedly built to withstand harsh conditions at sea on commercial or recreational vessels. Two-year warranty.

• 7" color LCD screen
• Intuitive touchscreen/rotary dial control
• Standard 50 target AIS tracking
• Standard 10 target MARPA
• Multi-speed (16-48 rpm) antenna rotation for optimum performance in real-world conditions
• Features include Relative Motion/True Motion/Heads-Up/North-Up
• Optional color RGB video output
  • Advanced touchscreen technology
  • Superior target tracking in any condition
  • Simple, intuitive operation
  • Multi-speed antenna rotation
5.4"W x 8.9"H x 3.5"D
Display Size
7" diag.
Display Type
Manufacturer Warranty
2 Year
Power Output
{ "unit": "KILOWATT", "amount": "4.0000", "family": "Power", "base_data": "4000.0000", "base_unit": "WATT" }
Unit Weight
27.80 lb
MFG Part No.
