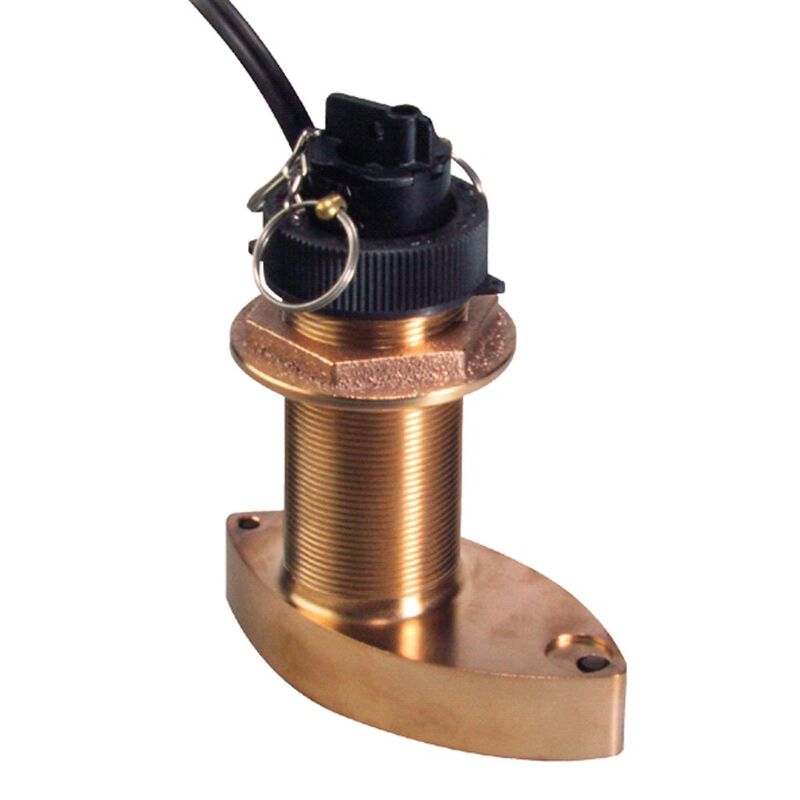

Si-Tex B744V Thru-Hull Triducer
$294.49
Ship to Home
Delivery time calculated in checkout
Delivery time calculated in checkout
- This item is currently not available
Free Standard Shipping
This item is excluded from all discounts and promotions.
Minimum order quantity of
1
Maximum order quantity of
100
Must purchase in increments of
1
Return Policy
We believe in offering the very best value, quality, and selection. Plus, we want you to enjoy your purchase! In the event you wish to send a product back to us, you may return most unused items for a refund or exchange, minus shipping, within 90 days from the date of purchase unless noted below under exceptions and exclusions. Refunds are issued to the original form of payment.
Features
The B744V Triducer Multisensor provides you with depth, speed, and temperature in one thru-hull housing. This unit is ideal for all 600-watt fishfinders and requires only a single hole in the hull. The B744V's valve assembly prevents water from rushing into the hull when the insert is removed for cleaning or storage. The innovative housing design allows the triducer multisensor to be fully recessed into its custom high-performance fairing. The end result is a streamlined installation. At speeds above 30 knots (34 MPH), the B744V will produce clear images and solid bottom tracking.
Transducer Features:
• Thru-Hull Bronze Housing
• Frequency: 50/200 kHz
• Cone: 45°/12°
• Maximum depth range: 50 kHz - 800' to 1,200'; 200 kHz - 400' to 700'
• Greatly improved high-speed performance at both 50 kHz and 200 kHz when installed with a high-performance fairing
• Self-closing sea valve reduces water flow into the hull when paddlewheel insert is removed
• Speed Operating Range: 1 knot to 45 knots (1 MPH to 52 MPH)
• The extra length of the B744VL allows mounting into thicker and/or high deadrise hulls
• Boat Size: Over 30' long
• Fins on sides of paddlewheel cavity improve accuracy at low speeds and in cross-flow conditions
• Valve assembly is replaceable
• Airmar's fairings are easy to cut and will not swell or rot
• 8 pin connector
• Shielding eliminates interference between the speed and depth sensors for more accurate instrument readings
Fishing Applications:
• Inshore or coastal fishing in shallow to medium depths
• Slow trolling, structure fishing, and drifting
• Deep water lake fishing
Transducer Features:
• Thru-Hull Bronze Housing
• Frequency: 50/200 kHz
• Cone: 45°/12°
• Maximum depth range: 50 kHz - 800' to 1,200'; 200 kHz - 400' to 700'
• Greatly improved high-speed performance at both 50 kHz and 200 kHz when installed with a high-performance fairing
• Self-closing sea valve reduces water flow into the hull when paddlewheel insert is removed
• Speed Operating Range: 1 knot to 45 knots (1 MPH to 52 MPH)
• The extra length of the B744VL allows mounting into thicker and/or high deadrise hulls
• Boat Size: Over 30' long
• Fins on sides of paddlewheel cavity improve accuracy at low speeds and in cross-flow conditions
• Valve assembly is replaceable
• Airmar's fairings are easy to cut and will not swell or rot
• 8 pin connector
• Shielding eliminates interference between the speed and depth sensors for more accurate instrument readings
Fishing Applications:
• Inshore or coastal fishing in shallow to medium depths
• Slow trolling, structure fishing, and drifting
• Deep water lake fishing
- Dual frequency transducer
- Innovative housing design
- Produces clear images at high speeds
- For boats over 30' long
Specs
Beam @ 200kHz (degree)
12
Beam @ 50kHz (degree)
45
Max. Depth @ 200/50kHz
1200.00 ft
Model Number
B744V
Mount
Thru-Hull
Power
600 Watts
Unit Weight
7.50 lb
Brand
Si-Tex
MFG Part No.
48869
