Ritchie Explorer V-57 Dash-Mount Compass
Item No. 314456
Images

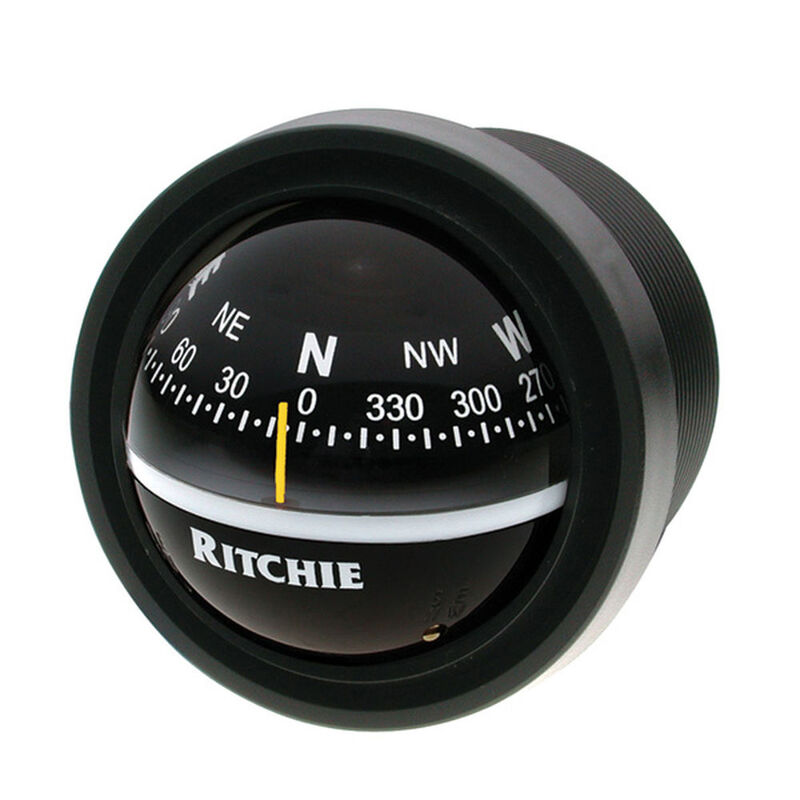

Ritchie Explorer V-57 Dash-Mount Compass
Details

Ritchie Explorer V-57 Dash-Mount Compass

Ritchie Explorer V-57 Dash-Mount Compass is rated 3.7 out of 5 by 3.
  • y_2019, m_3, d_23, h_20
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.11
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_3
  • loc_en_US, sid_314456, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_overtons
  • bvseo_sdk, dw_cartridge, 17.1.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 83ms
  • reviews, product
Item No. 314456
$66.49 $69.99
Product Actions

In Stock

Additional Information
Designed specifically for runabouts, small center consoles, and bass boats, the Ritchie Explorer V-57 Compass is easily installed in a 3" dia. instrument hole. The Ritchie Explorer Dash-Mount Compass allows you to adjust up to 30° for viewing. Features a 2-3/4" direct-reading dial, 12-volt night illumination, built-in compensators to easily adjust for deviation, and scientifically matched sapphire jewel and hardened steel pivot dial movement. Outside dimensions: 3-3/8" dia. Exclusive 5-year Ritchie warranty.

• Overall 3-3/8" dia. 3-9/16"D
• Requires 3" mounting hole
• Protrudes 1-13/16" from dash
Show moreShow less
  • 2-3/4" easy-to-read direct-reading dial
  • 12-volt night illumination
  • Viewing is adjustable to 30°
  • Built-in compensators
  • Requires 3" dia. mounting hole
  • Unit Weight 0.95 lb
    Brand Ritchie
    Ritchie Explorer V-57 Dash-Mount Compass is rated 3.7 out of 5 by 3.
    Rated 1 out of 5 by from Quality I installed this compass last summer and noticed today that all the oil has leaked out of the compass. Not sure what to do next, I hope the warranty will cover it. Other than that the install and initial performance was good....
    Date published: 2017-02-11
    Rated 5 out of 5 by from nice Bought this because the one in my Sea Ray stopped working. It looks like it belongs in the instrument cluster and is better quality than the original. Good product for a good price.
    Date published: 2013-04-19
    Rated 5 out of 5 by from Nice compass Nice compass
    Date published: 2012-01-14
    • y_2019, m_3, d_23, h_20
    • bvseo_bulk, prod_bvrr, vn_bulk_2.0.11
    • cp_1, bvpage1
    • co_hasreviews, tv_0, tr_3
    • loc_en_US, sid_314456, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
    • clientName_overtons
    • bvseo_sdk, dw_cartridge, 17.1.0, p_sdk_3.2.0
    • CLOUD, getContent, 241ms
    • reviews, product

    Outside dimensions .... is that the outside face of the compass ? I would like to know the dimension necessary for the hole in my console for the "back" of the compass to slide in to. thank you. k.c. note: my existing hole is about 3 5/16 " but there i...

    Outside dimensions .... is that the outside face of the compass ? I would like to know the dimension necessary for the hole in my console for the "back" of the compass to slide in to. thank you. k.c. note: my existing hole is about 3 5/16 " but there is a blank so I guess I could put the blank back in and cut a new hole. I wonder if there are rings that can slide on from the back to compensate a larger hole? I don't see any screw holes , is there some sort of "nut" that tightens on threads. thanks again. These questions are for the V-57 dash mount compass, but would consider others if you have suggestions.
    Asked by: "I hate Alabama Football"
    http://www.ritchienavigation.com/catalog/product.jsp?id=V-57.2&pid=F4B45DB6-463D-11D8-9596-8E275C29E105&pgid=FD93C264-47C8-11D8-885F-C92F268E72FD
    Answered by: Justin M.
    Date published: 2016-05-29

    I need to know the demension from bezel to back of this gauge since i am limited on depth the 3 3/8 diameter is no problem

    Asked by: Anonymous
    1-3/4" is the dimension from the bezel to the back of the compass. Here is a link for this compass! http://www.ritchienavigation.com/catalog/product.jsp?id=V-57.2&pid=F4B45DB6-463D-11D8-9596-8E275C29E105&pgid=FD93C264-47C8-11D8-885F-C92F268E72FD
    Answered by: Justin
    Date published: 2015-09-23
