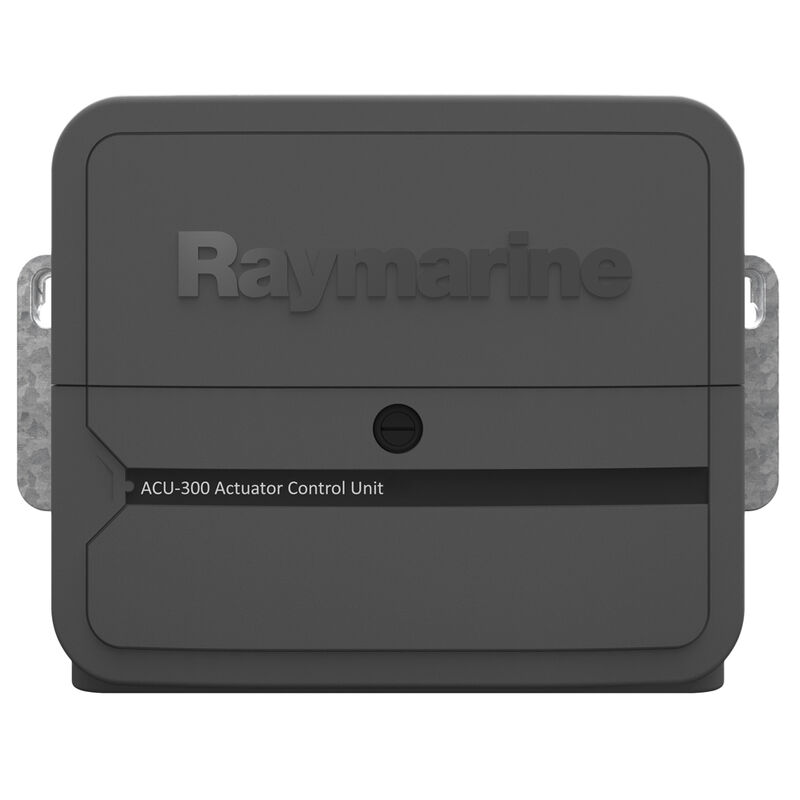

Raymarine ACU-300 Actuator Control Unit
Sale
$1,724.99
$1,899.99
Save
$175.00
(9% Off)


Ship to Home
Delivery time calculated in checkout
Delivery calculated in checkout
FREE Standard Shipping over $99.
Good Sam Members: FREE Shipping over $69
This item is excluded from all discounts and promotions.
- In Stock
Minimum order quantity of
1
Maximum order quantity of
100
Features
The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Maximum continuous 5 amps at supply voltage. No clutch connection. Drip-resistant construction. 11.2" x 8.3" x 2.5".
Nominal supply voltage: 12V or 24V
Operating voltage range: 10.8V to 31.2V DC
Power Consumption (standby) - Main Power Supply: 300 mA (12/24V)
Power Consumption (standby) - SeaTalkng Power Supply: 20 mA (12V)
SeaTalkng LEN (Load Equivalency Number): 1
SeaTalkng Power Out: 3 amps at 12V (fuse protected at 3 amps)
Data Connections: SeaTalkng
Installation Environment:
• Operating Temperature: -20°C to +55°C (-4°F to +131°F)
• Storage Temperature: -30°C to +70°C (-22°F to +158°F)
• Relative Humidity: MAX 93%
Nominal supply voltage: 12V or 24V
Operating voltage range: 10.8V to 31.2V DC
Power Consumption (standby) - Main Power Supply: 300 mA (12/24V)
Power Consumption (standby) - SeaTalkng Power Supply: 20 mA (12V)
SeaTalkng LEN (Load Equivalency Number): 1
SeaTalkng Power Out: 3 amps at 12V (fuse protected at 3 amps)
Data Connections: SeaTalkng
Installation Environment:
• Operating Temperature: -20°C to +55°C (-4°F to +131°F)
• Storage Temperature: -30°C to +70°C (-22°F to +158°F)
• Relative Humidity: MAX 93%
- Delivers reliable autopilot drive power
- 12V / 24V nominal supply voltage
- 5 amps maximum at supply voltage
- SeaTalkng data connection
Specs
Unit Weight
7.20 lb
Brand
Raymarine
MFG Part No.
49110
