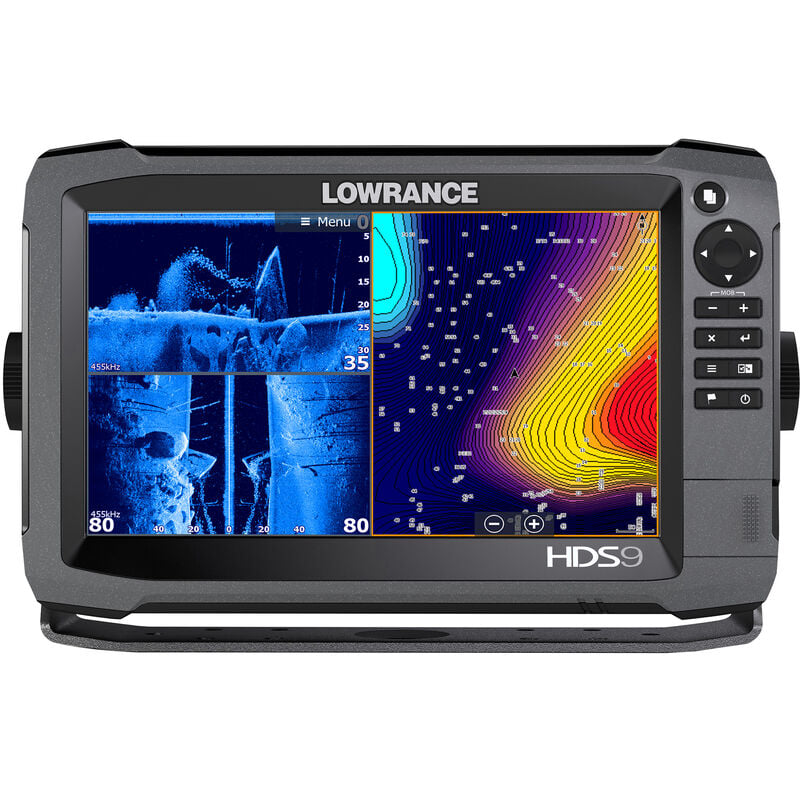

Lowrance HDS-9 Gen3 Fishfinder Chartplotter w/TotalScan Transducer
$2,184.99
FREE Shipping
Estimated delivery in 5-7 days
Estimated delivery in 5-7 days
- This item is currently not available
- Delivery to Change Address
- Delivery Fee Details
This item is excluded from all discounts and promotions.
Minimum order quantity of
1
Maximum order quantity of
100
Must purchase in increments of
1
Return Policy
We believe in offering the very best value, quality, and selection. Plus, we want you to enjoy your purchase! In the event you wish to send a product back to us, you may return most unused items for a refund or exchange, minus shipping, within 90 days from the date of purchase unless noted below under exceptions and exclusions. Refunds are issued to the original form of payment.
Features
Step up to tournament-level fish-finding performance with the Lowrance HDS Gen3 Fishfinder Chartplotter. The most popular fishfinder chartplotter for professional anglers on the BASS and FLW tours, the HDS Gen3 displays everything from the smallest piece of cover to fish holding tight to the bottom. The HDS Gen3 offers an updated user interface that's easy to use and provides premium screen clarity with excellent target separation. HDS Gen3 units feature full operation via an intuitive multi-touch touchscreen with pinch-to-zoom and grab-and-drag functionality or a full keypad, giving anglers reliable control in all weather conditions.
Superior Target Separation On Extremely Bright Displays
Running CHIRP sonar alongside StructureScan with SideScan and DownScan Imaging, HDS Gen3 gives anglers a complete underwater view of fish and bait location, structure, cover, and bottom contours. StructureScan HD displays picture-like 180° images of underwater terrain with enhanced SideScan performance out to 300' on both sides of the boat.
HDS Gen3 displays improve clarity and light transmission for the best viewing, even in direct sunlight. Small, fine details can be seen with more depth and contrast for the clearest presentation of charts, menu, and sonar. With up to four panels displayed side-by-side, anglers will have all the information they need to put more fish in the boat.
Powerful Performance And Total Boat Control
The HDS Gen3 processor is fast enough to drive the latest sonar technology and the built-in Insight USA mapping, plus HDS Gen3 gives anglers a multitude of mapping upgrade options, including C-MAP, Navionics, and more. Integrated wireless connectivity allows anglers to focus more on fishing with SmartSteer control of the Lowrance outboard and MotorGuide Xi5 trolling motor autopilots, plus control of Power-Pole shallow water anchors, allowing anglers to steer their boat and drop anchor from the touchscreen of their HDS Gen3 display.
LOWRANCE HDS GEN3 NAVIGATION ADVANTAGES
Internal GPS Antenna - 10Hz position update rate provides ultra-accurate trails, smoother chart performance, and maximum position accuracy. Supports WAAS/EGNOS/MSAS corrections.
Extensive Mapping Options - The HDS GEN3 comes with built-in Insight USA basemap charts for Coastal and Inland US waters, a world background reference map, and compatibility with the most expansive selection of cartography on the market, including Insight Genesis, Insight PRO by C-MAP, Lake Insight HD by C-MAP, C-MAP MAX-N+, Navionics, and more.
Dual microSD Card Slots
LOWRANCE HDS GEN3 SONAR ADVANTAGES
Built-In CHIRP Sonar - Dominate with greater sensitivity, improved target resolution, and superior noise rejection for clearer, easy-to-see bait fish and game fish targets. Delivers multiple CHIRP and Broadband Sounder frequencies from a single transducer.
Dual-Channel CHIRP Sonar - Increases visible fish targets with two CHIRP frequency channels (medium or high) at the same time. Keep favorite high CHIRP frequency visible for increased target separation close to the bottom or in tight schools, while at the same time viewing the low frequency channel to see more of the water column with wider and deeper cone angles.
Simultaneously View CHIRP Sonar with StructureScan HD - To get the best possible view of fish and structure, below and to the sides of your boat.
Built-In Support for StructureScan HD Imaging - Enjoy picture-like, 180° views of structure and fish below your boat.
Built-In, Award-Winning Broadband Sounder - Display and mark gamefish, baitfish, and structure at higher speeds and at greater depths, down to more than 1,000 ft.
TotalScan Skimmer Transducer - The all-in-one TotalScan Skimmer Transducer receives Broadband and CHIRP sonar, plus StructureScan HD with SideScan and DownScan Imaging, making it possible to target fish and search for fish-holding structure with the same transducer. This transducer simplifies installations by allowing anglers to get all their sonar with only one transducer to install.
StructureMap Capability - Use live or recorded StructureScan HD logs to create stunning underwater images of lakes, rivers, or the sea floor. StructureMap can be viewed as an overlay and toggled on and off to provide the ultimate in situational awareness in relation to both chart and bottom detail.
DownScan Overlay Technology - Overlays DownScan Imaging onto CHIRP Sonar or Broadband Sounder returns.
TrackBack - To review and save key hot spots. Scroll back through sonar or StructureScan HD imaging history to review structure or fish targets and pinpoint the location with a waypoint.
KEY FEATURES
Easy-To-See, LED-Backlit, Multi-Touch, SolarMAX HD Display - SolarMAX HD touchscreens produce wider viewing angles from anywhere in sight. Using a unique balance of high-bright LED backlight and advanced anti-reflective coatings along with superior color accuracy and a boosted high-resolution viewing panel, a wider operating temperature range, and added moisture-proof optical layers produce clear visibility in any lighting situation.
Simple To Use - Unique Lowrance interface features quick-response touchscreen or keypad control, intuitive software, and protective coatings to deliver performance in the most rugged on-the-water conditions. Lightning-fast, fingertip access to all HDS features.
Quickly Make Adjustments - HDS has a high-performance processor that produces lightning quick redraw speeds and faster sonar updates. It easily powers the intuitive user-interface including scrolling menus, cursor assist, snap-to setting markers, and innovative preview panes with quick-touch slider bars.
Stay Connected - Integrated wireless connectivity with the Lowrance GoFree App and other onboard devices allows you to download software updates and map purchases for immediate use. You can also view and control the display wirelessly using supported tablets and smartphones.
Network All Components - Plug-and-play compatibility with Lowrance performance modules, including Broadband Radar, SonicHub2 Marine Audio, SiriusXM Marine Weather and audio, and Class B AIS and DSC VHF. Also compatible with industry-leading technologies, like Mercury VesselView Link, Bluetooth control of Power-Pole shallow water anchors equipped with the C-Monster Control System, and the SmartSteer interface, featuring control of MotorGuide Xi5 trolling motor and the Lowrance Outboard Pilot.
Wireless Diagnostic Tools - The Network Analyzer detects devices with out-of-date software, while the Service Assistant allows users to send a detailed report of networked devices to Navico Service for quicker resolution of software/technical issues.
Dual Ethernet Networking Port
Micro-C Connection For NMEA 2000 Devices
HDS-9 GEN3 SPECIFICATIONS
Overview
• Display: 9" diag.
• Resolution: 800 x 480
• LED Backlighting with Adjustable Display and Keypad
• Power Output: 500W RMS
• Media Port: Dual microSD card slots
• GPS and Sonar Overlay Data
• Split Screen Presentation
Sonar
• Depth Alarm
• Shallow Alarm
• Standard Fishfinding Features Like Colorline or Grayline, ASP, FishSymbol I.D., FishTrack, and More
• Temperature Readings
• EchoSounder Frequencies:
455/800 kHz (StructureScan HD)
85-145 kHz, 130-210 kHz (CHIRP)
83 kHz/200 kHz (Narrow Band)
• Max Sonar Depth: 1,000 ft.
Networking
• NMEA 2000 Connectivity: 1 x Micro-C
• NMEA Output: NMEA 0183 and NMEA 2000
• Power and Video: Red 10-Pin Power Connector
• Transducer Port 1: Blue 7-Pin Connector for Broadband and CHIRP Sonar
• Transducer Port 2: Black 9-Pin Connector for Use with StructureScan Transducers
• Two Ethernet Ports
• Integrated Bluetooth Wireless Connectivity
Technical/Environmental
• Operating Temperature: 5°F to 131°F (-15°C to 55°C )
• Product Width: 10.43" (265 mm)
• Product Depth: 3.47" (88 mm)
• Product Height: 6.65" (169 mm)
• Power Supply (Supply Voltage): 12V DC (10.8-17V DC min-max)
GPS Navigation
• Routes: 100
• Waypoint Storage: 3000
• Man Overboard Feature
• Plot Trails: Up to 100 Trails With Up to 10,000 Points / Trail
• GPS Alarms
• Background Mapping: Includes Built-in Insight USA Charts for US Waters and World Reference Background Map
TOTAL SCAN SKIMMER TRANSDUCER SPECIFICATIONS
• 83/200 kHz Broadband Sonar Frequencies
• Medium and High CHIRP Frequencies
• 455/800 kHz StructureScan Frequencies
CHIRP Sonar
• Max Depth: 1000' at High (200 kHz)
• Max Speed: 55 mph
SideScan Imaging
• Max. Range: 600' (300' to each side) at 455 kHz / 200' (100' to each side) at 800 kHz
• Max Speed: 35 mph
• Mark Objects: 15 mph
• Optimum Speed: 10 mph
DownScan Imaging
• Max Depth: 300'
• Max Speed: 55 mph
• Mark Objects: 35 mph
• Optimum Speed: 10 mph
Technical
• Width: 2.3"
• Length: 10.2"
• Cable: 24'
Superior Target Separation On Extremely Bright Displays
Running CHIRP sonar alongside StructureScan with SideScan and DownScan Imaging, HDS Gen3 gives anglers a complete underwater view of fish and bait location, structure, cover, and bottom contours. StructureScan HD displays picture-like 180° images of underwater terrain with enhanced SideScan performance out to 300' on both sides of the boat.
HDS Gen3 displays improve clarity and light transmission for the best viewing, even in direct sunlight. Small, fine details can be seen with more depth and contrast for the clearest presentation of charts, menu, and sonar. With up to four panels displayed side-by-side, anglers will have all the information they need to put more fish in the boat.
Powerful Performance And Total Boat Control
The HDS Gen3 processor is fast enough to drive the latest sonar technology and the built-in Insight USA mapping, plus HDS Gen3 gives anglers a multitude of mapping upgrade options, including C-MAP, Navionics, and more. Integrated wireless connectivity allows anglers to focus more on fishing with SmartSteer control of the Lowrance outboard and MotorGuide Xi5 trolling motor autopilots, plus control of Power-Pole shallow water anchors, allowing anglers to steer their boat and drop anchor from the touchscreen of their HDS Gen3 display.
LOWRANCE HDS GEN3 NAVIGATION ADVANTAGES
Internal GPS Antenna - 10Hz position update rate provides ultra-accurate trails, smoother chart performance, and maximum position accuracy. Supports WAAS/EGNOS/MSAS corrections.
Extensive Mapping Options - The HDS GEN3 comes with built-in Insight USA basemap charts for Coastal and Inland US waters, a world background reference map, and compatibility with the most expansive selection of cartography on the market, including Insight Genesis, Insight PRO by C-MAP, Lake Insight HD by C-MAP, C-MAP MAX-N+, Navionics, and more.
Dual microSD Card Slots
LOWRANCE HDS GEN3 SONAR ADVANTAGES
Built-In CHIRP Sonar - Dominate with greater sensitivity, improved target resolution, and superior noise rejection for clearer, easy-to-see bait fish and game fish targets. Delivers multiple CHIRP and Broadband Sounder frequencies from a single transducer.
Dual-Channel CHIRP Sonar - Increases visible fish targets with two CHIRP frequency channels (medium or high) at the same time. Keep favorite high CHIRP frequency visible for increased target separation close to the bottom or in tight schools, while at the same time viewing the low frequency channel to see more of the water column with wider and deeper cone angles.
Simultaneously View CHIRP Sonar with StructureScan HD - To get the best possible view of fish and structure, below and to the sides of your boat.
Built-In Support for StructureScan HD Imaging - Enjoy picture-like, 180° views of structure and fish below your boat.
Built-In, Award-Winning Broadband Sounder - Display and mark gamefish, baitfish, and structure at higher speeds and at greater depths, down to more than 1,000 ft.
TotalScan Skimmer Transducer - The all-in-one TotalScan Skimmer Transducer receives Broadband and CHIRP sonar, plus StructureScan HD with SideScan and DownScan Imaging, making it possible to target fish and search for fish-holding structure with the same transducer. This transducer simplifies installations by allowing anglers to get all their sonar with only one transducer to install.
StructureMap Capability - Use live or recorded StructureScan HD logs to create stunning underwater images of lakes, rivers, or the sea floor. StructureMap can be viewed as an overlay and toggled on and off to provide the ultimate in situational awareness in relation to both chart and bottom detail.
DownScan Overlay Technology - Overlays DownScan Imaging onto CHIRP Sonar or Broadband Sounder returns.
TrackBack - To review and save key hot spots. Scroll back through sonar or StructureScan HD imaging history to review structure or fish targets and pinpoint the location with a waypoint.
KEY FEATURES
Easy-To-See, LED-Backlit, Multi-Touch, SolarMAX HD Display - SolarMAX HD touchscreens produce wider viewing angles from anywhere in sight. Using a unique balance of high-bright LED backlight and advanced anti-reflective coatings along with superior color accuracy and a boosted high-resolution viewing panel, a wider operating temperature range, and added moisture-proof optical layers produce clear visibility in any lighting situation.
Simple To Use - Unique Lowrance interface features quick-response touchscreen or keypad control, intuitive software, and protective coatings to deliver performance in the most rugged on-the-water conditions. Lightning-fast, fingertip access to all HDS features.
Quickly Make Adjustments - HDS has a high-performance processor that produces lightning quick redraw speeds and faster sonar updates. It easily powers the intuitive user-interface including scrolling menus, cursor assist, snap-to setting markers, and innovative preview panes with quick-touch slider bars.
Stay Connected - Integrated wireless connectivity with the Lowrance GoFree App and other onboard devices allows you to download software updates and map purchases for immediate use. You can also view and control the display wirelessly using supported tablets and smartphones.
Network All Components - Plug-and-play compatibility with Lowrance performance modules, including Broadband Radar, SonicHub2 Marine Audio, SiriusXM Marine Weather and audio, and Class B AIS and DSC VHF. Also compatible with industry-leading technologies, like Mercury VesselView Link, Bluetooth control of Power-Pole shallow water anchors equipped with the C-Monster Control System, and the SmartSteer interface, featuring control of MotorGuide Xi5 trolling motor and the Lowrance Outboard Pilot.
Wireless Diagnostic Tools - The Network Analyzer detects devices with out-of-date software, while the Service Assistant allows users to send a detailed report of networked devices to Navico Service for quicker resolution of software/technical issues.
Dual Ethernet Networking Port
Micro-C Connection For NMEA 2000 Devices
HDS-9 GEN3 SPECIFICATIONS
Overview
• Display: 9" diag.
• Resolution: 800 x 480
• LED Backlighting with Adjustable Display and Keypad
• Power Output: 500W RMS
• Media Port: Dual microSD card slots
• GPS and Sonar Overlay Data
• Split Screen Presentation
Sonar
• Depth Alarm
• Shallow Alarm
• Standard Fishfinding Features Like Colorline or Grayline, ASP, FishSymbol I.D., FishTrack, and More
• Temperature Readings
• EchoSounder Frequencies:
455/800 kHz (StructureScan HD)
85-145 kHz, 130-210 kHz (CHIRP)
83 kHz/200 kHz (Narrow Band)
• Max Sonar Depth: 1,000 ft.
Networking
• NMEA 2000 Connectivity: 1 x Micro-C
• NMEA Output: NMEA 0183 and NMEA 2000
• Power and Video: Red 10-Pin Power Connector
• Transducer Port 1: Blue 7-Pin Connector for Broadband and CHIRP Sonar
• Transducer Port 2: Black 9-Pin Connector for Use with StructureScan Transducers
• Two Ethernet Ports
• Integrated Bluetooth Wireless Connectivity
Technical/Environmental
• Operating Temperature: 5°F to 131°F (-15°C to 55°C )
• Product Width: 10.43" (265 mm)
• Product Depth: 3.47" (88 mm)
• Product Height: 6.65" (169 mm)
• Power Supply (Supply Voltage): 12V DC (10.8-17V DC min-max)
GPS Navigation
• Routes: 100
• Waypoint Storage: 3000
• Man Overboard Feature
• Plot Trails: Up to 100 Trails With Up to 10,000 Points / Trail
• GPS Alarms
• Background Mapping: Includes Built-in Insight USA Charts for US Waters and World Reference Background Map
TOTAL SCAN SKIMMER TRANSDUCER SPECIFICATIONS
• 83/200 kHz Broadband Sonar Frequencies
• Medium and High CHIRP Frequencies
• 455/800 kHz StructureScan Frequencies
CHIRP Sonar
• Max Depth: 1000' at High (200 kHz)
• Max Speed: 55 mph
SideScan Imaging
• Max. Range: 600' (300' to each side) at 455 kHz / 200' (100' to each side) at 800 kHz
• Max Speed: 35 mph
• Mark Objects: 15 mph
• Optimum Speed: 10 mph
DownScan Imaging
• Max Depth: 300'
• Max Speed: 55 mph
• Mark Objects: 35 mph
• Optimum Speed: 10 mph
Technical
• Width: 2.3"
• Length: 10.2"
• Cable: 24'
- Ultra-bright 9" multi-touch, touchscreen display
- Superior target separation
- HDS Dual-Channel CHIRP Sonar
- Integrated wireless connectivity
- Broadband, CHIRP, and StructureScan HD all-in-one
Specs
Unit Weight
13.50 lb
Brand
Lowrance
MFG Part No.
000-13265-001
