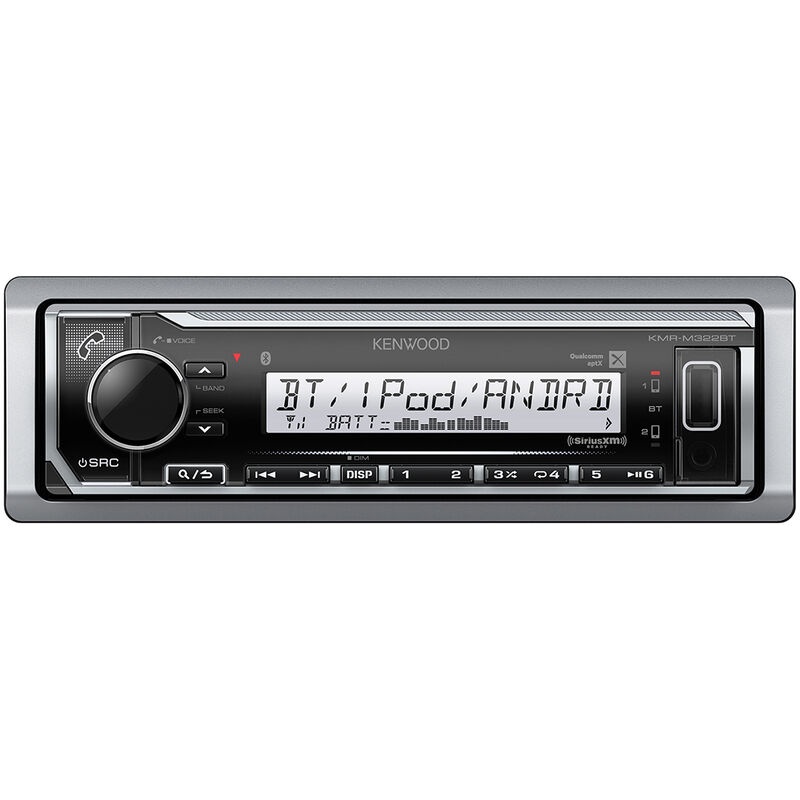

Kenwood KMR-M322BT Media Receiver With Bluetooth
FREE Standard Shipping over $99.
Good Sam Members: FREE Shipping over $69
This item is excluded from all discounts and promotions.
- This item is currently not available
Android Music Playback - Simply install the Kenwood Music Play application onto your Android smartphone, connect it to your Kenwood receiver via USB, and control your music directly from the receiver.
Android Rapid Charge - Rapidly charge your compatible Android smartphone with the USB port, up to a maximum of 1.5A.
Dual Phone Connection - Allows two phones to be connected for hands-free operation at any time. Easily switch between both phones with the touch of a button. Answering, calling, or searching your phonebook on your phone is made simple through an intuitive GUI.
Music Mix - Up to 5 Bluetooth devices can be connected to the head unit at the same time, and you can enjoy audio streaming just by switching the devices with your friends or family.
Remote App - A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
Wireless Music Browsing (AVRCP 1.5) - Search and select songs from your music collection through a Bluetooth connection.
Graphic Equalizer / Time Alignment - Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.
High-Quality Bluetooth Streaming - Compatible with high resolution audio, high quality codecs, such as AAC and aptX, allow the listener to be entertained with superior music playback.
Clear Display - Bright variable color LCD display can be adjusted to match any color dash lighting. 13 Digit 1.5 Line LCD Display.
Conformal Coating - Improves moisture resistance of the circuit boards.
Easy Operation - A large volume knob and buttons are intuitively placed, reducing distraction and promoting safety.
Theft Deterrent Faceplate
13 Digit 1.5 Line LCD Display
Rotary Encoder and Direct Key (TEL) For Easy Operation
Variable Color Illumination
Dimmer Control Function
Maximum Output Power: 50W x 4 (MOSFET Power IC)
Front USB & AUX Interface
3 Preouts (4.0V)
Kenwood sound reconstruction restores musical to compressed music
13-Band Graphic Equalizer
Subwoofer Level Adjustable
MP3, WMA, AAC, WAV, FLAC Decoder with ID-3 Tag Display
iPod/iPhone Direct Connection with Cable (not included)
iPod Skip Search Function
Pandora/iHeart Radio/iTunes Radio/Spotify App Ready (iPhone App)
Drive Change (For Android or Card Reader)
Android Music Playback
Android Rapid Charge
Sirius XM (SXV100/200/300) Ready
Backup Memory for Tuner Preset
24 Station Presets (18FM, 6AM)
RBDS with Radio Text
AME (Automatic Memory Entry)
External Media Control Features
Bluetooth Built-in (Hands-Free Profile / A2DP/ AVRCP1.5/Aptx)
Dual Phone Connection
Wireless Music Browsing
Pandora/iHeart Radio/Spotify App Ready (Android and iPhone App) via Bluetooth
Rear-Wired Bluetooth Microphone Included
Remote App for Android/iPhone
Frequency Range: 87.9MHz - 107.9MHz (200kHz)
Usable Sensitivity (S/N:26dB): 8.2dBf (0.71μV/75Ω)
Quieting Sensitivity (DIN S/N 46dB): 17.2dBf (2.0μV/75Ω)
Frequency Response (±3.0dB): 30Hz-15kHz
S/N: 64dB (MONO)
Stereo Separation: 40dB (1kHz)
Frequency Range: 530kHz - 1700kHz (10kHz)
Usable Sensitivity (S/N:20dB): 29dBμ (28.2μv)
USB: USB 1.1 / 2.0 full speed
File System: FAT12 / 16 / 32
Maximum Supply current: DC5V (DC logo) 1.5A
Frequency Response: 20Hz ~ 20kHz ±1dB
S/N Ratio: 105dB (1kHz)
Dynamic Range: 90dB
Channel Separation: 85dB
MP3 decode: Compliant with MPEG-1/2 Audio Layer-3
WMA decode: Compliant with Windows Media Audio
AAC Decode: AAC-LC ".aac",".m4a" files
WAV Decode: Linear-PCM
FLAC Decode: FLAC file (Up to 96kHz/24bit)
Preout Level (mV)/Load-Unbalanced: 4000mV/10kΩ(CD)
Preout Impedance: less than or equal to 600 ohms
Speaker Impedance: 4-8 ohms
Frequency Response: 20Hz ~ 20KHz ±3dB
Input Maximum Voltage: 1000mV
Input Impedance: 30KΩ
Maximum Power: 50w x 4
Full Bandwidth Power (at less than 1%THD): 22w x 4
Version: Bluetooth 3.0
Frequency Range: 2.402-2.480GHz
Output Power: +4dBm(MAX) 0dBm (AVE) Power Class 2
Maximum Communication Range: Line of sight approx. 32.8' (10m)
Profile: HFP 1.6 (Hands Free Profile) / SPP(Serial Port Profile) / PBAP(Phonebook Access Profile) / A2DP(Advanced Audio Distribution Profile) / AVRCP 1.5 (Audio/Video Remote Control Profile)
Operating Voltage (10.5-16v allowable): 14.4v
Maximum Current Consumption: 10A
Operational Temperature Range: -10°C to +60°C
Dimensions: 7-3/16"W x 2-1/16"H x 3-5/16"D (182mm x 53mm x 100mm)
Net Weight w/Trim Plate and Mounting Sleeve: 1.4 lbs. (0.6kg)
- Connect 2 smartphones with dual Bluetooth
- Music mix streams up to 5 Bluetooth devices
- Bright variable color LCD display
- Front USB/AUX inputs & 3 preouts (4.0V)
- 50W x 4 output power
