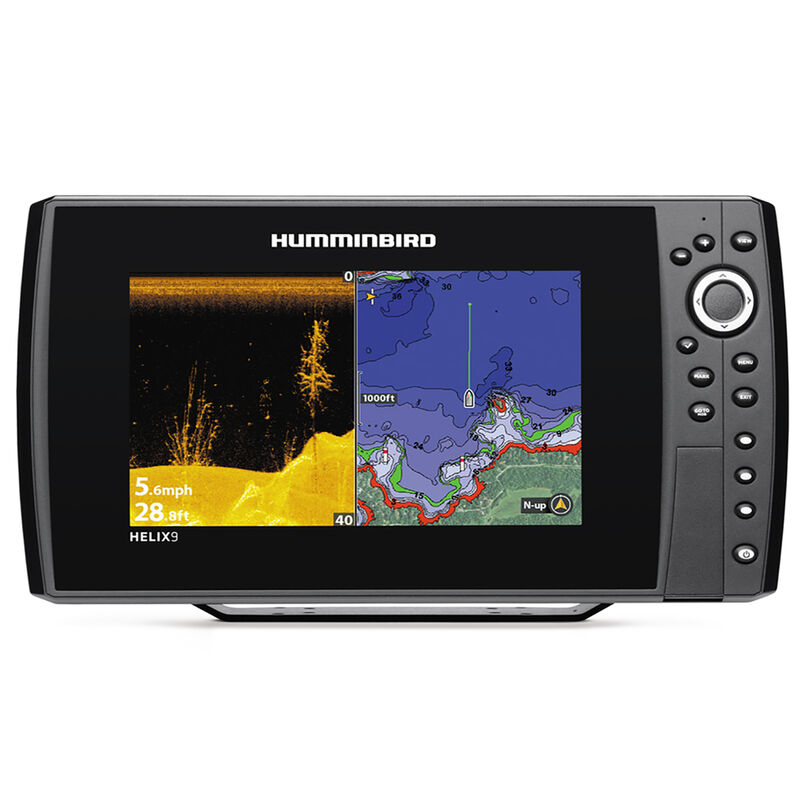

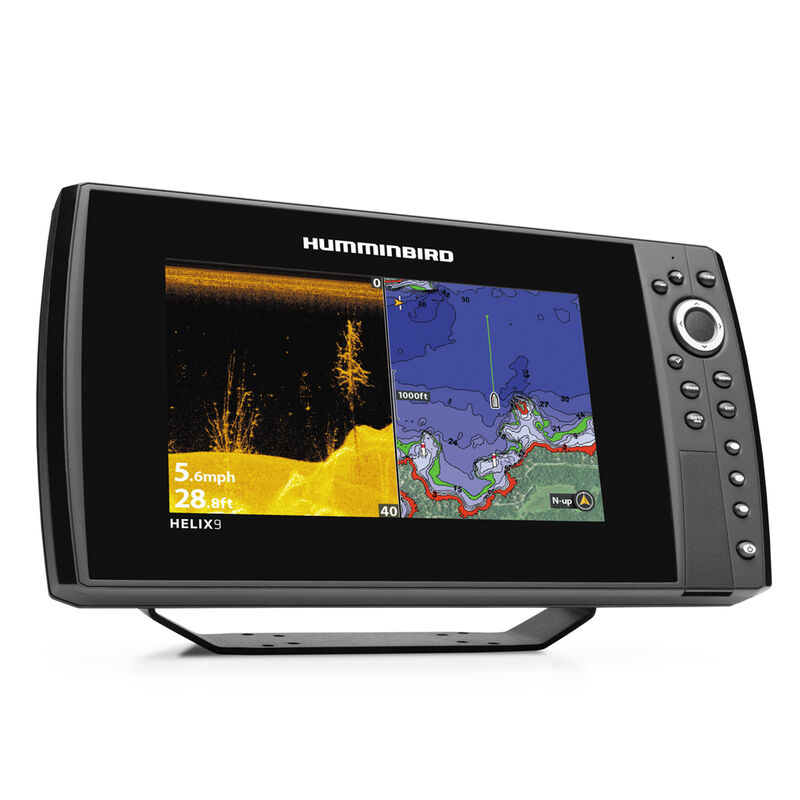

Humminbird Helix 9 DI Fishfinder GPS Combo

Humminbird makes the once-thought-impossible look easy. The Helix 9 Series features unprecedented technology with AutoChart Live pre-loaded into each unit. AutoChart Live transforms unknown waters into detailed maps live, right on your screen. With the press of a button, you can mark over 2500 waypoints onto underwater structure and contours, so you can return to productive areas. Keep the maps you make or share them with friends with full network capabilities.

View Humminbird Imaging technologies on an eye-popping screen with 1500 nit brightness and amazing resolution. The widescreen 16:9 format allows side-by-side displays of sonar, DI, or GPS screens. And the views are made even more potent by other Humminbird fish-finding technologies like Down Imaging, SwitchFire Sonar, and i-Pilot Link compatibility. The internal precision GPS comes with built-in Contour XD basemap. Dual card slots accommodate Navionics and Lakemaster map upgrades. Ethernet networking capable. 500 watts RMS.

This Helix 9 DI GPS Combo functionality includes DualBeam PLUS and Down Imaging Sonar. Down Imaging Sonar with DualBeam PLUS and Switchfire creates detailed images with high-frequency sound waves emitted in ultra-thin slices. The sonar returns from these waves produce a sensitive "snapshot" of what's below your boat.

• Display: 9" HD Color Screen
• Resolution: 480V x 800H
• Transom-Mount Transducer Included: XNT 9 DI T
• Power: 500 Watts (RMS)/4000 Watts (PTP)
• Size w/Gimbal Mount: 13.44"W x 7.12"H x 4.2"D

GPS Features
• 2,750 Waypoints
• 45 Routes
• 50 Tracks w/20,000 Points Each
• Trackplotting
• Chartplotting
• GPS Speed
• Contour XD Basemap

Down Imaging Sonar Coverage
• 455 kHz / 75° @ -10db
• 800 kHz / 45° @ -10db
• Depth: 350'

DualBeam PLUS Sonar Coverage
• 200 kHz / 28° @ -10db
• 455 kHz / 16° @ -10db
• Depth: 600'
