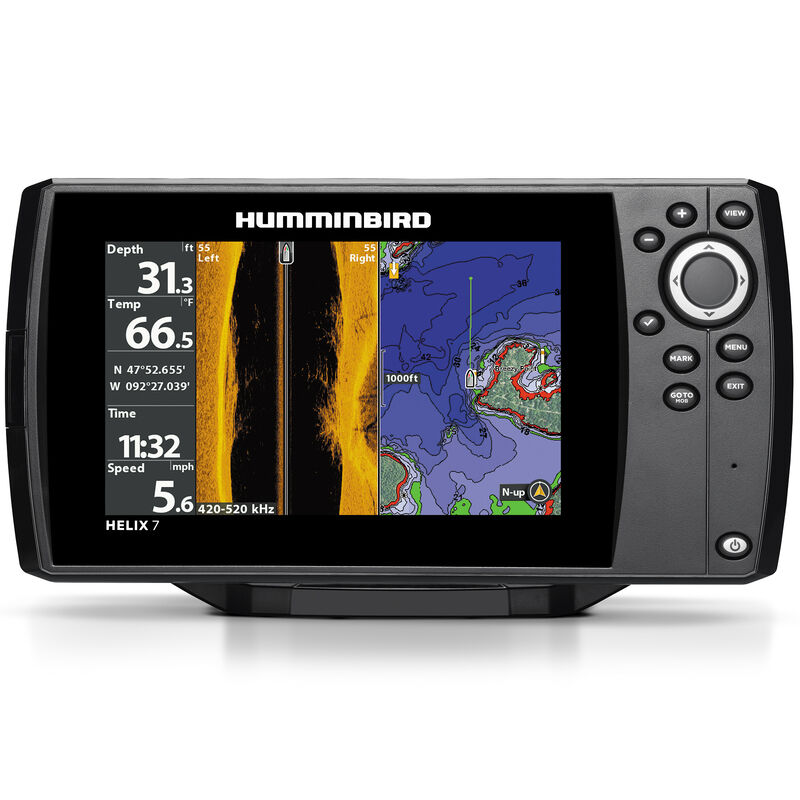

Humminbird Helix 7 SI GPS G2N CHIRP Fishfinder Chartplotter
Item No. 321637
  • bvseo_sdk, dw_cartridge, 17.1.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 65ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = '{0}', msg = {1};
Humminbird Helix 7 SI GPS G2N CHIRP Fishfinder Chartplotter

Humminbird Helix 7 SI GPS G2N CHIRP Fishfinder Chartplotter

  • bvseo_sdk, dw_cartridge, 17.1.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 21ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = '{0}', msg = {1};
Item No. 321637
$583.97 $799.99
Save $216.02 ( 27% Off )
Product Actions

This item is currently not available.

Additional Information
With a full arsenal of tools and new features, the Helix G2N CHIRP Fishfinder Chartplotters are now networkable with other Humminbird units and Minn Kota trolling motors, including Humminbird CHIRP Radar, Auto Pilot, 360 Imaging, and i-Pilot allowing users to "follow the contour." These units also feature Bluetooth capability, so you can view messages and missed calls from your head unit. All Helix G2N models now come with CHIRP technology for impressive detail and accuracy in virtually any application. A new user-friendly interface allows you to navigate the system quickly. AutoChart Live lets you map structure and contours on your screen and save them onto your micro SD card. The new SmartStrike feature gives you your own cheat sheet to the best spots on the lake. Mark up to 2750 waypoints and 45 routes, then share them with friends with full network capabilities. The widescreen format allows side-by-side displays of sonar, DI, SI, or GPS screens. Sonar options include Down Imaging (DI), with extra clarity and details down to 350', and Side Imaging (SI) that gives users up to 480' of side-to-side views of logs, weeds, and fish. The internal precision GPS comes with built-in basemap. SD card slot accommodates Navionics and Lakemaster map upgrades. 500 watts RMS.

360 Imaging
360 Imaging allows you to isolate your sweep. See 5 preset views or see all around you.

Side Imaging Sonar
Gain a 180° side-to-side perspective on the world below the surface.

Down Imaging Sonar
Get a fish-eye's view of what's happening below your boat. Incredible images are created with high-frequency sound waves.

SwitchFire Sonar
Take command of how your sonar returns appear with Clear and Max Modes.

DualBeam Plus Sonar
Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area.

Internal GPS
GPS antenna is built into the head unit.

UniMap Cartography
The Humminbird UniMap is a built-in map covering the contiguous US coastline, inland lakes, and rivers at 30 meters per pixel resolution.

Rig up the ultimate fishing system. Use the 5-Port Ethernet Switch to link together multiple Humminbird head units or share transducers.

Built-In Browser. Surf the web, monitor weather, and stay connected from the dock, offshore waters, and in between. Plus, take wireless control of your Humminbird with the new Bluetooth Remote and Dongle.

NMEA 2000 Ready
Boat performance, weather, or water conditions. Get an at-a-glance view of fuel consumption, engine performance, and other vessel data.

AutoChart Live
Make a map where there is no map. AutoChart Live allows you to create digital, detailed maps live and on the water. You can also use it to enhance your existing charts.

SmartStrike takes you straight to the action by showing you where the fish are biting at any given moment.

Single SD Card Slot
Use for advanced cartography or to save your screenshots, sonar recordings, and waypoints.

Micro SD Card Reader
Use for advanced cartography or to save screenshots, sonar recordings, and waypoints or to update your unit's software.

• Display Size: 7" diag.
• Display Matrix: 800H x 480V pixels
• Display Type: Color TFT w/16-bit grayscale
• Backlight: LED
• Target Separation: 2.5"
• Power Output RMS: 500 Watts
• Power Output Peak to Peak: 4000 Watts
• Depth Capability: 1500' / 350'(DI) / 100'(SI)

Sonar Capabilities
Side Imaging / Down Imaging Sonar Coverage
• 455 kHz / (2) 85° @ -10db
• Side Imaging Range to 240' Either Side

DualBeam PLUS Sonar Coverage
• 200 kHz / 20° @ -10db
• 83 kHz / 60° @ -10db

CHIRP Frequencies
• 83kHz: 75-95kHz
• 200kHz: 175-225kHz
• 455kHz: 420-520kHz

• SD Card Slot
• microSD card Reader
• Temperature: Sensor Built Into Transducer
• GPS Speed Included
• Mounting Options: Gimbal or In-Dash
• Transducer: XNT 9 SI 180 T Transom-Mount
• Power Input: 10.8-20 VDC
• Power Draw: 900 mA
• Unit Size w/Gimbal: 10.54"W x 5.80"H x 3.68"D
• Unit Size (In-Dash Mount): 10.54"W x 5.44"H x 1.13"D

More Features
Waypoints: 2,750
Routes: 45
Tracks/Points: 50/20,000
Upgradeable Internal Software
Split Screen Zoom
Split Screen Bottom Lock
3D Chart View
Large Digits View
Wide/Narrow Cone Split Screen
Custom View Selections
Custom Digital Readout
Temperature Alarm
Freeze Frame
Instant Image Update
Mark Structure On Sonar
Selective Fish ID+
Real Time Sonar
X-Press Menu System
Show moreShow less
  • Networkable with Humminbird and Minn Kota
  • Bluetooth capability
  • User-friendly interface
  • Side Imaging/Down Imaging and DualBeam Plus Sonar
  • Built-in UniMap
Accepts Data Cards Yes
Antenna Internal
Dimensions 10.54"W x 5.80"H x 3.68"D
Display Resolution 800 x 480
Display Size 7" diag.
Included Cartography US UniMap
Max. Depth 1500.00 ft
Model Number Helix 7 SI GPS G2N
Operating Frequency 200/83/455 kHz
Power Output 500.00 W
Sonar Coverage 20° / 60° / (2) 85°
Speed GPS Speed
Temp Yes
Transducer XNT 9 SI 180 T Transom-Mount
Waterproof Yes
Unit Weight 5.72 lb
Brand Humminbird
  • bvseo_sdk, dw_cartridge, 17.1.0, p_sdk_3.2.0
  • CLOUD, getReviews, 9ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = '{0}', msg = {1};

What extra features are included with the G2N Vs. the G2Combo? Is it blue tooth only for an extra $100.00 or is there something more to be gained??

Asked by: Reelameal
The difference between the Helix 7 CHIRP SI GPS G2N and the HELIX 7 CHIRP SI GPS G2 is basically the same other than with the G2N model you are able to Networked with another 7 G2N, Helix 9, 10 or 12 and the unit would be compatible with I Pilot Link. The G2 model cannot network and not compatible with I Pilot Link.
Answered by: HB Product Expert
Date published: 2019-04-26
