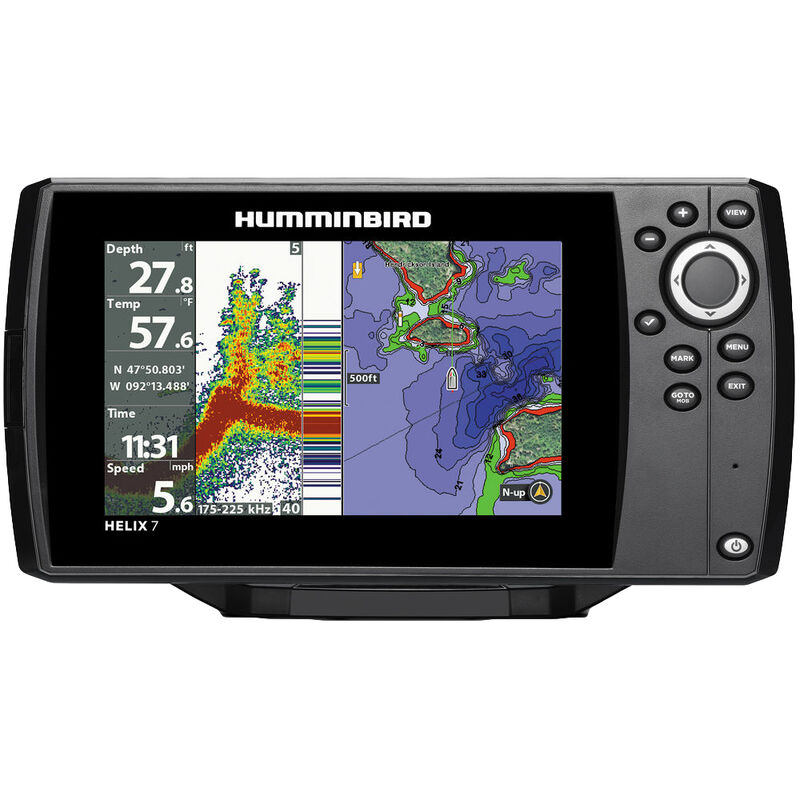

Humminbird Helix 7 GPS G2 CHIRP Fishfinder Chartplotter Combo
Item No. 321653
  • bvseo_sdk, dw_cartridge, 17.1.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 80ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = '{0}', msg = {1};
Images
Humminbird Helix 7 GPS G2 CHIRP Fishfinder Chartplotter Combo
Details

Humminbird Helix 7 GPS G2 CHIRP Fishfinder Chartplotter Combo

  • bvseo_sdk, dw_cartridge, 17.1.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 61ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = '{0}', msg = {1};
Item No. 321653
$360.97 $449.99
Save $89.02 ( 20% Off )
Product Actions

This item is currently not available.

Additional Information
The Helix G2 CHIRP Fishfinder Chartplotters now come with CHIRP technology for impressive detail and accuracy in virtually any application. A new user-friendly interface allows you to navigate the system quickly. The G2 Chartplotters also include AutoChart Live which lets you map structure and contours on your screen and onto your micro SD card. The new SmartStrike feature gives you your own cheat sheet to the best spots on the lake. You can view these technologies on an eye-popping widescreen with 1500-nit brightness and amazing resolution. Includes a built-in UniMap basemap and a micro card slot for upgrading to LakeMaster or Navionics maps. 500 watts RMS.

SwitchFire Sonar
Take command of how your sonar returns appear with Clear and Max Modes.

DualBeam Plus Sonar
Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area.

Internal GPS
GPS antenna is built into the head unit.

UniMap Cartography
The Humminbird UniMap is a built-in map covering the contiguous US coastline, inland lakes, and rivers at 30 meters per pixel resolution.

AutoChart Live
Make a map where there is no map. AutoChart Live allows you to create digital, detailed maps live and on the water. You can also use it to enhance your existing charts.

SmartStrike
SmartStrike takes you straight to the action by showing you where the fish are biting at any given moment.

Micro SD Card Reader
Use for advanced cartography or to save screenshots, sonar recordings, and waypoints or to update your unit's software.

• Display Size: 7" diag.
• Display Matrix: 800H x 480V pixels
• Display Type: Color TFT w/16-bit grayscale
• Backlight: LED
• Target Separation: 2.5"
• Power Output RMS: 500 Watts
• Power Output Peak to Peak: 4000 Watts
• Depth Capability: 1500'

Sonar Capabilities
DualBeam PLUS Sonar Coverage
• 200kHz / 20° @ -10db
• 83kHz / 60° @ -10db

CHIRP Frequencies
• 200kHz: 175-255kHz
• 83kHz: 75-95kHz

• Single microSD card slot
• Temperature: Sensor Built Into Transducer
• GPS Speed Included
• Mounting Options: Gimbal or In-Dash
• Transducer: XNT 9 20 T Transom-Mount
• Power Input: 10.8-20 VDC
• Power Draw: 850 mA
• Unit Size w/Gimbal: 10.54"W x 5.80"H x 3.68"D
• Unit Size (In-Dash Mount): 10.54"W x 5.44"H x 1.13"D

More Features
Waypoints: 2,750
Routes: 47
Tracks/Points: 50/20,000
Upgradeable Internal Software
Split Screen Zoom
Split Screen Bottom Lock
Large Digits View
Wide/Narrow Cone Split Screen
Custom View Selections
Custom Digital Readout
Temperature Alarm
Freeze Frame
Instant Image Update
Selective Fish ID+
Real Time Sonar
X-Press Menu System
Show moreShow less
  • Easy-to-use interface
  • CHIRP technology for impressive detail
  • AutoChart Live lets you map on your screen
  • DualBeam Plus Sonar
  • Transom-mount transducer included
Accepts Data Cards Yes
Antenna Internal
Dimensions 10.54"W x 5.80"H x 3.68"D
Display Resolution 800 x 480
Display Size 7" diag.
Display Type TFT
Included Cartography US UniMap
Max. Depth 1500.00 ft
Model Number Helix 7 GPS G2
Operating Frequency 200/83 kHz
Power Output 500.00 W
Sonar Coverage 20° / 60°
Speed GPS Speed
Temp Yes
Transducer XNT 9 20 T Transom-Mount
Waterproof Yes
Unit Weight 5.04 lb
Brand Humminbird
  • bvseo_sdk, dw_cartridge, 17.1.0, p_sdk_3.2.0
  • CLOUD, getReviews, 39ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = '{0}', msg = {1};

does this model have I-pilot link compatibility?

Asked by: Mike D
The Helix 7 CHIRP GPS G2 is not compatible with I Pilot Link. The unit must be a G2N model to work. Ex. Helix 7 CHIRP GPS G2N.
Answered by: HB Product Expert
Date published: 2019-04-13
