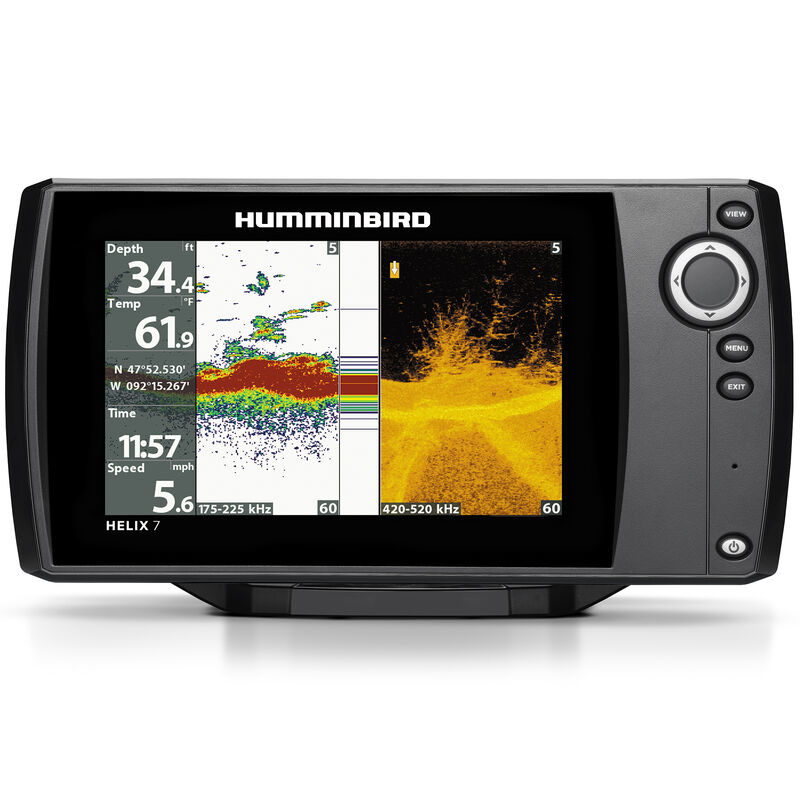

Humminbird Helix 7 DI G2 CHIRP Fishfinder
Item No. 321647
Images
Details
https://www.overtons.com/humminbird-helix-7-di-g2-chirp-fishfinder-321647.html
Humminbird Helix 7 DI G2 CHIRP Fishfinder
$383.97
$399.99
Additional Information
Features
The Helix G2 Fishfinder with new user interface and operating system now features CHIRP technology for impressive detail and accuracy in virtually any application. The best-in-class, widescreen color display allows optimal viewing with enough room for side-by-side displays of sonar or DI screens. This Down Imaging (DI) model boasts amazing clarity underneath the boat, revealing details down to 350'. Comes with transom-mount transducer, cable, and built-in water surface temp. 500 watts RMS power output.
Down Imaging Sonar
Get a fish-eye's view of what's happening below your boat. Incredible images are created with high-frequency sound waves.
SwitchFire Sonar
Take command of how your sonar returns appear with Clear and Max Modes.
DualBeam Plus Sonar
Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area.
• Display Size: 7" diag.
• Display Matrix: 800H x 480V pixels
• Display Type: Color TFT w/16-bit grayscale
• Backlight: LED
• Target Separation: 2.5"
• Power Output RMS: 500 Watts
• Power Output Peak to Peak: 4000 Watts
• Depth Capability: 600' / 350' (DI)
Sonar Capabilities
DualBeam PLUS Sonar Coverage
• 200kHz / 28° @ -10db
• 455kHz / 16° @ -10db
Down Imaging Sonar Coverage
• 455kHz / 75° @ -10db
• 800kHz / 45° @ -10db
• Temperature: Sensor Built Into Transducer
• Mounting Options: Gimbal or In-Dash
• Transducer: XNT 9 DI T Transom-Mount
• Power Input: 10.8-20 VDC
• Power Draw: 850 mA
• Unit Size w/Gimbal: 10.54"W x 5.80"H x 3.68"D
• Unit Size (In-Dash Mount): 10.54"W x 5.44"H x 1.13"D
More Features
Split Screen Zoom
Split Screen Bottom Lock
Large Digits View
Wide/Narrow Cone Split Screen
Custom View Selections
Custom Digital Readout
Temperature Alarm
Freeze Frame
Instant Image Update
Selective Fish ID+
Real Time Sonar
X-Press Menu System
Show moreShow less
Down Imaging Sonar
Get a fish-eye's view of what's happening below your boat. Incredible images are created with high-frequency sound waves.
SwitchFire Sonar
Take command of how your sonar returns appear with Clear and Max Modes.
DualBeam Plus Sonar
Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area.
• Display Size: 7" diag.
• Display Matrix: 800H x 480V pixels
• Display Type: Color TFT w/16-bit grayscale
• Backlight: LED
• Target Separation: 2.5"
• Power Output RMS: 500 Watts
• Power Output Peak to Peak: 4000 Watts
• Depth Capability: 600' / 350' (DI)
Sonar Capabilities
DualBeam PLUS Sonar Coverage
• 200kHz / 28° @ -10db
• 455kHz / 16° @ -10db
Down Imaging Sonar Coverage
• 455kHz / 75° @ -10db
• 800kHz / 45° @ -10db
• Temperature: Sensor Built Into Transducer
• Mounting Options: Gimbal or In-Dash
• Transducer: XNT 9 DI T Transom-Mount
• Power Input: 10.8-20 VDC
• Power Draw: 850 mA
• Unit Size w/Gimbal: 10.54"W x 5.80"H x 3.68"D
• Unit Size (In-Dash Mount): 10.54"W x 5.44"H x 1.13"D
More Features
Split Screen Zoom
Split Screen Bottom Lock
Large Digits View
Wide/Narrow Cone Split Screen
Custom View Selections
Custom Digital Readout
Temperature Alarm
Freeze Frame
Instant Image Update
Selective Fish ID+
Real Time Sonar
X-Press Menu System
- Easy-to-use interface
- CHIRP technology for impressive detail
- Brilliant widescreen display
- Down Imaging Sonar
- Transom-mount transducer included
Specs
| Dimensions | 10.54"W x 5.80"H x 3.68"D |
|---|---|
| Display Resolution | 800 x 480 |
| Display Size | 7" diag. |
| Display Type | TFT |
| Model Number | Helix 7 DI G2 |
| Operating Frequency | 455/800/200/455 kHz |
| Power Output | 500.00 W |
| Sonar Coverage | 16° / 28° / 45° / 75° |
| Temp | Yes |
| Transducer | XNT 9 DI T Transom-Mount |
| Waterproof | Yes |
| Unit Weight | 5.36 lb |
| Brand | Humminbird |
Reviews
Q & A
The Helix G2 Fishfinder with new user interface and operating system now features CHIRP technology for impressive detail and accuracy in virtually any application. The best-in-class, widescreen color display allows optimal viewing with enough room for side-by-side displays of sonar or DI screens. This Down Imaging (DI) model boasts amazing clarity underneath the boat, revealing details down to 350'. Comes with transom-mount transducer, cable, and built-in water surface temp. 500 watts RMS power output.
Down Imaging Sonar
Get a fish-eye's view of what's happening below your boat. Incredible images are created with high-frequency sound waves.
SwitchFire Sonar
Take command of how your sonar returns appear with Clear and Max Modes.
DualBeam Plus Sonar
Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area.
• Display Size: 7" diag.
• Display Matrix: 800H x 480V pixels
• Display Type: Color TFT w/16-bit grayscale
• Backlight: LED
• Target Separation: 2.5"
• Power Output RMS: 500 Watts
• Power Output Peak to Peak: 4000 Watts
• Depth Capability: 600' / 350' (DI)
Sonar Capabilities
DualBeam PLUS Sonar Coverage
• 200kHz / 28° @ -10db
• 455kHz / 16° @ -10db
Down Imaging Sonar Coverage
• 455kHz / 75° @ -10db
• 800kHz / 45° @ -10db
• Temperature: Sensor Built Into Transducer
• Mounting Options: Gimbal or In-Dash
• Transducer: XNT 9 DI T Transom-Mount
• Power Input: 10.8-20 VDC
• Power Draw: 850 mA
• Unit Size w/Gimbal: 10.54"W x 5.80"H x 3.68"D
• Unit Size (In-Dash Mount): 10.54"W x 5.44"H x 1.13"D
More Features
Split Screen Zoom
Split Screen Bottom Lock
Large Digits View
Wide/Narrow Cone Split Screen
Custom View Selections
Custom Digital Readout
Temperature Alarm
Freeze Frame
Instant Image Update
Selective Fish ID+
Real Time Sonar
X-Press Menu System
Show moreShow less
Down Imaging Sonar
Get a fish-eye's view of what's happening below your boat. Incredible images are created with high-frequency sound waves.
SwitchFire Sonar
Take command of how your sonar returns appear with Clear and Max Modes.
DualBeam Plus Sonar
Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area.
• Display Size: 7" diag.
• Display Matrix: 800H x 480V pixels
• Display Type: Color TFT w/16-bit grayscale
• Backlight: LED
• Target Separation: 2.5"
• Power Output RMS: 500 Watts
• Power Output Peak to Peak: 4000 Watts
• Depth Capability: 600' / 350' (DI)
Sonar Capabilities
DualBeam PLUS Sonar Coverage
• 200kHz / 28° @ -10db
• 455kHz / 16° @ -10db
Down Imaging Sonar Coverage
• 455kHz / 75° @ -10db
• 800kHz / 45° @ -10db
• Temperature: Sensor Built Into Transducer
• Mounting Options: Gimbal or In-Dash
• Transducer: XNT 9 DI T Transom-Mount
• Power Input: 10.8-20 VDC
• Power Draw: 850 mA
• Unit Size w/Gimbal: 10.54"W x 5.80"H x 3.68"D
• Unit Size (In-Dash Mount): 10.54"W x 5.44"H x 1.13"D
More Features
Split Screen Zoom
Split Screen Bottom Lock
Large Digits View
Wide/Narrow Cone Split Screen
Custom View Selections
Custom Digital Readout
Temperature Alarm
Freeze Frame
Instant Image Update
Selective Fish ID+
Real Time Sonar
X-Press Menu System
- Easy-to-use interface
- CHIRP technology for impressive detail
- Brilliant widescreen display
- Down Imaging Sonar
- Transom-mount transducer included
| Dimensions | 10.54"W x 5.80"H x 3.68"D |
|---|---|
| Display Resolution | 800 x 480 |
| Display Size | 7" diag. |
| Display Type | TFT |
| Model Number | Helix 7 DI G2 |
| Operating Frequency | 455/800/200/455 kHz |
| Power Output | 500.00 W |
| Sonar Coverage | 16° / 28° / 45° / 75° |
| Temp | Yes |
| Transducer | XNT 9 DI T Transom-Mount |
| Waterproof | Yes |
| Unit Weight | 5.36 lb |
| Brand | Humminbird |
Will the 20% flashsale apply to this unit?
Our factory direct Retail cost of the Helix 7 DI CHIRP G2 is $399.99. We don't offer any type of discount. However, you may want to check with the store to see if they are offering any type of discount or sale on the item.
Date published: 2018-02-19
Will this unit accept a side imaging transducer as well as a DIT
The Helix 7 CHIRP DI G2 (410280-1) is a Down Imaging unit that will display traditional 2d sonar also. To obtain Side Imaging, you would need a Side Imaging unit.
Date published: 2018-02-07
ARE THE LAKE MAPS ALREADY DOWNLOADED ON THIS UNIT
The Helix 7 DI G2 CHIRP comes preloaded with an Internal Map. Map card required for additional detail.
Date published: 2019-02-21
Is this unit compatible with a "through hull" transducer?
The unit comes standard with a Transom Transducer and is compatible with a Thru hull that will require a hole to be drilled through the bottom of the boat. See the following link for further information on our exchange program for new and unused transducers. https://www.humminbird.com/faqDetail.aspx?id=1479
Date published: 2017-12-18
Having trouble seeing my drop shot on helix 7.
See further information on Drop Shotting on Hummimbird TV on You tube.
Date published: 2017-12-19
