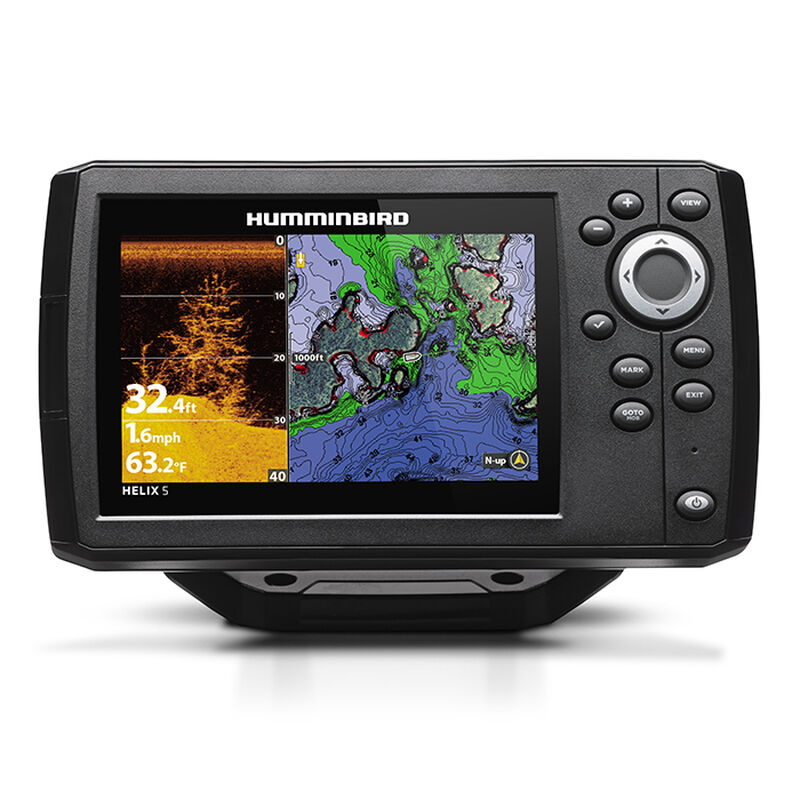

Humminbird Helix 5 DI GPS G2 CHIRP Fishfinder Chartplotter Combo

Item #: 321648
3.3 out of 5 Customer Rating
Additional Freight charge of null applies

Humminbird Helix 5 DI GPS G2 CHIRP Fishfinder Chartplotter Combo
Humminbird Helix 5 DI GPS G2 CHIRP Fishfinder Chartplotter Combo
Ship to Home
Delivery time calculated in checkout Delivery calculated in checkout
Order Pickup
Select store
Free Pickup at Select Stores . Change Store

Curbside Pickup available

FREE Standard Shipping over $99.

Good Sam Members: FREE Shipping over $69

This item is excluded from all discounts and promotions.

  • This item is currently not available
Minimum order quantity of 1
Maximum order quantity of 100
The Helix G2 CHIRP Fishfinder Chartplotters now come with CHIRP technology for impressive detail and accuracy in virtually any application. A new user-friendly interface allows you to navigate the system quickly. The G2 Chartplotters also include AutoChart Live which lets you map structure and contours on your screen and onto your micro SD card. The new SmartStrike feature gives you your own cheat sheet to the best spots on the lake. You can view these technologies on an eye-popping widescreen with 1500-nit brightness and amazing resolution. Sonar options include Down Imaging (DI) with extra clarity and details down to 350'. Includes a built-in UniMap basemap and a micro card slot for upgrading to LakeMaster or Navionics maps. 500 watts RMS.

Down Imaging Sonar
Get a fish-eye's view of what's happening below your boat. Incredible images are created with high-frequency sound waves.

SwitchFire Sonar
Take command of how your sonar returns appear with Clear and Max Modes.

DualBeam Plus Sonar
Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area.

Internal GPS
GPS antenna is built into the head unit.

UniMap Cartography
The Humminbird UniMap is a built-in map covering the contiguous US coastline, inland lakes, and rivers at 30 meters per pixel resolution.

AutoChart Live
Make a map where there is no map. AutoChart Live allows you to create digital, detailed maps live and on the water. You can also use it to enhance your existing charts.

SmartStrike takes you straight to the action by showing you where the fish are biting at any given moment.

Micro SD Card Reader
Use for advanced cartography or to save screenshots, sonar recordings, and waypoints or to update your unit's software.

• Display Size: 5" diag.
• Display Matrix: 800H x 480V pixels
• Display Type: Color TFT w/16-bit grayscale
• Backlight: LED
• Target Separation: 2.5"
• Power Output RMS: 500 Watts
• Power Output Peak to Peak: 4000 Watts
• Depth Capability: 600' / 350'(DI)

Sonar Capabilities
DualBeam PLUS Sonar Coverage
• 200kHz / 28° @ -10db
• 455kHz / 16° @ -10db

Down Imaging Sonar Coverage
• 455kHz / 75° @ -10db
• 800kHz / 45° @ -10db

CHIRP Frequencies
• 455kHz: 420-520kHz
• 800kHz: 790-850kHz

• Single microSD card slot
• Temperature: Sensor Built Into Transducer
• GPS Speed Included
• Mounting Options: Gimbal or In-Dash
• Transducer: XNT 9 DI T Transom-Mount
• Power Input: 10.8-20 VDC
• Power Draw: 600 mA
• Unit Size w/Gimbal: 7.55"W x 4.64"H x 3.3"D
• Unit Size (In-Dash Mount): 7.55"W x 4.28"H x 1.13"D

More Features
Waypoints: 2,750
Routes: 47
Tracks/Points: 50/20,000
Upgradeable Internal Software
Split Screen Zoom
Split Screen Bottom Lock
Large Digits View
Wide/Narrow Cone Split Screen
Custom View Selections
Custom Digital Readout
Temperature Alarm
Freeze Frame
Instant Image Update
Selective Fish ID+
Real Time Sonar
X-Press Menu System
  • Easy-to-use interface
  • CHIRP technology for impressive detail
  • AutoChart Live lets you map on your screen
  • Down Imaging for greater clarity
  • Transom-mount transducer included
Accepts Data Cards
7.55"W x 4.64"H x 3.3"D
Display Resolution
800 x 480
Display Size
5" diag.
Display Type
Included Cartography
US UniMap
Max. Depth
600.00 ft
Model Number
Helix 5 DI
Operating Frequency
455/800/200/455 kHz
Power Output
500.00 W
Sonar Coverage
16° / 28° / 45° / 75°
GPS Speed
XNT 9 DI T Transom-Mount
Unit Weight
3.92 lb
