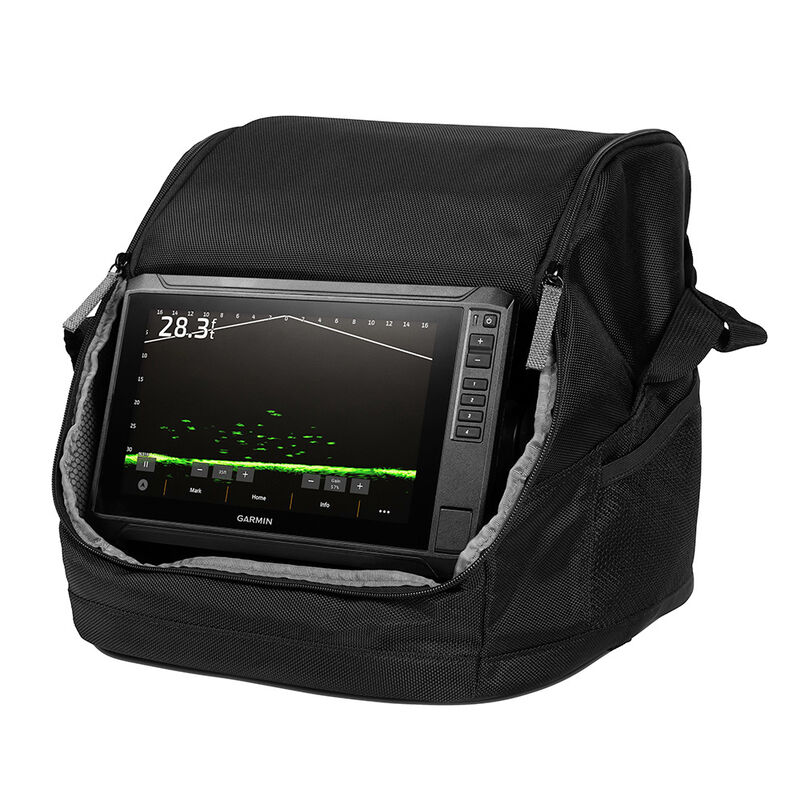

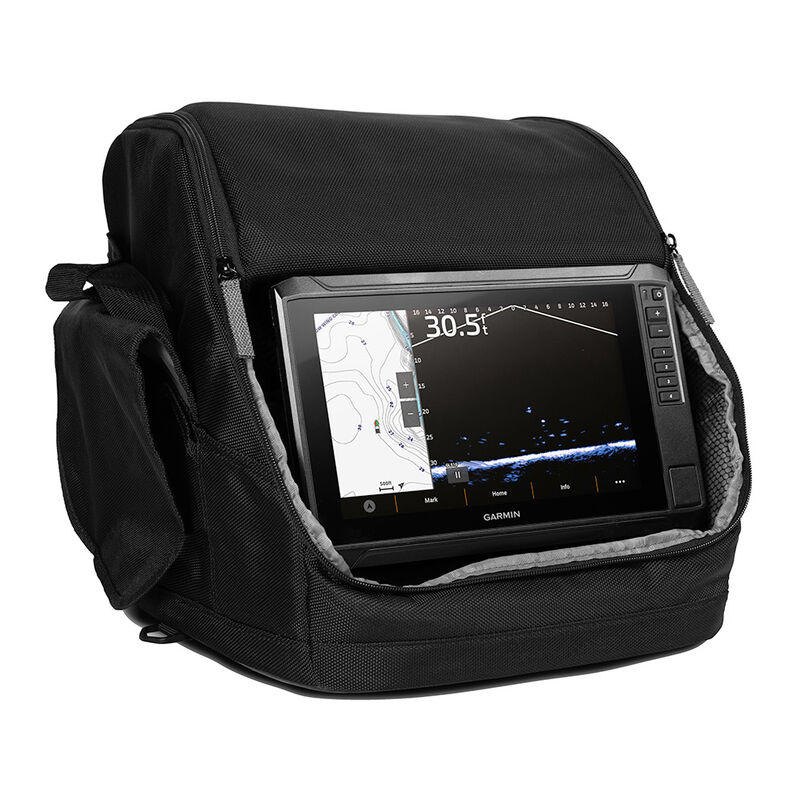

Garmin ECHOMAP UHD2 93SV LiveScope Plus Ice Fishing Bundle LI w/ECHOMAP UHD2 93sv, LiveScope Plus System & Lithium-ion Battery

Get improved resolution, reduced noise, clearer images, and better target separation with the Garmin LiveScope Plus Ice Fishing Bundle LI. It includes a 9-inch ECHOMAP UHD2 combo, the complete LiveScope Plus System with LVS34-IF transducer, swivel pole mount, and a lightweight lithium battery.

ECHOMAP UHD2 Combo
Revolutionary real-time sonar pairs with a large 9-inch ECHOMAP UHD2 combo touchscreen display with a keyed assist, allowing you to see up to 200’ in any direction.

Two Modes One Transducer
LiveScope System offers two live-scanning sonar modes — Down and Forward. It features a transducer cable that stays flexible, even in freezing conditions

Garmin Navionics+ Maps
You get preloaded Garmin Navionics+ maps for exceptional detail on more than 23,000 U.S. lakes.

Custom Combos
You can create custom pages that combine sonar, flashers, and maps on your display.

Lithium Battery
Fish even longer with a lightweight 16.5Ah lithium battery that won’t weigh you down on the ice.

In the Box:
• ECHOMAP UHD2 chartplotter (version depends on mapping selected)
• LVS34-IF transducer
• GLS 10 sonar module
• Ice fishing pole mount
• Tilt mount
• Power cable
• Portable fishing bag with handle
• Lithium-ion battery
• Battery charger
• Documentation

General Specifications:
• Dimensions: 13.8 x 12.2 x 13.0 in. / 35 x 31 x 33 cm
• Touchscreen: Yes
• Input: Touchscreen with Keyed Assist
• Display Size: 7.8 x 4.5, 9.0" in. / 19.8 x 11.5, 22.9 cm
• Display Resolution: 1024 x 600 pixels
• Display Type: WVGA, IPS
• Weight: 22.5 lbs / 10.2 kg
• Waterproof: IPX7

Maps & Memory:
• Accepts Data Cards: 1 microSD card; 32 GB maximum size
• Waypoints: 5000
• Track Points: 50,000
• Tracks: 50 saved tracks
• Navigation Routes: 100

Ice Fishing Details:
• Battery Type, Size: Lithium-ion, 16.5Ah
• Bag Size: Extra Large (XL)
• Included Transducer: LiveScope Plus System with LVS34-IF
• Transducer Holding Feature: Pole mount

Sensors:
• Has Built-in Receiver: Yes
• Receiver: 10 Hz
• NMEA 2000 Compatible: Yes
• GPS: Yes
• Glonass: Yes
• Galileo: Yes
• Beidou: Yes
• Supports Waas: Yes
• Supports Multi-Band, Multi-Constellation GPS: Yes

Built-in Maps:
• Built-in Auto Guidance+: Yes (downloadable via ActiveCaptain app)
• Garmin Navionics+ Inland & Coastal: Yes (see Additional)
• Garmin Navionics+ (Inland): Yes (see Additional)

Optional Map Support:
• Garmin Navionics+: Yes
• Garmin Navionics+ VIision+: Yes
• TOPO: Yes
• Standrad Mapping: Yes
• Garmin Quickdraw Contours: Yes

Chartplotter Features:
• ActiveCaptain Compatable: Yes

Electrical Features:
• Power Input: 9 to 18 Vdc

Sonar Features & Specifications:
• Displays Sonar: Yes
• Power Output: 500 W
• Traditional Sonar (Dual Frequency/Beam): Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
• ClearVü: Built-in 260/455/800/1000/1200 kHz
• SideVü: Built-in 260/455/800/1000/1200 kHz
• Panoptix Sonar: Yes
• Livescope: Yes

Connections:
• NMEA 2000 Ports: Yes
• Garmin Marine Network Ports: 1
• 12-Pin Transducer Ports: 1
• Bluetooth Pairing: Yes
• Ant+ (Connectivity): Yes
• Garmin Wi-Fi Network (Local Connection): Yes

Additional:
• Garmin Navionics+ Inland & Coastal: 95sv Canada
• Garmin Navionics + (Inland): 95sv U.S. Lakes
