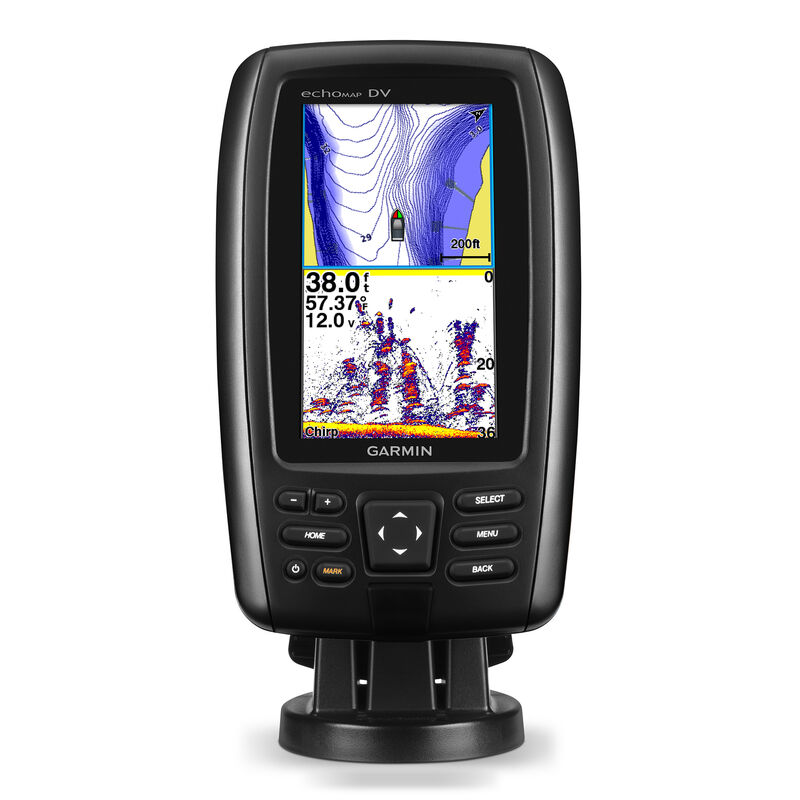

Garmin echoMAP CHIRP 43dv Fishfinder Chartplotter

Item #: 312495
3.3 out of 5 Customer Rating
$299.99
Additional Freight charge of null applies

Garmin echoMAP CHIRP 43dv Fishfinder Chartplotter
Garmin echoMAP CHIRP 43dv Fishfinder Chartplotter
$299.99
Ship to Home
Delivery time calculated in checkout Delivery calculated in checkout
Order Pickup
Not Available

This item is excluded from all discounts and promotions.

Minimum order quantity of 1
Maximum order quantity of 100
Features
Fish with the Power of CHIRP
• 4.3" color display with keypad control
• Includes GT20 transducer with CHIRP (77/200 kHz and 500W RMS) and CHIRP DownVu (455/800 kHz and 300W RMS)
• Preloaded LakeVu HD charts
• Includes Quickdraw Contours custom HD map creation software

It's time you started fishing with the power of CHIRP sonar. The easy-to-install, easy-to-use 4.3" echoMAP CHIRP 43dv includes transducer for high wide CHIRP sonar and Garmin CHIRP DownVü, the clearest scanning sonars on the water. It includes preloaded Quickdraw Contours software to instantly create your own HD maps with 1' contours as you fish. Internal 5 Hz GPS updates position and heading 5 times per second. Cords plug directly into the mount, allowing you to quickly install and remove your device from power and mount. Transom and trolling motor mounts included.

The Garmin CHIRP Difference
The built-in sonar capabilities of echoMAP 43dv include CHIRP sonar, the most sophisticated sonar technology available for the fishing and boating public. CHIRP sonar provides amazingly clear target separation and definition because it puts even more energy onto the target than traditional sonar. It also includes sonar-recording capability that coordinates the timing of the sonar return with your boat's position and saves digital information for playback on a computer using HomePort planning software (not included). Use the user data sharing cable to share waypoints and routes between multiple devices.

Clearest Scanning Sonar on the Water
Garmin CHIRP DownVu scanning sonar gives you a nearly photographic image down to 750 feet below your boat. You clearly see structure, submerged objects, and fish. Traditional Garmin HD-ID sonar and DownVu scanning sonar are combined into one transducer. Also provides HD-ID support for Minn Kota and MotorGuide trolling motors with integrated transducers.

Preloaded LakeVu HD Maps
These highly detailed freshwater maps include 17,000+ U.S. lakes, rivers and reservoirs. That number also includes more than 13,000 HD lakes with 1' contours shoreline to shoreline. LakeVu HD gives you excellent detail of underwater features, plus Shallow Water Shading allows you to designate a minimum depth. It also shows interstates, highways, general roads and bridges, designated fishing areas, docks, boat ramps, marinas, and campgrounds.

Create Your Own HD Maps
Quickdraw Contours is a free, easy-to-use software feature already installed on your echoMAP CHIRP 43dv. It instantly creates your own personalized HD fishing maps on screen with 1-foot contours. Tailor the maps as needed; you own them. Keep the data for yourself or share it with Garmin or your friends. No special surveying expertise is required. You just fish while Quickdraw Contours creates maps. There's no waiting around or sending your files away like other mapping software requires; your results appear instantly.

Heading and Position Refreshed 5 Times per Second
Fast, responsive 5 Hz GPS/GLONASS refreshes your position and heading 5 times each second to make your movement on the screen more fluid. Now it's quick and easy to drop up to 5,000 accurate waypoints and find your way back to your secret fishing hot spots.

Take Your echoMAP with You
When you're off the water, it's easy to keep your echoMAP safe and secure. You don't have to mess with plugging and unplugging wires from the unit because the cords plug directly into the mount. This allows you to quickly install and remove your echoMAP from power and the mount.

Upgrade with the Best Garmin Maps on the Water
A single microSD card slot provides expandable memory for accessory map purchases such as LakeVu HD, LakeVu HD Ultra, or BlueChart g2 Vision. LakeVu HD Ultra and BlueChart g2 Vision provide exclusive Garmin Auto Guidance, a technology that directs you to your hot spots. Based on your boat's specifications, Auto Guidance instantly creates a visual path you can follow to avoid shallow water and other charted obstructions.

GPX Waypoints Transfer
If you have waypoints, tracks, or frequently used routes stored on another manufacturer's GPS product or on a Garmin handheld device, now it's easier than ever to transfer those items to your new Garmin chartplotter, via industry-standard GPX software formatting. GPX is an open standard format for GPS data exchange across platforms and applications. With this easy-to-use interface technology, Garmin has taken "no waypoint left behind" to a whole new level of trade-up convenience.

echoMAP CHIRP 43dv Specs
• Dimensions: 4" x 6.6" x 1.8"
• Display size: 4.3" diagonal
• Resolution: 480 x 272
• Preloaded with LakeVu HD inland maps
• 1 microSD card slot

Frequencies:
• CHIRP
• Traditional: 77/200 kHz
• DownVu: 455/800 kHz
• Transmit power: 500W RMS
• Max. Depth: 2300' (freshwater); 1100' (saltwater)

In The Box
• echoMAP CHIRP 43dv with U.S. LakeVu HD
• Power/data cable
• Tilt/swivel mount
• GT20-TM transducer
• Transom mount
• Trolling motor mount
• Hardware
• Documentation
  • 4.3" color display with keypad control
  • Preloaded with LakeVu HD maps
  • Includes Quickdraw Contours map creation software
  • Intermal 5 Hz GPS
  • Includes Garmin GT20 transducer
Specs
Accepts Data Cards
Yes
Antenna
Internal
Dimensions
4" x 6.6" x 1.8"
Display Resolution
480 x 272
Display Size
4.3" diag.
Display Type
WQVGA
Included Cartography
LakeVu HD
Max. Depth
2300.00 ft
Model Number
echoMAP CHIRP 43dv
Network/Interface
NMEA 0183
Operating Frequency
CHIRP 77/200/455/800kHz
Power Output
500.00 W
Speed
GPS Speed
Temp
Yes
Transducer
GT20 Transom-Mount
Waterproof
Yes
Unit Weight
4.00 lb
Brand
Garmin
