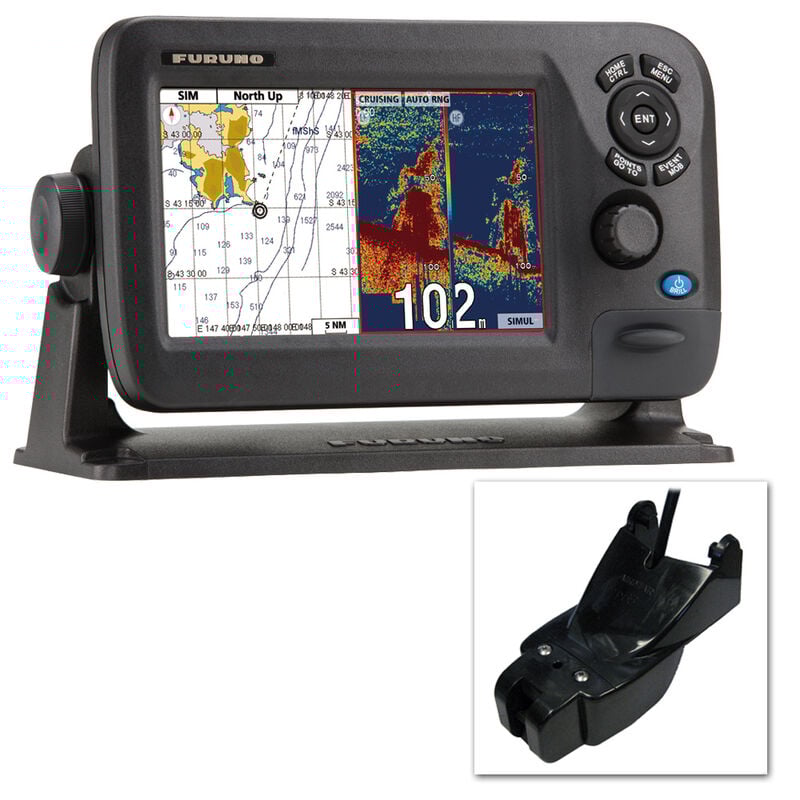

Furuno GP1870F Color GPS Chartplotter/Fishfinder Combo With TM Transducer
Item No. 328922
Furuno GP1870F Color GPS Chartplotter/Fishfinder Combo With TM Transducer

Furuno GP1870F Color GPS Chartplotter/Fishfinder Combo With TM Transducer

  • bvseo_sdk, dw_cartridge, 17.1.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 69ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = '{0}', msg = {1};
Item No. 328922
$864.49 $909.99
Product Actions

This item is excluded from all discounts and promotions.

This item is currently not available.

Additional Information
The fully integrated GP1870F GPS/Chartplotter/Fishfinder is compact, waterproof and durable. The GP1870F Chartplotter features an internal antenna for ease of installation. Its dual-range display allows you to view both short and long ranges of your chart simultaneously in a split-screen presentation. Furuno's RotoKey interface allows for simple and stress-free operation. Turn the RotoKey for a finely stepped zoom control, or press the knob for full access to the GP1870F controls. The LCD screen allows for viewing from virtually any angle, even while wearing polarized sunglasses, plus the screen is bonded to ensure fog-free operation. The GP1870F supports C-MAP 4D by Jeppessen charts.

The GP1870F incorporates a powerful 600W/1kW Furuno Fishfinder with a host of advanced features. Post-Processing Gain Control allows you to view changes to the Gain setting immediately for all returns on the screen, making it easier than ever to dial in your fishfinder for local conditions. Furuno's Bottom Discrimination feature enables the unit to indicate if a major component of the bottom is mud, sand, gravel, or rocks. The Bottom Discrimination function provides you with valuable information to locate rich fishing grounds while boosting your catch of the day. Plus, in order to assess individual fish size, the echo strength from the fish can be computed and turned into fish size display on the screen.

GP1870F Chartplotter/Fishfinder Features:
• Bright 7" LCD gives excellent readability, even in direct sunlight
• LCD and AR glass are bonded together to ensure fog-free operation
• Clear visibility when wearing polarized sunglasses
• Internal GPS antenna for simple and easy installation
• Standard C-Map 4D chart available on SD card
• RotoKey revolving menu and familiar point-and-click operation
• Internal memory: Waypoint/Track 30,000 points, Route 1,000 routes
• Incorporates the legendary 600W/1kW fishfinder equipped with Furuno's latest digital fishfinder technology
• Post-processing Gain Control applied to all echoes displayed on the screen
• White Line function discriminates fish lying near the bottom

Transducer Features:
• Plastic Transom-Mount Multisensor
• 600 Watts
• 50/200 kHz
• 45/11 degree Beam Angles
• Plastic Transom Mount with Temperature and Removable Speed Assembly
• 30' Cable with 10-Pin Connector
Show moreShow less
  • Compact, waterproof, and durable
  • Internal antenna for easy installation
  • Supports C-MAP 4D cartography
  • Bottom discrimination
  • Plastic transducer with transom-mount
  • Accepts Data Cards Yes
    Antenna Internal
    Dimensions 9.9"W x 5.8"H x 2.2"D
    Display Resolution 800 x 480
    Display Size 7" diag.
    Included Cartography C-MAP 4D
    Max. Depth 5000 ft
    Model Number GP1870F
    Operating Frequency 50/200 kHz
    Power Output 600 W
    Sonar Coverage 45°/11°
    Speed GPS Speed
    Temp Yes
    Transducer Dual Beam Transom-Mount
    Waterproof Yes
    Unit Weight 0.00 lb
    • bvseo_sdk, dw_cartridge, 17.1.0, p_sdk_3.2.0
    • CLOUD, getContent, 8ms
    • reviews, product
    • bvseo-msg: Unsuccessful GET. status = '{0}', msg = {1};

    Does the GP1870F chart plotter come with larger screen, 9" or 10"?

    Asked by: Eagle1
    Thank you for your question. The the GP1870F is the largest of the GP series. The 9/10" units start in the Furuno NavNet series of network able chartplotters.
    Answered by: Glenn
    Date published: 2016-10-31
