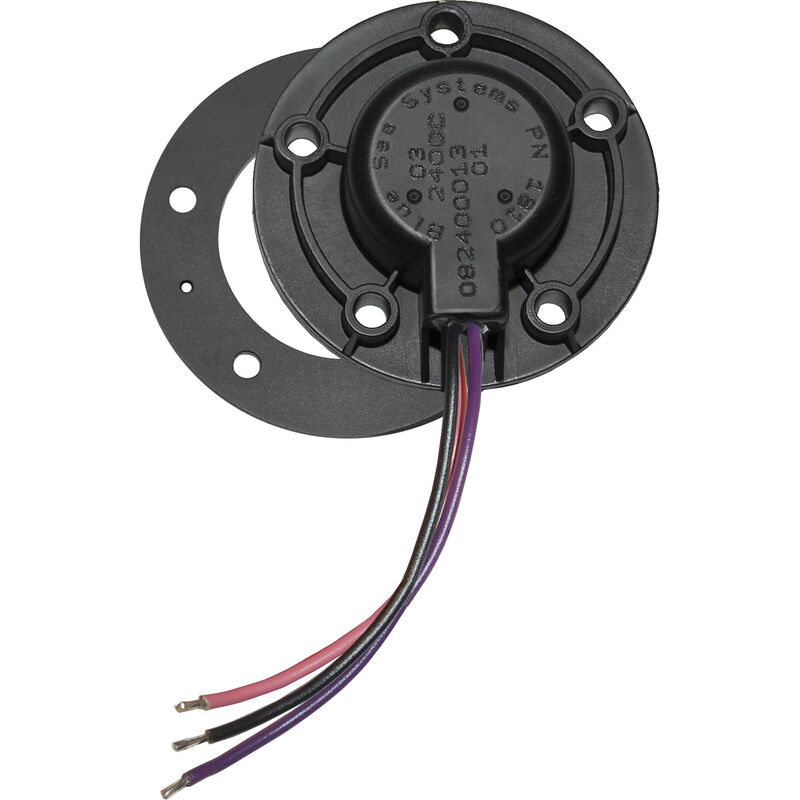

Blue Sea Systems Vessel Systems Monitor Tank Sender for Gas Only
Item No. 350517
Images
Details
https://www.overtons.com/blue-sea-systems-vessel-systems-monitor-tank-sender-for-gas-only-350517.html
Blue Sea Systems Vessel Systems Monitor Tank Sender for Gas Only
$115.99
$128.99
Save $13.00
(
10% Off
)
Additional Information
Features
The Blue Sea Systems Tank Sender for Gas is made for use with the Vessel Systems Monitor VSM 422 (item #1087535). This accurate sender can be precisely calibrated for each tank. The reliable Fluid-Trac is non-contacting so there are no mechanical moving parts that can wear and cause intermittent or complete signal loss. Digital filtering eliminates errors due to liquids sloshing in mobile tanks.
Limitations and Considerations for Mounting the Ultrasonic Tank Senders
• Senders are calibrated to the VSM 422 and will not function with other monitors.
• Senders must be mounted at least 4" from a tank side or baffle.
• Tank floor must not be sloped.
• Tanks must not be deeper than 24".
• Sender must be mounted perpendicular to the surface of the liquid.
• The sender negative connection should be connected as directly as possible to the main negative bus.
Specs
• Operating Current: 40mA @ 12V, 45mA @24V
• Supply Voltage: 10-32V DC
• Weight: 0.25 lbs.
Blue Sea Systems No. 1811
Show moreShow less
Limitations and Considerations for Mounting the Ultrasonic Tank Senders
• Senders are calibrated to the VSM 422 and will not function with other monitors.
• Senders must be mounted at least 4" from a tank side or baffle.
• Tank floor must not be sloped.
• Tanks must not be deeper than 24".
• Sender must be mounted perpendicular to the surface of the liquid.
• The sender negative connection should be connected as directly as possible to the main negative bus.
Specs
• Operating Current: 40mA @ 12V, 45mA @24V
• Supply Voltage: 10-32V DC
• Weight: 0.25 lbs.
Blue Sea Systems No. 1811
- For use with Vessel Systems Monitor VSM 422
- Can be precisely calibrated for each tank
- No mechanical parts to wear or cause signal loss
- Digital filtering eliminates error due to sloshing
Specs
| Unit Weight | 0.22 lb |
|---|---|
| Brand | Blue Sea Systems |
WARNING: Cancer and Reproductive Harm
For more information, go to www.P65Warnings.ca.gov/product.
