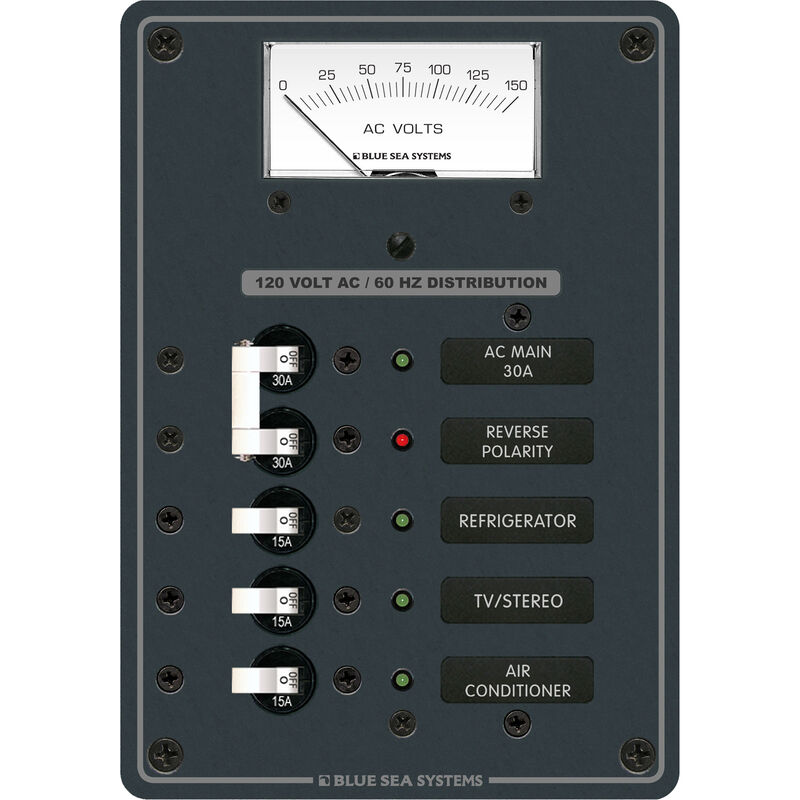

Blue Sea Systems Traditional Metal Panel, AC Main + 3 Positions, AC Voltmeter
Item No. 350755
Images
Details
https://www.overtons.com/blue-sea-systems-traditional-metal-panel-ac-main-3-positions-ac-voltmeter-350755.html
Blue Sea Systems Traditional Metal Panel, AC Main + 3 Positions, AC Voltmeter
$275.29
$305.99
Save $30.70
(
10% Off
)
Additional Information
Features
The Blue Sea Systems Traditional Metal Panel is fully pre-wired with all hot, neutral, and safety ground buses installed. ON indicating LEDs are installed in all circuit positions. Red reverse polarity indicating LED. All circuit label positions are backlit.
Includes
• 1 AC Voltmeter, 0 to 150V (Blue Sea No. 9353)
• 3 A-Series White Toggle Circuit Breakers, Single Pole 15A Branch (Blue Sea No. 7210)
• 1 A-Series White Toggle Circuit Breaker, Double Pole 30A Main (Blue Sea No. 7238)
• 4 Green LEDs, 120V AC (Blue Sea No. 8034)
• 1 Red LED, 120V AC (Blue Sea No. 8066)
• Basic AC Panel 30 Label Set (Blue Sea No. 8031)
Specifications
• Positions: 3
• Nominal Voltage: 120V AC
• Overall: 7.5"H x 5.25"W
Blue Sea Systems No. 8043
Show moreShow less
Includes
• 1 AC Voltmeter, 0 to 150V (Blue Sea No. 9353)
• 3 A-Series White Toggle Circuit Breakers, Single Pole 15A Branch (Blue Sea No. 7210)
• 1 A-Series White Toggle Circuit Breaker, Double Pole 30A Main (Blue Sea No. 7238)
• 4 Green LEDs, 120V AC (Blue Sea No. 8034)
• 1 Red LED, 120V AC (Blue Sea No. 8066)
• Basic AC Panel 30 Label Set (Blue Sea No. 8031)
Specifications
• Positions: 3
• Nominal Voltage: 120V AC
• Overall: 7.5"H x 5.25"W
Blue Sea Systems No. 8043
- Fully pre-wired
- ON indicating LEDs in all circuit positions
- Red reverse polarity indicating LED
- Label positions are backlit
- 7.5"H x 5.25"W
Specs
| Unit Weight | 2.05 lb |
|---|---|
| Brand | Blue Sea Systems |
