Blue Sea Systems SafetyHub 150 Fuse Block
$120.49
FREE Shipping
Estimated delivery in 5-7 days
Estimated delivery in 5-7 days
FREE In-Store Pickup
Select store
- This item is currently not available
- Delivery to Change Address
- Delivery Fee Details
This item is excluded from all discounts and promotions.
Minimum order quantity of
1
Maximum order quantity of
100
Must purchase in increments of
1
Special Offers
$30 off $199+ With Code: SAVE30
Save $30 on your order of $199+ with code: SAVE30 added to cart. Some exclusions apply. Not combinable with other promotions. Greatest discount will be applied in cart. Offer valid 4/3-4/6/26.
Return Policy
We believe in offering the very best value, quality, and selection. Plus, we want you to enjoy your purchase! In the event you wish to send a product back to us, you may return most unused items for a refund or exchange, minus shipping, within 90 days from the date of purchase unless noted below under exceptions and exclusions. Refunds are issued to the original form of payment.
Features

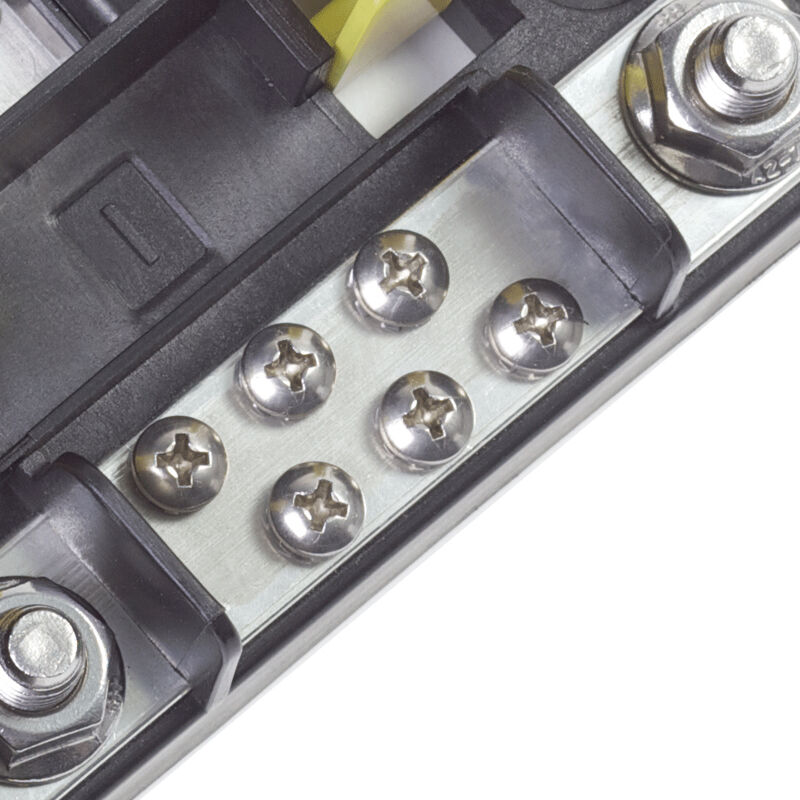

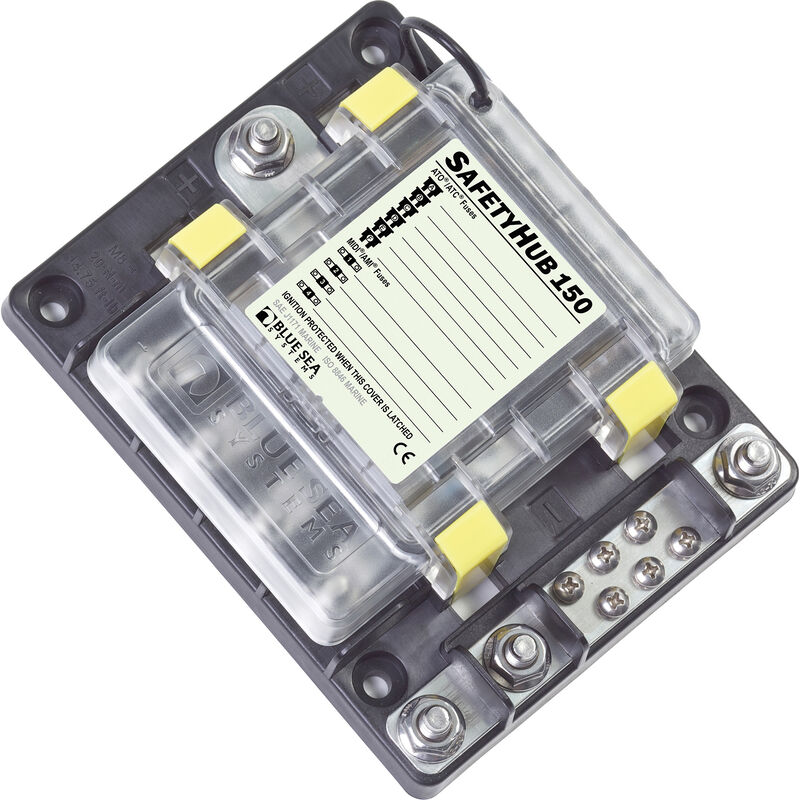

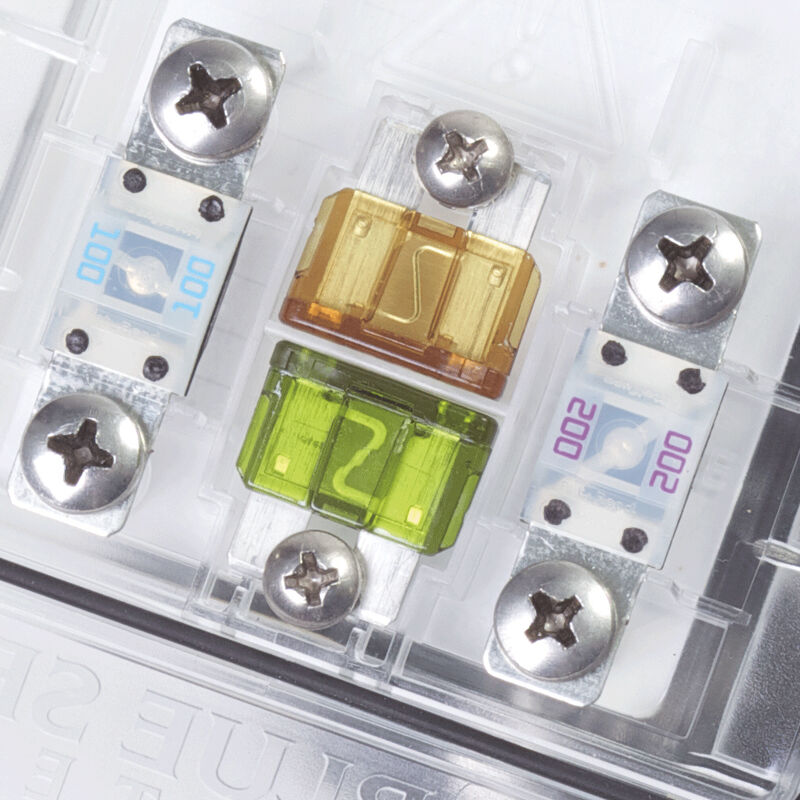

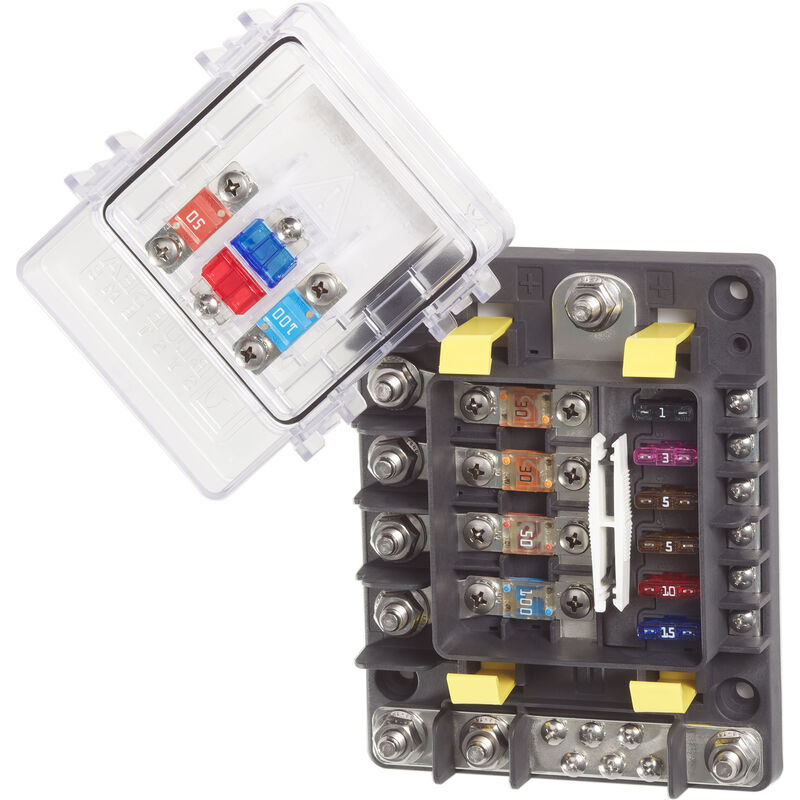

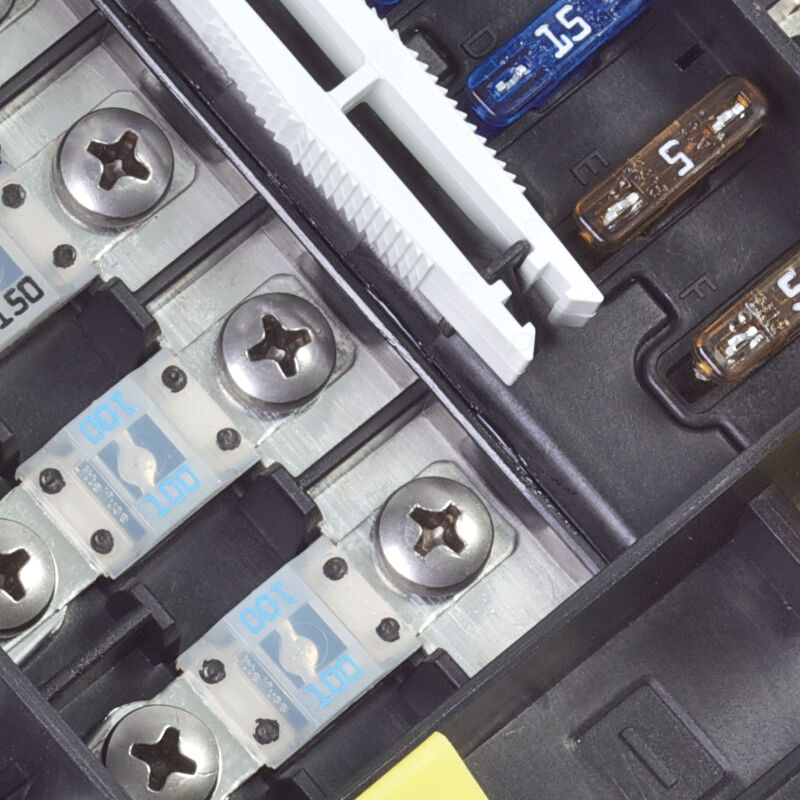

The Blue Sea Systems SafetyHub 150 Fuse Block is an ignition-protected fuse block with screw termination that's safe for use on gasoline powered boats. The SafetyHub 150 accepts four AMI or MIDI Fuses for high-amp circuits up to 200A and accepts six ATO or ATC Fuses for circuits up to 30A including bilge pumps, electronics, and lights. Sealed cover protects fuses from the harsh marine environment and satisfies ABYC/USCG insulation requirements. Negative bus provides common location for negative connection. Circuit identification label with write-on capability. Fuse puller easily removes ATO or ATC Fuses. Cover provides storage space for two spare ATO or ATC and two spare AMI or MIDI fuses and mounting screws. One-piece stainless flange nuts ensure safe and secure connections. Fuses not included.
• Circuits: 10
• Maximum Operating Amperage Combined: 280A
• Maximum Operating Voltage: 32V DC
• Minimum Cable Size To Meet Ratings: 4/0 AWG
• Recommended Ring Terminal: 5/16" (M8)
• Stud Size: M8
• Stud Torque: 180 in.-lb. (20.34 Nm)
AMI or MIDI Fuse Block
• Maximum Operating Amperage per Block: 280A
• Maximum Operating Amperage per Circuit: 170A
• Minimum Cable Size To Meet Ratings: 2/0 AWG
• Screw Size: M5
• Screw Torque, M5: 27 in.-lb. (3.05 Nm)
ATO or ATC Fuse Block
• Maximum Operating Amperage per Block: 50A
• Maximum Operating Amperage per Circuit: 25A
• Screw Size: #8-32
• Screw Torque, #8-32: 18 in.-lb. (2.03 Nm)
• Overall: 6.50"L x 5.08"W x 1.87"H
Blue Sea Systems No. 7748
• Circuits: 10
• Maximum Operating Amperage Combined: 280A
• Maximum Operating Voltage: 32V DC
• Minimum Cable Size To Meet Ratings: 4/0 AWG
• Recommended Ring Terminal: 5/16" (M8)
• Stud Size: M8
• Stud Torque: 180 in.-lb. (20.34 Nm)
AMI or MIDI Fuse Block
• Maximum Operating Amperage per Block: 280A
• Maximum Operating Amperage per Circuit: 170A
• Minimum Cable Size To Meet Ratings: 2/0 AWG
• Screw Size: M5
• Screw Torque, M5: 27 in.-lb. (3.05 Nm)
ATO or ATC Fuse Block
• Maximum Operating Amperage per Block: 50A
• Maximum Operating Amperage per Circuit: 25A
• Screw Size: #8-32
• Screw Torque, #8-32: 18 in.-lb. (2.03 Nm)
• Overall: 6.50"L x 5.08"W x 1.87"H
Blue Sea Systems No. 7748
- Ignition protected
- Accepts 4 AMI or MIDI fuses for high-amp circuits
- Accepts 6 ATO or ATC fuses for circuits up to 30A
- Sealed cover satisfies ABYC/USCG requirements
- Maximum combined amperage: 280A
Specs
Unit Weight
2.00 lb
Brand
Blue Sea Systems
MFG Part No.
7748
