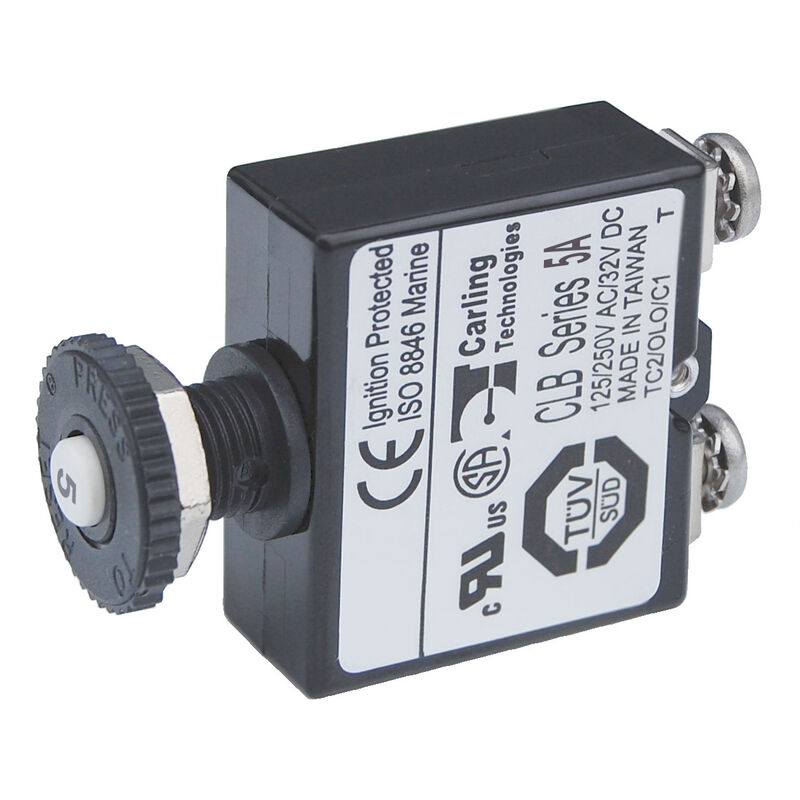

Blue Sea Systems Push-Button Reset-Only Screw Terminal Circuit Breaker, 5 Amps
$5.69
FREE Shipping over $99
Estimated delivery in 5-7 days
Estimated delivery in 5-7 days
- This item is currently not available
- Delivery to Change Address
- Delivery Fee Details
This item is excluded from all discounts and promotions.
Minimum order quantity of
1
Maximum order quantity of
100
Must purchase in increments of
1
Return Policy
We believe in offering the very best value, quality, and selection. Plus, we want you to enjoy your purchase! In the event you wish to send a product back to us, you may return most unused items for a refund or exchange, minus shipping, within 90 days from the date of purchase unless noted below under exceptions and exclusions. Refunds are issued to the original form of payment.
Features
The Blue Sea Systems Push-Button Reset-Only Circuit Breaker provides ignition protection in a compact design. Great for tight spaces that require high-density circuit protection configurations. Push-to-reset operation has a "trip-free" design that cannot be held "ON" during fault current conditions. Ignition-protected breaker is safe for installation aboard gasoline powered boats.
This branch circuit breaker can also be used for 24-hour circuit protection. Quick-connect terminal-style circuit breaker is incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels. Meets CE, ISO 8846 Marine, TDV, UL 1077, UL 1500 regulatory specifications.
• Amperage: 5 Amps
• Maximum Voltage: 32V DC
• Circuit Breaker Type: Thermal trip, manual push-button reset only
• Terminal Type: #8 Screw
• Mounting: Panel-Mount 3/8-27 UNS
• Interrupt Capacity: 3000A @ 14.7V / 2500A @ 28V
• Minimum Operating Temperature: -10°C (14°F)
• Maximum Operation Temperature: 60°C (140°F)
• Screw Terminal Torque: 6 in.-lb. (0.68 Nm)
• Overall Dimensions: 2.307" x 1.379" x 0.571"
Blue Sea Systems No. 2130
This branch circuit breaker can also be used for 24-hour circuit protection. Quick-connect terminal-style circuit breaker is incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels. Meets CE, ISO 8846 Marine, TDV, UL 1077, UL 1500 regulatory specifications.
• Amperage: 5 Amps
• Maximum Voltage: 32V DC
• Circuit Breaker Type: Thermal trip, manual push-button reset only
• Terminal Type: #8 Screw
• Mounting: Panel-Mount 3/8-27 UNS
• Interrupt Capacity: 3000A @ 14.7V / 2500A @ 28V
• Minimum Operating Temperature: -10°C (14°F)
• Maximum Operation Temperature: 60°C (140°F)
• Screw Terminal Torque: 6 in.-lb. (0.68 Nm)
• Overall Dimensions: 2.307" x 1.379" x 0.571"
Blue Sea Systems No. 2130
- Compact design for high-density circuit protection
- Push-to-reset operation
- "Trip-free" design
- Ignition protected
- Quick-connect screw terminal style
Specs
Unit Weight
0.10 lb
Brand
Blue Sea Systems
MFG Part No.
2130
