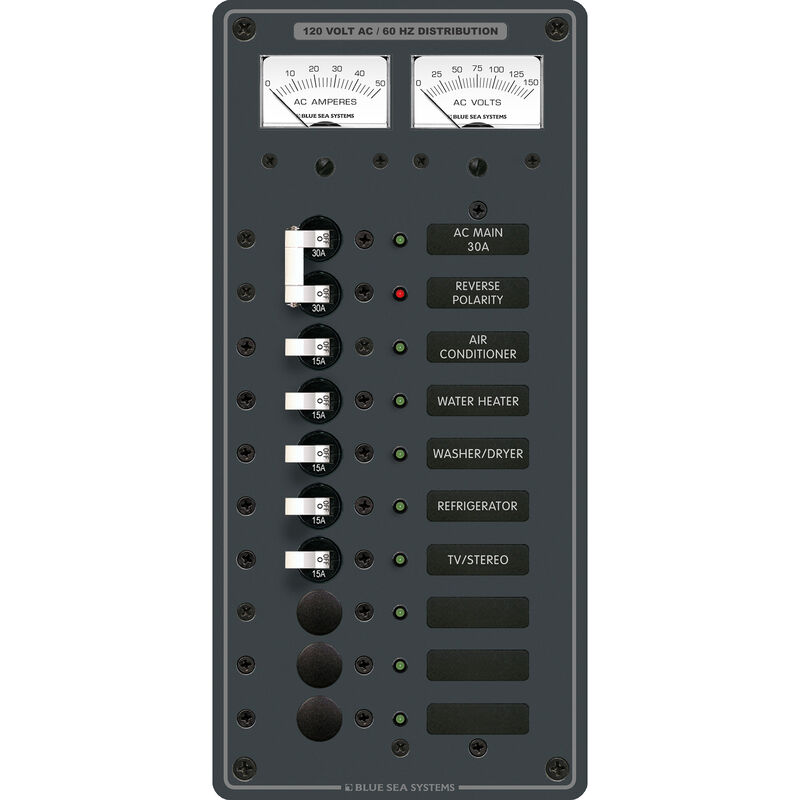

Blue Sea Systems Panel, AC Main + 8 Positions, Micro Voltmeter and Ammeter
$466.99
FREE Shipping
Estimated delivery in 5-7 days
Estimated delivery in 5-7 days
FREE In-Store Pickup
Select store
- This item is currently not available
- Delivery to Change Address
- Delivery Fee Details
This item is excluded from all discounts and promotions.
Minimum order quantity of
1
Maximum order quantity of
100
Must purchase in increments of
1
Special Offers
$30 off $199+ With Code: SAVE30
Save $30 on your order of $199+ with code: SAVE30 added to cart. Some exclusions apply. Not combinable with other promotions. Greatest discount will be applied in cart. Offer valid 4/3-4/6/26.
Return Policy
We believe in offering the very best value, quality, and selection. Plus, we want you to enjoy your purchase! In the event you wish to send a product back to us, you may return most unused items for a refund or exchange, minus shipping, within 90 days from the date of purchase unless noted below under exceptions and exclusions. Refunds are issued to the original form of payment.
Features
The Blue Sea Systems Panel is fully pre-wired with all hot, neutral, and safety ground buses installed. ON indicating LEDs are installed in all circuit positions. Red reverse polarity indicating LED. All circuit label positions are backlit.
Includes
• 1 Micro AC Voltmeter, 0 to 150V AC (Blue Sea No. 8244)
• 1 Micro AC Ammeter, 0 to 50A with Coil (Blue Sea No. 8246)
• 5 A-Series White Toggle Circuit Breakers, Single Pole 15A Branch (Blue Sea No. 7210)
• 1 A-Series White Toggle Circuit Breaker, Double Pole 30A Main (Blue Sea No. 7238)
• 9 Green LEDs, 120V AC (Blue Sea No. 8034)
• 1 Red LED, 120V AC (Blue Sea No. 8066)
• Basic AC Panel 30 Label Set (Blue Sea No. 8031)
Specifications
• Positions: 8
• Nominal Voltage: 120V AC
• Overall: 11.25"H x 5.25"W
Blue Sea Systems No. 8074
Includes
• 1 Micro AC Voltmeter, 0 to 150V AC (Blue Sea No. 8244)
• 1 Micro AC Ammeter, 0 to 50A with Coil (Blue Sea No. 8246)
• 5 A-Series White Toggle Circuit Breakers, Single Pole 15A Branch (Blue Sea No. 7210)
• 1 A-Series White Toggle Circuit Breaker, Double Pole 30A Main (Blue Sea No. 7238)
• 9 Green LEDs, 120V AC (Blue Sea No. 8034)
• 1 Red LED, 120V AC (Blue Sea No. 8066)
• Basic AC Panel 30 Label Set (Blue Sea No. 8031)
Specifications
• Positions: 8
• Nominal Voltage: 120V AC
• Overall: 11.25"H x 5.25"W
Blue Sea Systems No. 8074
- Fully pre-wired
- ON indicating LEDs in all circuit positions
- Red reverse polarity indicating LED
- Label positions are backlit
- 11.25"H x 5.25"W
Specs
Unit Weight
3.25 lb
Brand
Blue Sea Systems
MFG Part No.
8074
