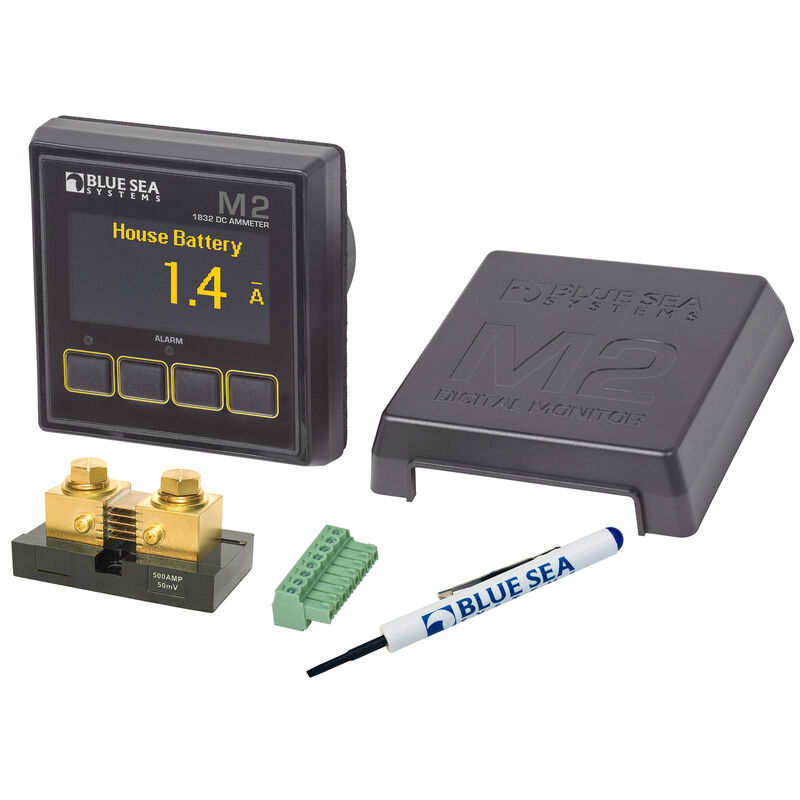

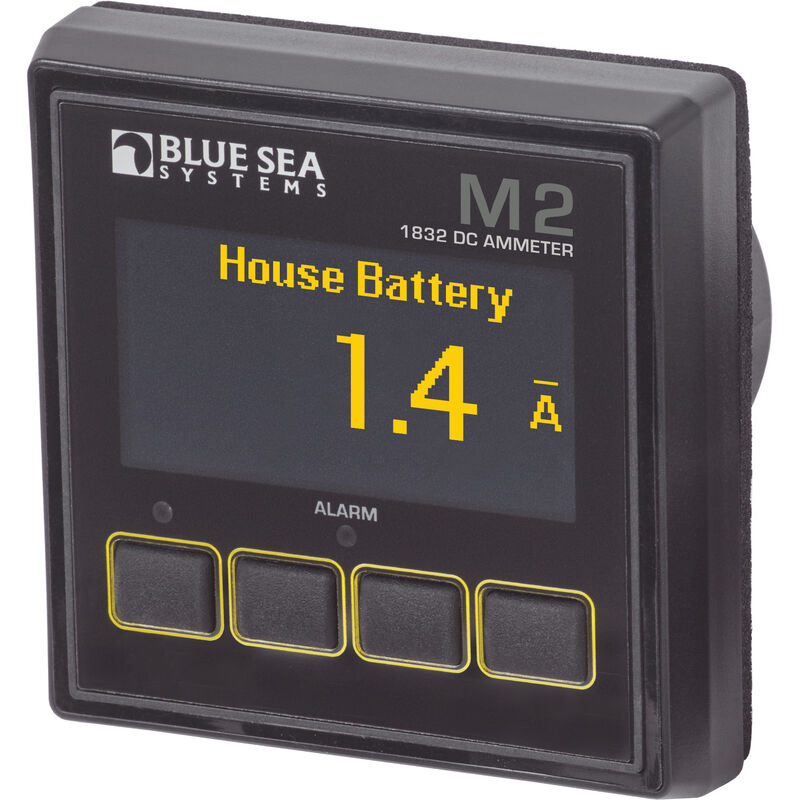

Blue Sea Systems M2 DC Ammeter OLED Digital Monitor
$316.69
FREE Shipping
Estimated delivery in 5-7 days
Estimated delivery in 5-7 days
FREE In-Store Pickup
Select store
- This item is currently not available
- Delivery to Change Address
- Delivery Fee Details
This item is excluded from all discounts and promotions.
Minimum order quantity of
1
Maximum order quantity of
100
Must purchase in increments of
1
Special Offers
$30 off $199+ With Code: SAVE30
Save $30 on your order of $199+ with code: SAVE30 added to cart. Some exclusions apply. Not combinable with other promotions. Greatest discount will be applied in cart. Offer valid 4/3-4/6/26.
Return Policy
We believe in offering the very best value, quality, and selection. Plus, we want you to enjoy your purchase! In the event you wish to send a product back to us, you may return most unused items for a refund or exchange, minus shipping, within 90 days from the date of purchase unless noted below under exceptions and exclusions. Refunds are issued to the original form of payment.
Features
The Blue Sea Systems M2 DC Ammeter monitors DC amperage on a large, bright display. This ammeter accurately measures and monitors the amperage of your DC system (measures 2 circuits). Supports programmable shunt ratios.
• Auto-dimming, bright OLED display is easy to read
• Easy to adjust
• 80dB alarm
• Isolated MOSFET relay
Blue Sea Systems M2 OLED Digital Monitors
Blue Sea Systems M2 OLED Digital Monitors are designed to accurately measure essential electrical system parameters. The high-contrast, high-resolution display is visible from wide viewing angles. It's also visible through polarized glasses. MOSFET External Circuit Relay (ECR) controls external circuits. Features adjustable audible alarms, auto-dimming display, and waterproof seal on the unit face (surface mount only). Meets IP66 standards.
DC Ammeter
Monitors current on two circuits.
Specifications
• Display Size: 2.17" x 1.10" (55mm x 28mm)
• Power Supply: 7V-70V DC
• Power Consumption: 0.3W-1.0W (varies with voltage, display intensity, and sleep mode)
• Overall Dimensions: 3.24"W x 3.24"H (82.4mm x 82.4mm)
• Panel Mount: 1" maximum panel thickness
• Mounts in a 2-1/8" (54mm) dia. hole
Current
• Shunt Included: 500A / 50mV
• Range: -500A to 500A
• Resolution (100 to 500): 1A
• Resolution (0.0 to 99.9): 0.1A
• Alarm / Relay Activation: High and Low Voltage, High Current, and Low Battery
Blue Sea Systems No. 1832
• Auto-dimming, bright OLED display is easy to read
• Easy to adjust
• 80dB alarm
• Isolated MOSFET relay
Blue Sea Systems M2 OLED Digital Monitors
Blue Sea Systems M2 OLED Digital Monitors are designed to accurately measure essential electrical system parameters. The high-contrast, high-resolution display is visible from wide viewing angles. It's also visible through polarized glasses. MOSFET External Circuit Relay (ECR) controls external circuits. Features adjustable audible alarms, auto-dimming display, and waterproof seal on the unit face (surface mount only). Meets IP66 standards.
DC Ammeter
Monitors current on two circuits.
Specifications
• Display Size: 2.17" x 1.10" (55mm x 28mm)
• Power Supply: 7V-70V DC
• Power Consumption: 0.3W-1.0W (varies with voltage, display intensity, and sleep mode)
• Overall Dimensions: 3.24"W x 3.24"H (82.4mm x 82.4mm)
• Panel Mount: 1" maximum panel thickness
• Mounts in a 2-1/8" (54mm) dia. hole
Current
• Shunt Included: 500A / 50mV
• Range: -500A to 500A
• Resolution (100 to 500): 1A
• Resolution (0.0 to 99.9): 0.1A
• Alarm / Relay Activation: High and Low Voltage, High Current, and Low Battery
Blue Sea Systems No. 1832
- Monitors current on two circuits
- Supports programmable shunt ratios
- Auto-dimming, bright OLED display
- 80dB alarm
- Isolated MOSFET relay
Specs
Unit Weight
1.25 lb
Brand
Blue Sea Systems
MFG Part No.
1832
