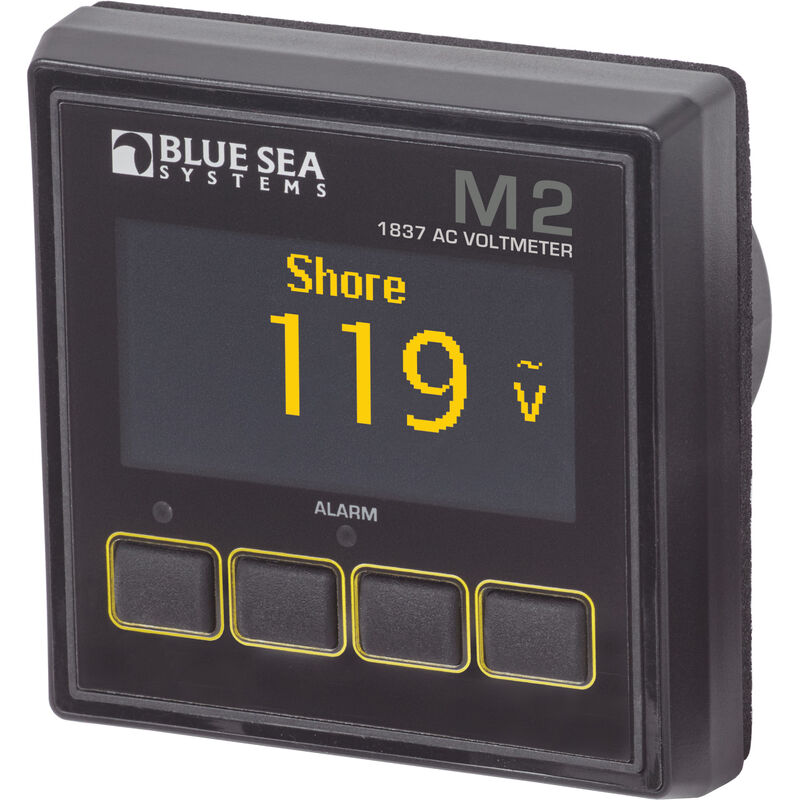

Blue Sea Systems M2 AC Voltmeter OLED Digital Monitor
Item No. 350525
Images
Details
https://www.overtons.com/blue-sea-systems-m2-ac-voltmeter-oled-digital-monitor-350525.html
Blue Sea Systems M2 AC Voltmeter OLED Digital Monitor
$316.69
$351.99
Save $35.30
(
10% Off
)
Additional Information
Features
The Blue Sea Systems M2 AC Voltmeter accurately monitors AC voltage on a large, bright display. Measures 2 independent circuits or 1 double phase circuit.
• Auto-dimming, bright OLED display is easy to read
• Easy to adjust
• 80dB alarm
• Isolated MOSFET relay
Blue Sea Systems M2 OLED Digital Monitors
Blue Sea Systems M2 OLED Digital Monitors are designed to accurately measure essential electrical system parameters. The high-contrast, high-resolution display is visible from wide viewing angles. It's also visible through polarized glasses. MOSFET External Circuit Relay (ECR) controls external circuits. Features adjustable audible alarms, auto-dimming display, and waterproof seal on the unit face (surface mount only). Meets IP66 standards.
AC Voltmeter
Monitors voltage on two circuits or both legs of 120/240V.
Specifications
• Display Size: 2.17" x 1.10" (55mm x 28mm)
• Power Supply: 7V-70V DC
• Power Consumption: 0.3W-1.0W (varies with voltage, display intensity, and sleep mode)
• Overall Dimensions: 3.24"W x 3.24"H (82.4mm x 82.4mm)
• Panel Mount: 1" maximum panel thickness
• Mounts in a 2-1/8" (54mm) dia. hole
Voltage
• Range: 50V to 250V AC (RMS)
• Resolution: 1V AC
• Voltage Accuracy: ± 1.0%
• Alarm / Relay Activation: High and Low Voltage
Blue Sea Systems No. 1837
Show moreShow less
• Auto-dimming, bright OLED display is easy to read
• Easy to adjust
• 80dB alarm
• Isolated MOSFET relay
Blue Sea Systems M2 OLED Digital Monitors
Blue Sea Systems M2 OLED Digital Monitors are designed to accurately measure essential electrical system parameters. The high-contrast, high-resolution display is visible from wide viewing angles. It's also visible through polarized glasses. MOSFET External Circuit Relay (ECR) controls external circuits. Features adjustable audible alarms, auto-dimming display, and waterproof seal on the unit face (surface mount only). Meets IP66 standards.
AC Voltmeter
Monitors voltage on two circuits or both legs of 120/240V.
Specifications
• Display Size: 2.17" x 1.10" (55mm x 28mm)
• Power Supply: 7V-70V DC
• Power Consumption: 0.3W-1.0W (varies with voltage, display intensity, and sleep mode)
• Overall Dimensions: 3.24"W x 3.24"H (82.4mm x 82.4mm)
• Panel Mount: 1" maximum panel thickness
• Mounts in a 2-1/8" (54mm) dia. hole
Voltage
• Range: 50V to 250V AC (RMS)
• Resolution: 1V AC
• Voltage Accuracy: ± 1.0%
• Alarm / Relay Activation: High and Low Voltage
Blue Sea Systems No. 1837
- Monitors 2 independent or 1 double phase circuit
- Auto-dimming, bright OLED display
- Easy to adjust
- 80dB alarm
- Isolated MOSFET relay
Specs
| Unit Weight | 0.70 lb |
|---|---|
| Brand | Blue Sea Systems |
