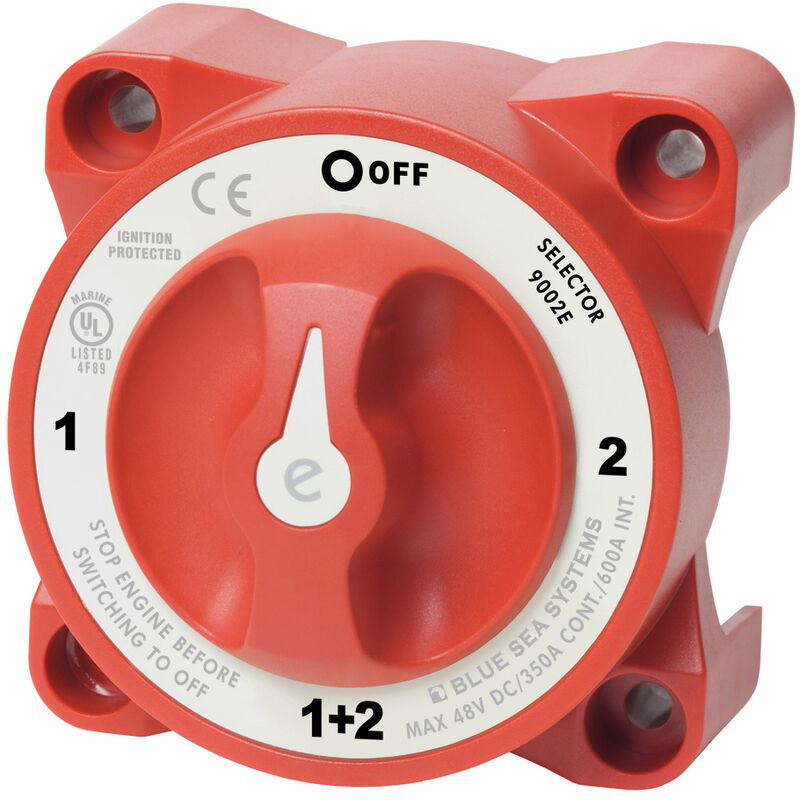

Blue Sea Systems e-Series 9002e Selector 4-Position Battery Switch w/AFD
Item No. 316455
Images
Blue Sea Systems e-Series 9002e Selector 4-Position Battery Switch w/AFD
Details

Blue Sea Systems e-Series 9002e Selector 4-Position Battery Switch w/AFD

  • bvseo_sdk, dw_cartridge, 17.1.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 74ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = '{0}', msg = {1};
Item No. 316455
$38.79 $39.99 Compare at $44.99
Product Actions

In Stock

Additional Information
These ignition protected battery switches are designed for inboard and diesel engines. The cases feature luminous face plate and pointer and an easy-grip knob, and allow surface or rear panel mounting. The one-piece terminal stud design never loosens over time. 3/8"-16 tin-plated copper studs offer maximum conductivity and corrosion-resistance. 7/8" stud length accepts 3/8" and M10 ring terminals. Mounting holes accept 1/4" screws and fit most PERKO and Guest battery switch hole patterns. Devices meet ABYC requirements and UL and SAE external ignition protection requirements, are UL-listed, and are waterproof rated to IP66. 3.85"H x 3.85"W x 3.097"D.

The 9002e includes Alternator Field Disconnect.

Selector 4-Position Battery Switches (9001e and 9002e) - Switch isolated battery banks to all loads or combine battery banks to all loads. Make-before-break contact design allows switching between battery banks without power interruption. 4 switch positions. 2 battery inputs.

Continuous Rating: 350 Amps
Intermittent Rating (5 min.): 600 Amps
Cranking Rating @ 10 sec: 2000 Amps
Cranking Rating @ 1 min: 1000 Amps
Terminal Stud Torque: 140 in-lb maximum
Cable Size (to meet requirements): 4/0 AWG
Cable Clearance: 1.1"
Weight: 1.15 lbs.
Show moreShow less
  • For inbord and diesel engines
  • Easy grip knob has luminous face plate and pointer
  • Ignition protected
  • One-piece terminal stud design never loosens
  • Includes Alternator Field Disconnect (AFD)
