Blue Sea Systems Class T Fuse Block With Insulating Cover, 110 to 200A
$69.19
Ship to Home
Delivery time calculated in checkout
Delivery time calculated in checkout
- This item is currently not available
FREE Standard Shipping over $99. | Good Sam Members: FREE Shipping over $69
This item is excluded from all discounts and promotions.
Minimum order quantity of
1
Maximum order quantity of
100
Must purchase in increments of
1
Return Policy
We believe in offering the very best value, quality, and selection. Plus, we want you to enjoy your purchase! In the event you wish to send a product back to us, you may return most unused items for a refund or exchange, minus shipping, within 90 days from the date of purchase unless noted below under exceptions and exclusions. Refunds are issued to the original form of payment.
Features

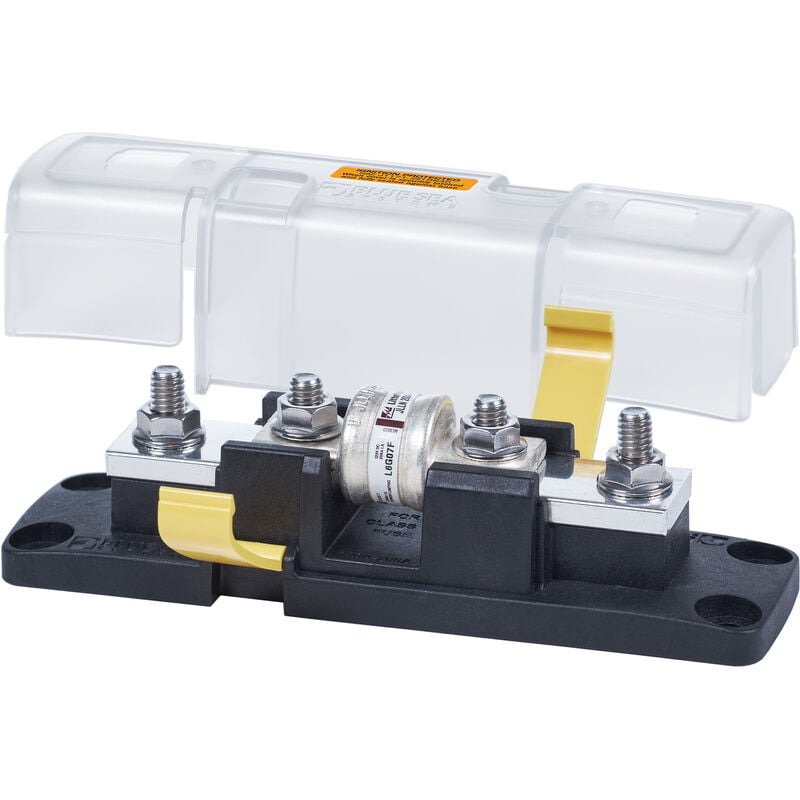

The Blue Sea Systems Class T Fuse Block allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics. The four stud design provides ample access around the connecting stud to install large cable lugs without obstruction from the fuse. The insulating cover satisfies ABYC/USCG insulation requirements. Cover breakouts allow wire access in any direction. The stud design ensures secure fuse mounting even with high heat. Stainless steel studs provide resistance to corrosion and high torque. One-piece stainless flange nuts ensure safe and secure connections. UL 94-V0 base resists high heat. Meets ISO 8846 and SAE J1171 marine regulatory specifications.
• Cable Size: Up to 4/0 AWG
• Ignition Protected
• Maximum Amperage: 200A
• Maximum Voltage: 160V DC
• Fuse Mounting Blocks: Tin-Plated Copper
• Terminal Stud Size: 1/4"-20 (M6)
Blue Sea Systems No. 5007100
• Cable Size: Up to 4/0 AWG
• Ignition Protected
• Maximum Amperage: 200A
• Maximum Voltage: 160V DC
• Fuse Mounting Blocks: Tin-Plated Copper
• Terminal Stud Size: 1/4"-20 (M6)
Blue Sea Systems No. 5007100
- Fast acting circuit protection
- Four stud design with ample access
- Clear insulating cover
- Breakouts allow wire access in any direction
- Stainless steel studs resist corrosion
Specs
Unit Weight
1.10 lb
Brand
Blue Sea Systems
MFG Part No.
5007100
