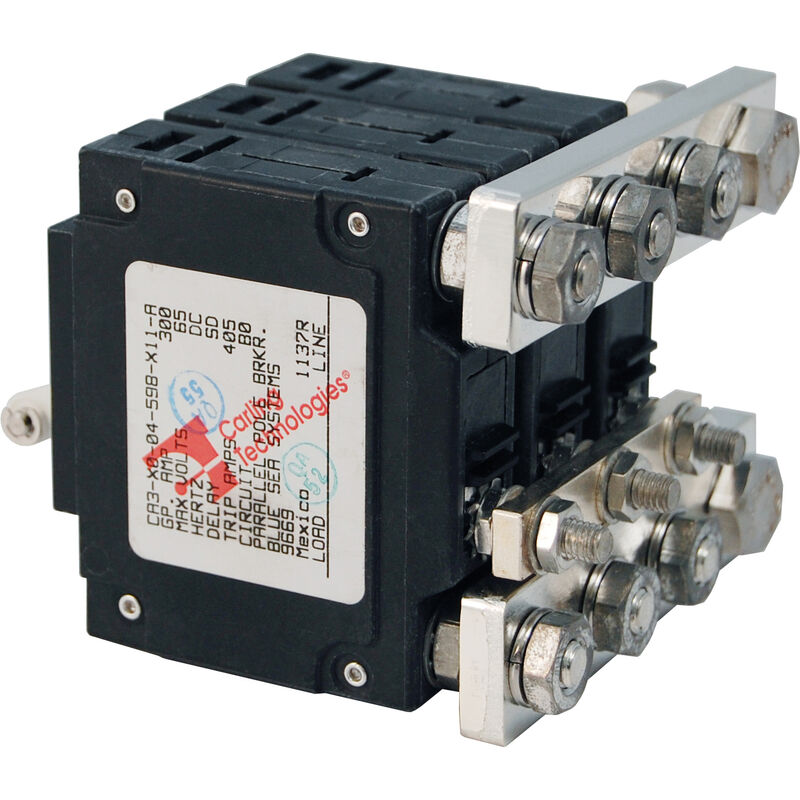

Blue Sea Systems C-Series Toggle Switch Circuit Breaker, Triple Pole 300 Amp
Item No. 350724
  • bvseo_sdk, dw_cartridge, 17.1.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 51ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = '{0}', msg = {1};
Images
Blue Sea Systems C-Series Toggle Switch Circuit Breaker, Triple Pole 300 Amp
Details

Blue Sea Systems C-Series Toggle Switch Circuit Breaker, Triple Pole 300 Amp

  • bvseo_sdk, dw_cartridge, 17.1.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 40ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = '{0}', msg = {1};
Item No. 350724
$128.24 $134.99
Save $6.75 ( 5% Off )
Product Actions

This item is currently not available.

Additional Information
The Blue Sea Systems C-Series Circuit Breaker is designed to provide overcurrent protection for inverters, bow thrusters, and windlasses by switching hot and neutral lines. This toggle circuit breaker combines switching and circuit protection into a single device. The "Trip Free" mechanism cannot be held closed after trip. Non-corrosive phenolic construction. Magnetic circuit breaker.

• Amperage: 300A DC
• Color: White
• Actuator Style: Toggle
• Poles: 3
• Maximum Voltage: 120V AC / 240V AC / 65V DC
• Circuit Breaker Type: Magnetic Hydraulic "Trip Free"
• Terminal Stud Torque: 35 in.-lb. (3.95 Nm)
• Interrupt Capacity: 5000A @ 65V DC
• Minimum Operating Temperature: -40°F (-40°C)
• Maximum Operating Temperature: 185°F (85°C)
• Mounting Screw: #6-32 Stainless Steel
• Mounting Screw Torque: 6 in.-lb. (0.68 Nm)
• Switching Cycles: 10,000
• Terminal Stud: 1/4-20 Tin-Plated Brass

Blue Sea Systems No. 7271
Show moreShow less
  • Overcurrent protection for inverters & windlasses
  • Switching and circuit protection in single device
  • "Trip Free" cannot be held closed after trip
  • Non-corrosive phenolic construction
Unit Weight 1.40 lb
Brand Blue Sea Systems
