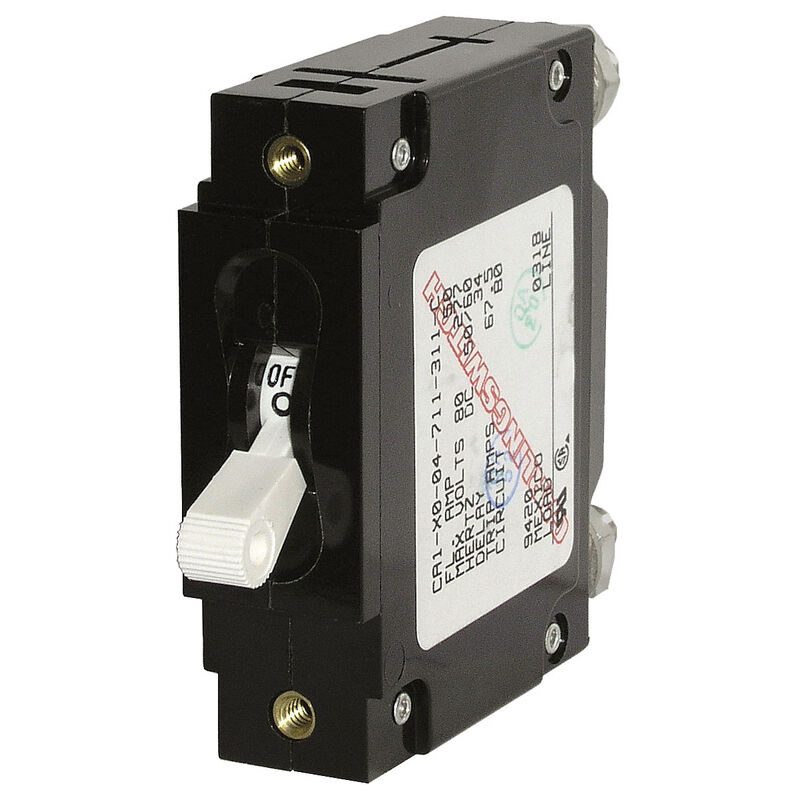

Blue Sea Systems C-Series Toggle Switch Circuit Breaker, Single Pole 20 Amp
$37.99
FREE Shipping over $99
Estimated delivery in 5-7 days
Estimated delivery in 5-7 days
FREE In-Store Pickup
Select store
- This item is currently not available
- Delivery to Change Address
- Delivery Fee Details
This item is excluded from all discounts and promotions.
Minimum order quantity of
1
Maximum order quantity of
100
Must purchase in increments of
1
Special Offers
$30 off $199+ With Code: SAVE30
Save $30 on your order of $199+ with code: SAVE30 added to cart. Some exclusions apply. Not combinable with other promotions. Greatest discount will be applied in cart. Offer valid 4/3-4/6/26.
Return Policy
We believe in offering the very best value, quality, and selection. Plus, we want you to enjoy your purchase! In the event you wish to send a product back to us, you may return most unused items for a refund or exchange, minus shipping, within 90 days from the date of purchase unless noted below under exceptions and exclusions. Refunds are issued to the original form of payment.
Features
The Blue Sea Systems C-Series Circuit Breaker is designed to provide overcurrent protection for inverters, bow thrusters, and windlasses by switching hot and neutral lines. This toggle circuit breaker combines switching and circuit protection into a single device. The "Trip Free" mechanism cannot be held closed after trip. Non-corrosive phenolic construction. Magnetic circuit breaker.
• Amperage: 20A AC / 20A DC
• Color: White
• Actuator Style: Toggle
• Poles: 1
• Maximum Voltage: 240V AC / 80V DC
• Circuit Breaker Type: Magnetic Hydraulic "Trip Free"
• Terminal Stud Torque: 35 in.-lb. (3.95 Nm)
• Interrupt Capacity: 5000A @ 125V AC / 5000A @ 240V AC / 10,000A @ 80V DC
• Minimum Operating Temperature: -40°F (-40°C)
• Maximum Operating Temperature: 185°F (85°C)
• Mounting Screw: #6-32 Stainless Steel
• Mounting Screw Torque: 6 in.-lb. (0.68 Nm)
• Switching Cycles: 10,000
• Terminal Stud: 1/4-20 Tin-Plated Brass
Blue Sea Systems No. 7353
• Amperage: 20A AC / 20A DC
• Color: White
• Actuator Style: Toggle
• Poles: 1
• Maximum Voltage: 240V AC / 80V DC
• Circuit Breaker Type: Magnetic Hydraulic "Trip Free"
• Terminal Stud Torque: 35 in.-lb. (3.95 Nm)
• Interrupt Capacity: 5000A @ 125V AC / 5000A @ 240V AC / 10,000A @ 80V DC
• Minimum Operating Temperature: -40°F (-40°C)
• Maximum Operating Temperature: 185°F (85°C)
• Mounting Screw: #6-32 Stainless Steel
• Mounting Screw Torque: 6 in.-lb. (0.68 Nm)
• Switching Cycles: 10,000
• Terminal Stud: 1/4-20 Tin-Plated Brass
Blue Sea Systems No. 7353
- Overcurrent protection for inverters & windlasses
- Switching and circuit protection in single device
- "Trip Free" cannot be held closed after trip
- Non-corrosive phenolic construction
Specs
Unit Weight
0.30 lb
Brand
Blue Sea Systems
MFG Part No.
7353
