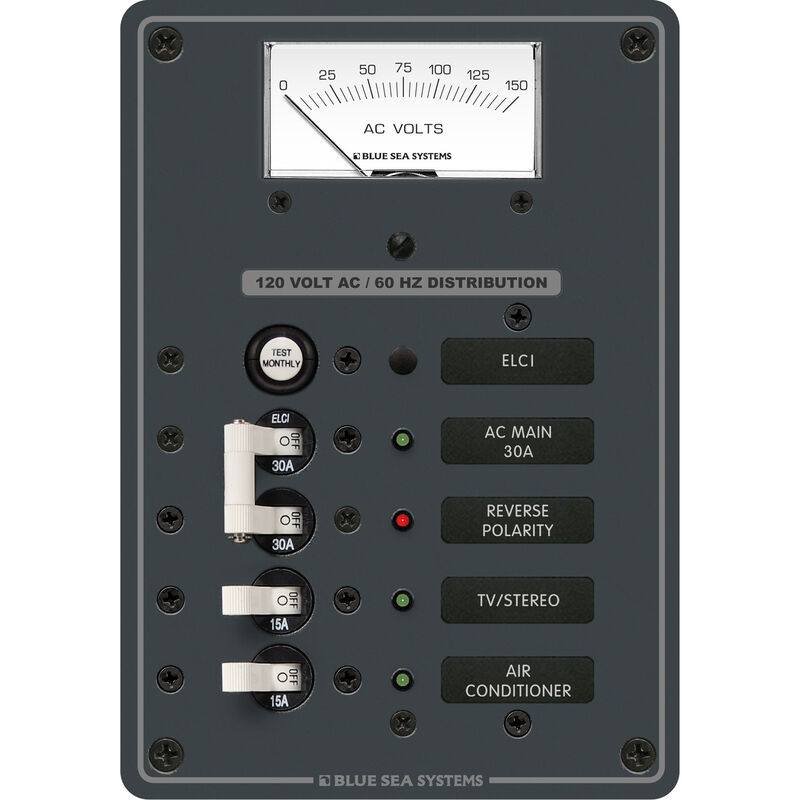

Blue Sea Systems AC Panel, ELCI Main 30A Double Pole + 2 Positions w/Voltmeter
Item No. 350766
Images
Details
https://www.overtons.com/blue-sea-systems-ac-panel-elci-main-30a-double-pole-2-positions-wvoltmeter-350766.html
Blue Sea Systems AC Panel, ELCI Main 30A Double Pole + 2 Positions w/Voltmeter
$369.79
$410.99
Save $41.20
(
10% Off
)
Additional Information
Features
This Blue Sea Systems AC Panel has one 30A AC ELCI Main Residual Current Circuit Breaker with a leakage trip amperate of 30 mA. ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection. Includes a red reverse polarity LED and "ON" indicating LED. All circuit label positions are backlit.
INCLUDES
• AC Voltmeter, 0 to 150V AC (Blue Sea No. 9353)
• 1 A-Series ELCI Main Circuit Breaker, Double Pole 120V AC 30A (Blue Sea No. 3106100)
• 2 A-Series White Toggle Circuit Breakers, Single Pole 15A Branch (Blue Sea No. 7210)
• 3 Green LED, 120V AC (Blue Sea No. 8034)
• 1 Red LED, 120V AC (Blue Sea No. 8066)
SPECIFICATIONS
• Positions: 2
• Nominal Voltage: 120V AC
• Leakage Trip Amperage: 30mA
• Overall: 5.25"H x 7.5"W x 3.5"D
Blue Sea Systems No. 8102
Show moreShow less
INCLUDES
• AC Voltmeter, 0 to 150V AC (Blue Sea No. 9353)
• 1 A-Series ELCI Main Circuit Breaker, Double Pole 120V AC 30A (Blue Sea No. 3106100)
• 2 A-Series White Toggle Circuit Breakers, Single Pole 15A Branch (Blue Sea No. 7210)
• 3 Green LED, 120V AC (Blue Sea No. 8034)
• 1 Red LED, 120V AC (Blue Sea No. 8066)
SPECIFICATIONS
• Positions: 2
• Nominal Voltage: 120V AC
• Leakage Trip Amperage: 30mA
• Overall: 5.25"H x 7.5"W x 3.5"D
Blue Sea Systems No. 8102
- Overcurrent and leakage protection
- 30A AC ELCI Main Circuit Breaker
- Leakage trip amperate: 30mA
- Red reverse polarity indicating LED
- "ON" indicating LED
Specs
| Unit Weight | 2.50 lb |
|---|---|
| Brand | Blue Sea Systems |
