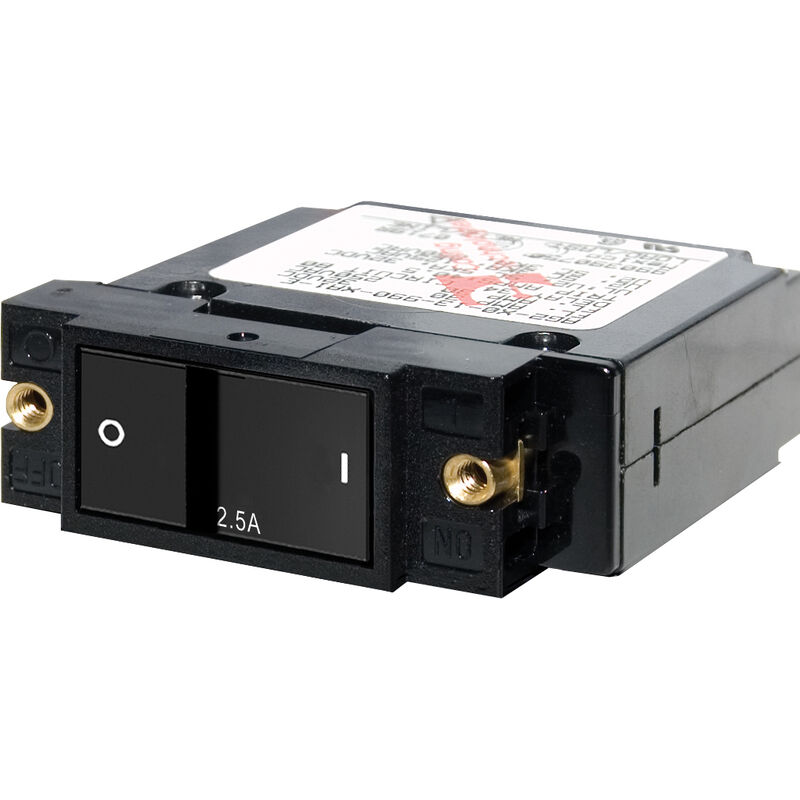

Blue Sea Systems A-Series Flat Rocker Switch Circuit Breaker, Single Pole 2.5A
Item No. 350738
Images
Details
https://www.overtons.com/blue-sea-systems-a-series-flat-rocker-switch-circuit-breaker-single-pole-2.5a-350738.html
Blue Sea Systems A-Series Flat Rocker Switch Circuit Breaker, Single Pole 2.5A
$11.72
$19.99
Save $8.27
(
41% Off
)
Additional Information
Features
The Blue Sea Systems A-Series Flat Rocker Switch AC/DC Circuit Breaker prevents accidental switching of 24-hour circuits, since it is flush in the ON position. A color actuator indicates OFF position and international ON/OFF symbols allow for vertical or horizontal mounting. Magnetic hydraulic circuit breaker is "Trip Free," so it cannot be held "ON" during fault condition.
• Amperage: 2.5A AC / 2.5A DC
• Actuator Style: Flat Rocker
• Poles: 1
• Maximum Voltage: 240V AC / 32V DC
• Circuit Breaker Type: Magnetic Hydraulic "Trip Free"
• Interrupt Capacity: 3000A @ 125V AC / 1500A @ 240V AC / 5000A @ 32V DC
• Minimum Operating Temperature: -40°F (-40°C)
• Maximum Operating Temperature: 185°F (85°C)
• Mounting Screw: #6-32 Stainless Steel
• Mounting Screw Torque: 6 in.-lb. (0.68 Nm)
• Screw Terminal Torque: 14 in.-lb. (1.58 Nm)
• Switching Cycles: 10,000
• Terminal Screw: #10-32 Stainless Steel
Blue Sea Systems No. 7399
Show moreShow less
• Amperage: 2.5A AC / 2.5A DC
• Actuator Style: Flat Rocker
• Poles: 1
• Maximum Voltage: 240V AC / 32V DC
• Circuit Breaker Type: Magnetic Hydraulic "Trip Free"
• Interrupt Capacity: 3000A @ 125V AC / 1500A @ 240V AC / 5000A @ 32V DC
• Minimum Operating Temperature: -40°F (-40°C)
• Maximum Operating Temperature: 185°F (85°C)
• Mounting Screw: #6-32 Stainless Steel
• Mounting Screw Torque: 6 in.-lb. (0.68 Nm)
• Screw Terminal Torque: 14 in.-lb. (1.58 Nm)
• Switching Cycles: 10,000
• Terminal Screw: #10-32 Stainless Steel
Blue Sea Systems No. 7399
- Prevents accidental switching of 24-hour circuits
- Flush ON position
- "Trip Free" cannot be held closed after trip
- Magnetic hydraulic circuit breaker
Specs
| Unit Weight | 0.20 lb |
|---|---|
| Brand | Blue Sea Systems |
