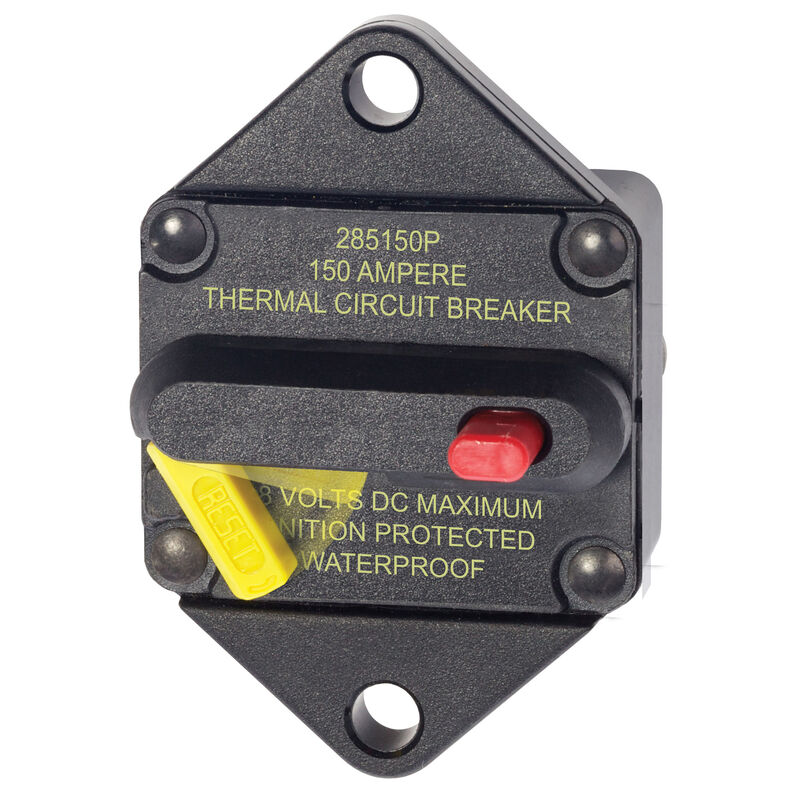

Blue Sea Systems 285 Series Circuit Breaker, Panel Mount, 150 Amp
Item No. 350687
Images
Blue Sea Systems 285 Series Circuit Breaker, Panel Mount, 150 Amp
Details

Blue Sea Systems 285 Series Circuit Breaker, Panel Mount, 150 Amp

  • bvseo_sdk, dw_cartridge, 17.1.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 94ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = '{0}', msg = {1};
Item No. 350687
$47.49 $49.99
( 5% Off )
Product Actions

Low Stock

Additional Information
The Blue Sea Systems 285 Series Circuit Breaker combines switching and circuit breaker function into one unit. The 285 Series Circuit Breaker serves as a drop-in replacement for the 185 Series Circuit Breaker. Features a visible reset lever that shows open condition. "Trip Free" design cannot be held closed after trip. This ignition-protected circuit breaker is safe for installation aboard gasoline powered boats. Meets SAE J1171 external ignition protection requirements. Weather-resistant to IP67 specifications.

NOTE: Do not use as a switch where high inrush currents are expected.

• Amperage: 150A
• Maximum Voltage: 48V DC
• Mounting: Panel Mount
• Circuit Breaker Type: Thermally Responsive Bi-Metal Blade
• Terminal Stud Torque: 50 in.-lb. (5.65 Nm)
• Interrupt Capacity: 3000A @ 48V
• Minimum Operating Temperature: -40°F (-40°C)
• Maximum Operating Temperature: 185°F (85°C)
• Circuit Breaker Class: Type III Switchable/Manual Reset "Trip Free"
• Terminal Stud: Accepts 1/4" Ring Terminal (M6)

Blue Sea Systems No. 7089
Show moreShow less
  • Combines switching and circuit protection
  • Drop-in replacement for 185 Series
  • Visible reset lever shows open condition
  • "Trip Free" cannot be held closed after trip
  • Ignition protected
  • Unit Weight 0.25 lb
    Brand Blue Sea Systems
