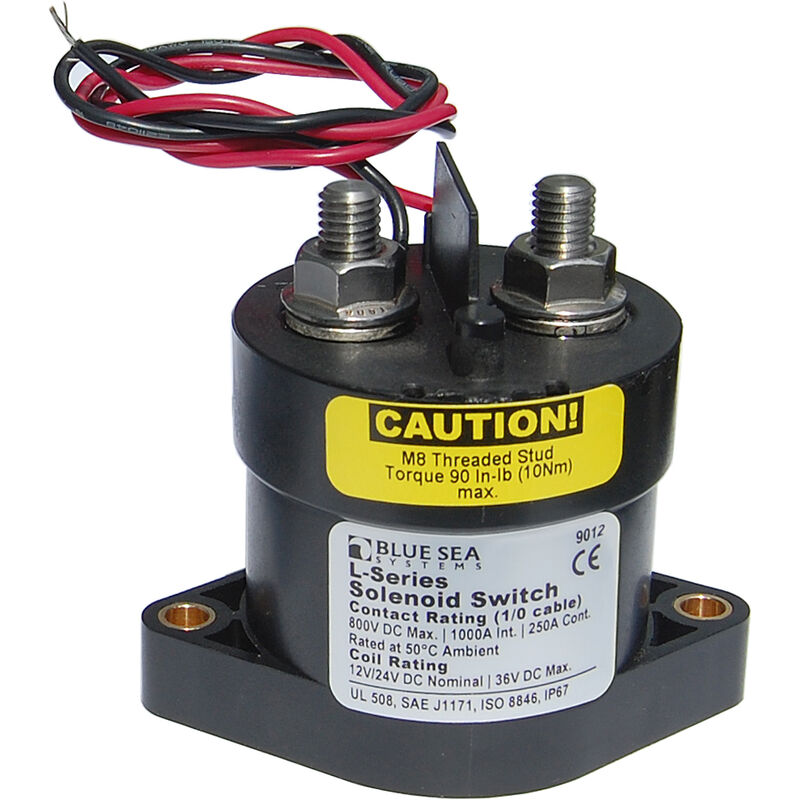

Blue Sea Solenoid Switch, L-Series, 12-24V
FREE Standard Shipping over $99.
Good Sam Members: FREE Shipping over $49
This item is excluded from all discounts and promotions.
- This item is currently not available
• CE Marked
• Operating Amperage (Continuous): 0.13A @ 12V; .07A @ 24V
• Continuous Rating: 250 amps
• Intermittent Rating (5 min.): 275 amps
• Input Voltage: 8.5-36V DC
• Maximum Voltage Rating: 60V DC
• Terminal Stud Size: M8 (accepts 5/16" terminal ring)
• Power Consumption (Holding): 12V, 0.13 Amperes;24V, 0.07 Amperes
• Recommended Torque: 80-100 in.-lb.
• Weight: 1 lb.
- Ignition protected Solenoid switch
- Safe for installation on gasoline-powered boats
- Can function and a remote battery switch
- Activated by an ON-OFF switch mounted anywhere
- Designed for 12V or 24V systems
