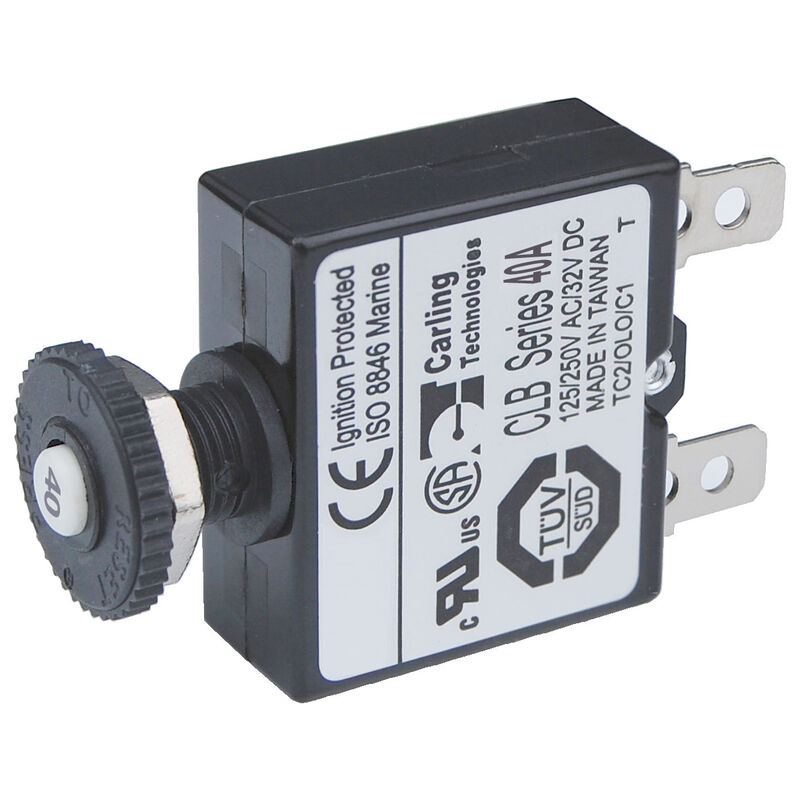

Blue Sea Push-Button Reset-Only Quick-Connect Thermal DC Circuit Breaker, 40A
Item No. 350677
Images
Details
https://www.overtons.com/blue-sea-push-button-reset-only-quick-connect-thermal-dc-circuit-breaker-40a-350677.html
Blue Sea Push-Button Reset-Only Quick-Connect Thermal DC Circuit Breaker, 40A
$4.74
$4.99
Save $0.25
(
5% Off
)
Additional Information
Features
With a compact design that enables high-density configurations, these quick-connect terminal-style circuit breakers can be used for 24-hour circuit protection. For use with Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels. Thermal trip circuit breaker resets with the push of a button. "Trip Free" design cannot be held ON during fault current condition. Ignition protected for safe installation aboard gasoline powered boats. Not recommended for use with marine AC circuits. 1/4" Male Quick Connect terminals. Operating temperature range: -10°C to 60°C). UL recognized, CE marked, and TUV certified. Optional waterproof boot sold separately (item #84894, 84895, and 84896).
• Amperage: 40A
• Maximum Voltage: 32V DC
• Circuit Breaker Type: Thermal Trip, Manual Push-Button Reset Only
• Terminal Type: 1/4 Male Quick Connect
• Interrupt Capacity: 3000A @ 14.7V DC / 2500A @ 28V DC
Blue Sea Systems No. 7061
Show moreShow less
• Amperage: 40A
• Maximum Voltage: 32V DC
• Circuit Breaker Type: Thermal Trip, Manual Push-Button Reset Only
• Terminal Type: 1/4 Male Quick Connect
• Interrupt Capacity: 3000A @ 14.7V DC / 2500A @ 28V DC
Blue Sea Systems No. 7061
- 1/4" Quick-Connect terminals
- Reset-only push-button operation
- "Trip Free": cannot be held closed after trip
- Thermal trip circuit breaker
- Ignition protected
Specs
| Unit Weight | 0.08 lb |
|---|---|
| Brand | Blue Sea Systems |
