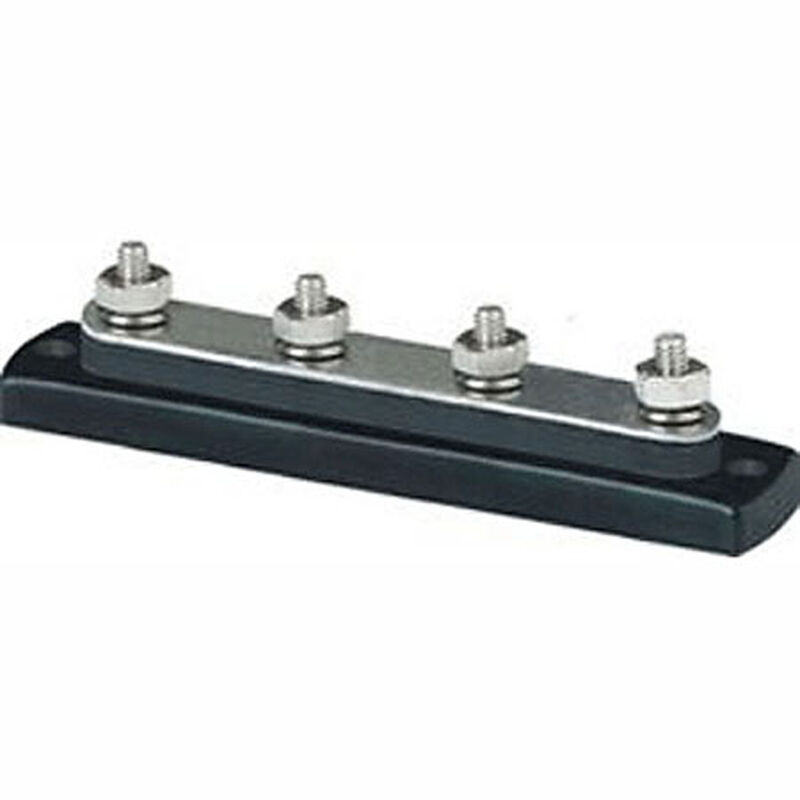

Blue Sea 150-Amp Common Busbar, (4) 1/4"-20 Terminal Screws
Item No. 316111
  • bvseo_sdk, dw_cartridge, 17.1.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 71ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = '{0}', msg = {1};
Images
Blue Sea 150-Amp Common Busbar, (4) 1/4"-20 Terminal Screws
Details

Blue Sea 150-Amp Common Busbar, (4) 1/4"-20 Terminal Screws

  • bvseo_sdk, dw_cartridge, 17.1.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 9ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = '{0}', msg = {1};
Item No. 316111
$19.69 $21.99
Save $2.30 ( 10% Off )
Product Actions

This item is currently not available.

Additional Information
The 150-Amp Common Busbar is the industry standard busbar for positive distribution or for the collection of negative or AC ground circuits. Press-on busbar eliminates the need for a securing nut. Raised design provides easy access to multiple wires on a single screw or stud. Tin-plated copper bus offers maximum conductivity and corrosion resistance. High-torque stainless steel studs offer corrosion resistance, provide excellent electrical contact, and ensure secure fuse mounting. Some models feature a snap-on ABS cover that meets ABYC/USCG requirements for insulation. UL rated reinforced polycarbonate base resists high heat. Recessed mounting holes eliminate accidental shorts and accept #10 (M5) screws. Accepts 1/4" (M6) ring terminal.

• Maximum Voltage Rating: 300V AC/48V DC
• Continuous Amperage: 130 Amps AC/150 Amps DC
• Maximum Torque: 72 in-lb
• Terminal Stud: (4) 1/4"-20
Show moreShow less
  • Industry standard for positive distribution
  • Industry standard for negative/AC ground circuicts
  • Press-on busbar eliminates need for securing nut
  • Tin-plated copper bus for maximum conductivity
  • High-torque stainless steel studs
Unit Weight 0.35 lb
Brand Blue Sea Systems
