Features
With a massive 16,500 lbs. of pulling capacity, the WARN 16.5TI-S Heavyweight Winch is not only the most powerful truck winch WARN makes, it's also now available with 80' of 3/8" lightweight, easy-to-handle Spydura Pro synthetic rope. The rope's heat-treated construction provides maximum tensile strength, and the temperature-resistant sleeve on the first layer provides maximum heat protection. This winch also features a thermometric indicator which provides operator feedback during the winching process and is great for the biggest, heaviest vehicles on or off the pavement.
• 16,500-lb. capacity
• Includes 80' of 3/8" Spydura Pro synthetic rope
• 18,000-lb. capacity EPIC hook
• Thermometric indicator LED provides operator feedback
• Large-frame winch architecture mounts feet forward
• Contactor control for the ultimate in reliable electronics
• Powerful, efficient series-wound motor
• Durable, smooth three-stage planetary gear train
• Best-in-class cone brake
Specifications
Rated Line Pull: 16,500 lbs. single-line
Motor: 12V DC, series wound
Electrical Controls: Contactor
Remote Control: Remote switch with LED indicator, 12' lead
Geartrain: 3-stage planetary
Gear Ratio: 315:1
Clutch (freespooling): Rotating ring gear
Brake: Automatic mechanical cone

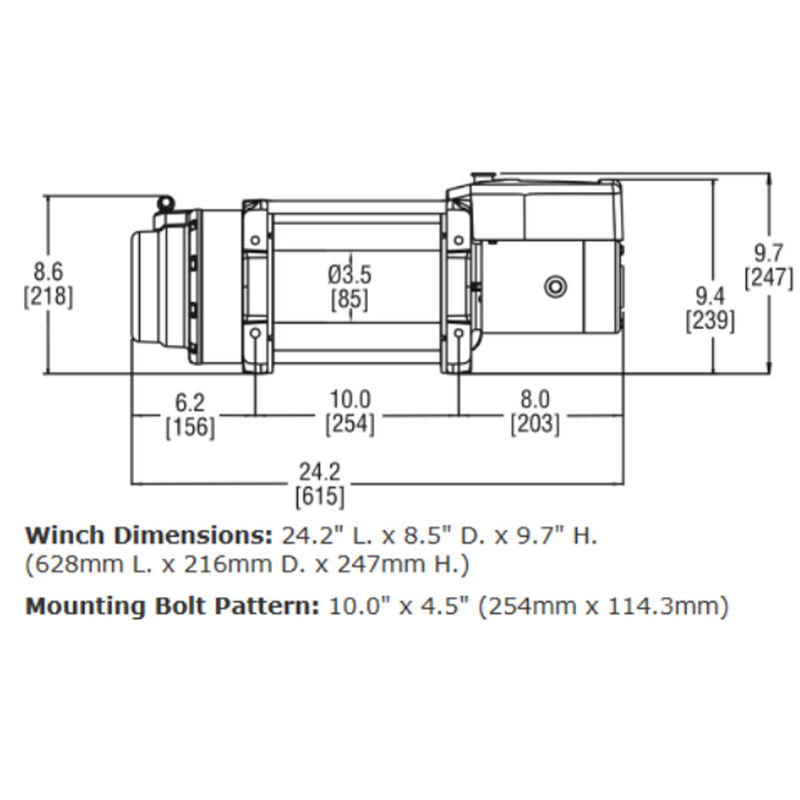

Drum Dimensions: 3.5" dia. x 8.2"L
Rope: 3/8" x 80' Spydura Pro synthetic
Fairlead: Aluminum hawse
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2-gauge, 72"
Finish: Argent gray powder coat
Weight: 104 lbs.
• 16,500-lb. capacity
• Includes 80' of 3/8" Spydura Pro synthetic rope
• 18,000-lb. capacity EPIC hook
• Thermometric indicator LED provides operator feedback
• Large-frame winch architecture mounts feet forward
• Contactor control for the ultimate in reliable electronics
• Powerful, efficient series-wound motor
• Durable, smooth three-stage planetary gear train
• Best-in-class cone brake
Specifications
Rated Line Pull: 16,500 lbs. single-line
Motor: 12V DC, series wound
Electrical Controls: Contactor
Remote Control: Remote switch with LED indicator, 12' lead
Geartrain: 3-stage planetary
Gear Ratio: 315:1
Clutch (freespooling): Rotating ring gear
Brake: Automatic mechanical cone
Drum Dimensions: 3.5" dia. x 8.2"L
Rope: 3/8" x 80' Spydura Pro synthetic
Fairlead: Aluminum hawse
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2-gauge, 72"
Finish: Argent gray powder coat
Weight: 104 lbs.
- Massive 16,500 lbs. of pulling capacity
- Comes with 80' of 3/8" lightweight, easy-to-handle Spydura Pro synthetic rope
- Thermometric indicator provides operator feedback during the winching process
- Contactor control for the ultimate in reliable electronics
- Durable, smooth three-stage planetary gear train
Specs
Unit Weight
98.00 lb
Brand
Warn
MFG Part No.
13-7423
