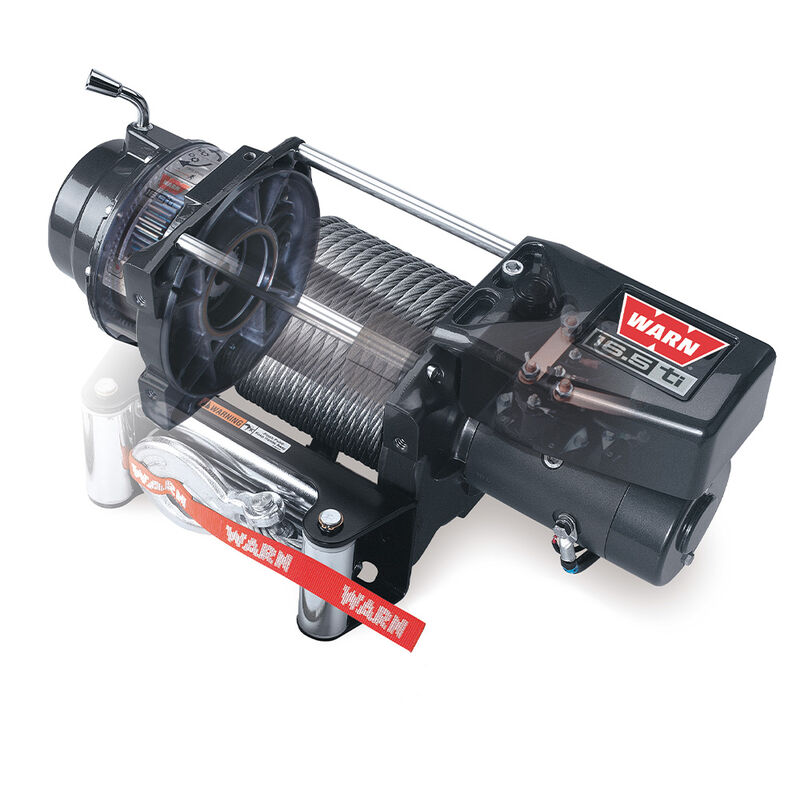

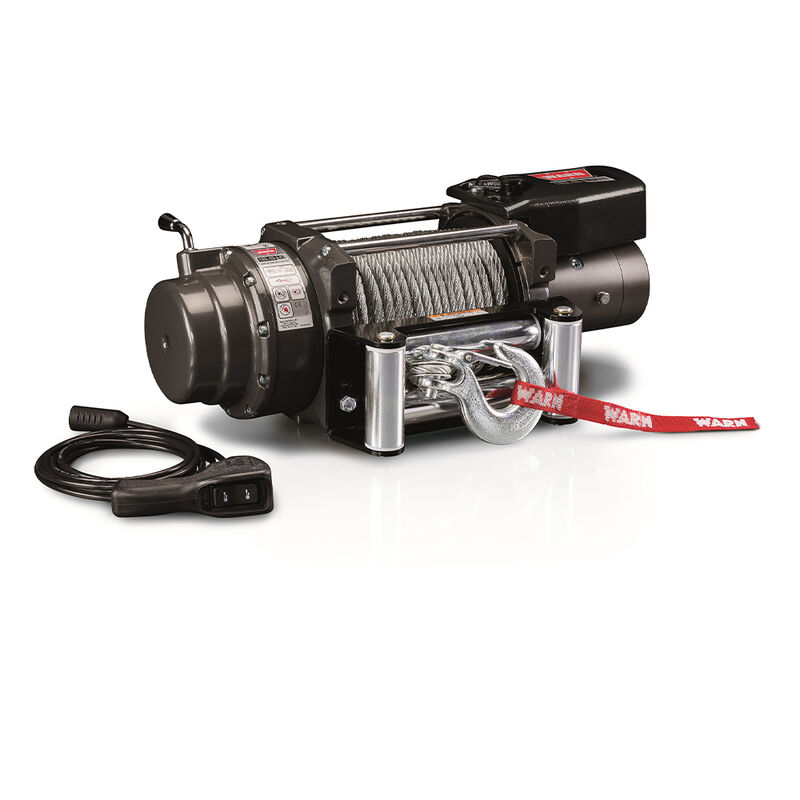

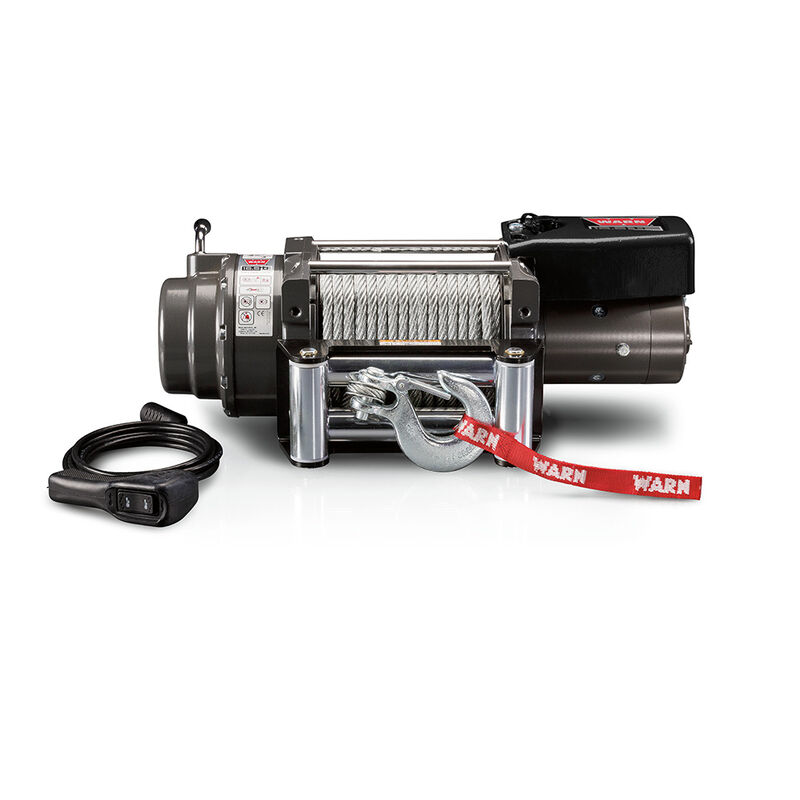

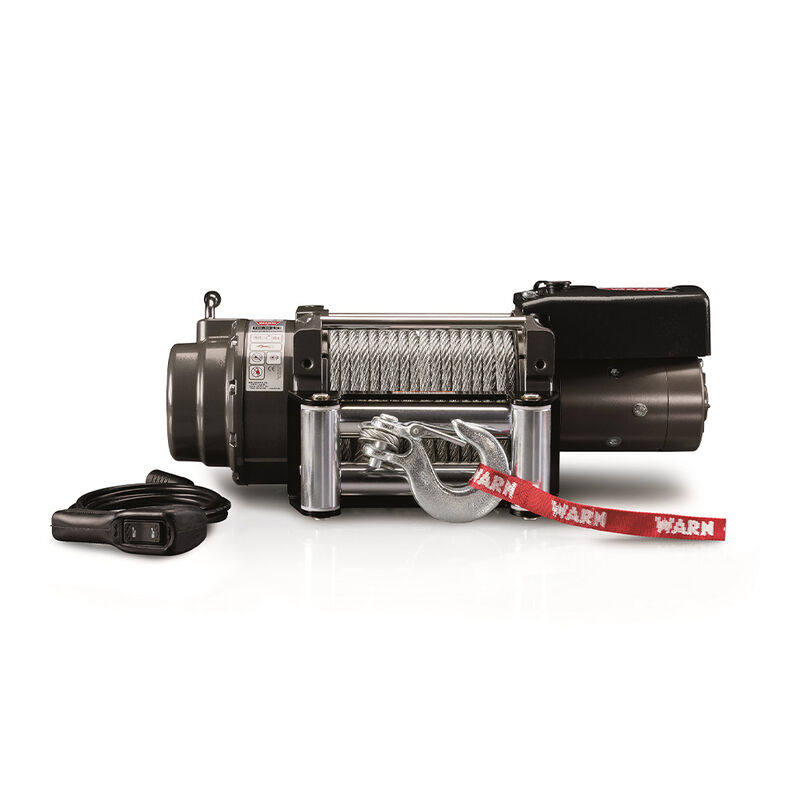

WARN 68801 16.5TI Heavyweight Winch
$3,213
FREE Shipping
FREE In-Store Pickup
Select store
- Ships from vendor
- Delivery to Change Address
- Delivery Fee Details
This item is excluded from all discounts and promotions.
Minimum order quantity of
1
Maximum order quantity of
100
Must purchase in increments of
1
Special Offers
Save 15% No Minimum With: LABORDAY26
Save 15% on your order, no minimum with code: LABORDAY26 added to cart. Some exclusions apply. Not combinable with other promotions. Greatest discount will be applied in cart. Offer valid 9/3-9/7/26.
Return Policy
We believe in offering the very best value, quality, and selection. Plus, we want you to enjoy your purchase! In the event you wish to send a product back to us, you may return most unused items for a refund or exchange, minus shipping, within 90 days from the date of purchase unless noted below under exceptions and exclusions. Refunds are issued to the original form of payment.
Features
The WARN 68801 16.5TI Heavyweight Winch combines 16,500 lbs. of pulling power with all the innovative features of the WARN TI series. The WARN 16.5TI Thermometric Winch is the highest capacity, most technologically advanced truck winch in the industry today. The 16.5TI features the full diagnostic ability of WARN thermometric technology, plus the extreme sealing, durability, and reliability that the WARN TI Series of winches is known for. The new, more efficient design delivers faster line speeds and lower ampere draw.
• Extreme-duty sealing helps protect the winch from the outside elements
• Series-wound, high-speed motor provides fast line speed and strong pulls
• Exclusive brake design provides superior control while winching
• Aluminum control box cover for added protection of the electronics
• Durable 3-stage planetary geartrain for smooth, reliable operation
• Remote control with 12' lead and thermometric LED indicator for operator feedback
• Chip-resistant powder-coated finish with primer undercoating for superior corrosion protection
• 90' of 7/16" diameter wire rope
Specifications
Rated Line Pull: 16,500 lbs. single-line
Motor: 12V DC, series wound
Electrical Controls: Contactor
Remote Control: Remote switch with LED indicator, 12' lead
Geartrain: 3-stage planetary
Gear Ratio: 315:1
Clutch (freespooling): Rotating ring gear
Brake: Automatic mechanical cone

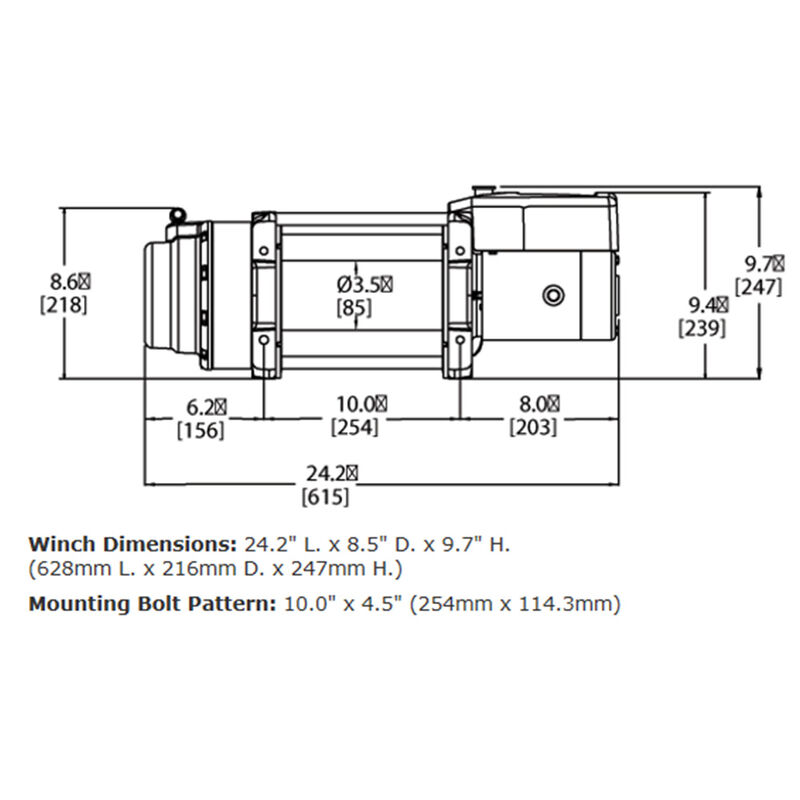

Drum Dimensions: 3.5" dia. x 8.2"L
Rope: 7/16" x 90' steel
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2-gauge, 72"
Finish: Argent gray powder coat
Weight: 134 lbs.
• Extreme-duty sealing helps protect the winch from the outside elements
• Series-wound, high-speed motor provides fast line speed and strong pulls
• Exclusive brake design provides superior control while winching
• Aluminum control box cover for added protection of the electronics
• Durable 3-stage planetary geartrain for smooth, reliable operation
• Remote control with 12' lead and thermometric LED indicator for operator feedback
• Chip-resistant powder-coated finish with primer undercoating for superior corrosion protection
• 90' of 7/16" diameter wire rope
Specifications
Rated Line Pull: 16,500 lbs. single-line
Motor: 12V DC, series wound
Electrical Controls: Contactor
Remote Control: Remote switch with LED indicator, 12' lead
Geartrain: 3-stage planetary
Gear Ratio: 315:1
Clutch (freespooling): Rotating ring gear
Brake: Automatic mechanical cone
Drum Dimensions: 3.5" dia. x 8.2"L
Rope: 7/16" x 90' steel
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2-gauge, 72"
Finish: Argent gray powder coat
Weight: 134 lbs.
- Highest capacity, most technologically advanced truck winch in the industry
- Full diagnostic ability of WARN thermometric technology
- Extreme-duty sealing helps protect the winch from the outside elements
- Series-wound, high-speed motor provides fast line speed and strong pulls
- Remote control with 12' lead and thermometric LED indicator
Specs
Unit Weight
120.00 lb
Brand
Warn
MFG Part No.
68801
