WARN 17801 M12 12V Heavyweight Winch
$2,602.99
FREE Shipping
FREE In-Store Pickup
Select store
- Ships from vendor
- Delivery to Change Address
- Delivery Fee Details
This item is excluded from all discounts and promotions.
Minimum order quantity of
1
Maximum order quantity of
100
Must purchase in increments of
1
Special Offers
Save 15% No Minimum With: LABORDAY26
Save 15% on your order, no minimum with code: LABORDAY26 added to cart. Some exclusions apply. Not combinable with other promotions. Greatest discount will be applied in cart. Offer valid 9/3-9/7/26.
Return Policy
We believe in offering the very best value, quality, and selection. Plus, we want you to enjoy your purchase! In the event you wish to send a product back to us, you may return most unused items for a refund or exchange, minus shipping, within 90 days from the date of purchase unless noted below under exceptions and exclusions. Refunds are issued to the original form of payment.
Features
Big torque, 12,000 lbs. of pulling power, and fast no-load retrieval speed give the WARN M12 12V Heavyweight Winch a great combination of heavy-duty capacity and high performance. If you've got a big truck and are looking for a true workhorse, this winch is where it's at.
• 12,000-lb. pulling capacity (single line)
• Max Line Pull: 12,000 lbs.
• Line Speed: 3.86 Feet Per Minute
• Large frame winch design is designed to handle heavier winch loads
• Series-wound, high-speed motor provides fast line speed and strong pulls
• Brake provides superior control while winching
• Remote-mount control box allows for various mounting options
• Durable 3-stage planetary geartrain for smooth, reliable operation
• Remote control with 12' lead
• Chip-resistant powder-coated finish
• 125' of 3/8" diameter wire rope
Specifications
Rated Line Pull: 12,000 lbs. single-line
Motor: Series wound
Electrical Controls: Contactor
Remote Control: Remote switch, 12' lead
Geartrain: 3-stage planetary
Gear Ratio: 261:1
Clutch (freespooling): Rotating ring gear
Brake: Automatic mechanical cone

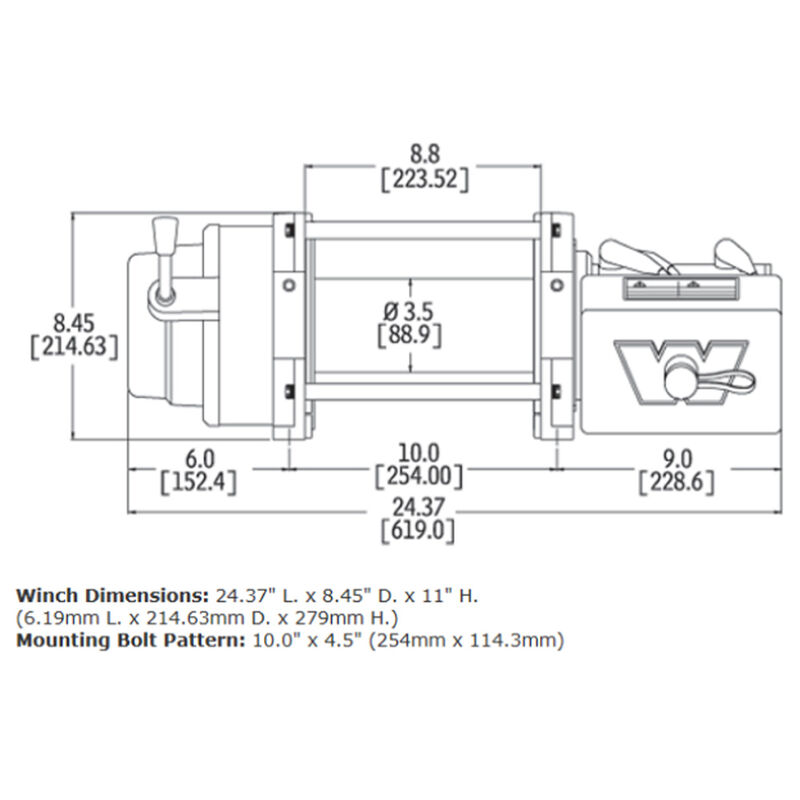

Drum Dimensions: 3.5" dia. x 8.2"L
Rope: 3/8" x 125' steel
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2-gauge, 72"
Finish: Argent gray powder coat
Weight: 133 lbs.
• 12,000-lb. pulling capacity (single line)
• Max Line Pull: 12,000 lbs.
• Line Speed: 3.86 Feet Per Minute
• Large frame winch design is designed to handle heavier winch loads
• Series-wound, high-speed motor provides fast line speed and strong pulls
• Brake provides superior control while winching
• Remote-mount control box allows for various mounting options
• Durable 3-stage planetary geartrain for smooth, reliable operation
• Remote control with 12' lead
• Chip-resistant powder-coated finish
• 125' of 3/8" diameter wire rope
Specifications
Rated Line Pull: 12,000 lbs. single-line
Motor: Series wound
Electrical Controls: Contactor
Remote Control: Remote switch, 12' lead
Geartrain: 3-stage planetary
Gear Ratio: 261:1
Clutch (freespooling): Rotating ring gear
Brake: Automatic mechanical cone
Drum Dimensions: 3.5" dia. x 8.2"L
Rope: 3/8" x 125' steel
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2-gauge, 72"
Finish: Argent gray powder coat
Weight: 133 lbs.
- Big torque with 12,000 lbs. of pulling power
- Fast no-load retrieval speed
- Large frame is designed to handle heavier winch loads
- Brake provides superior control while winching
- Remote control with 12' lead
Specs
Unit Weight
134.00 lb
Brand
Warn
MFG Part No.
17801
