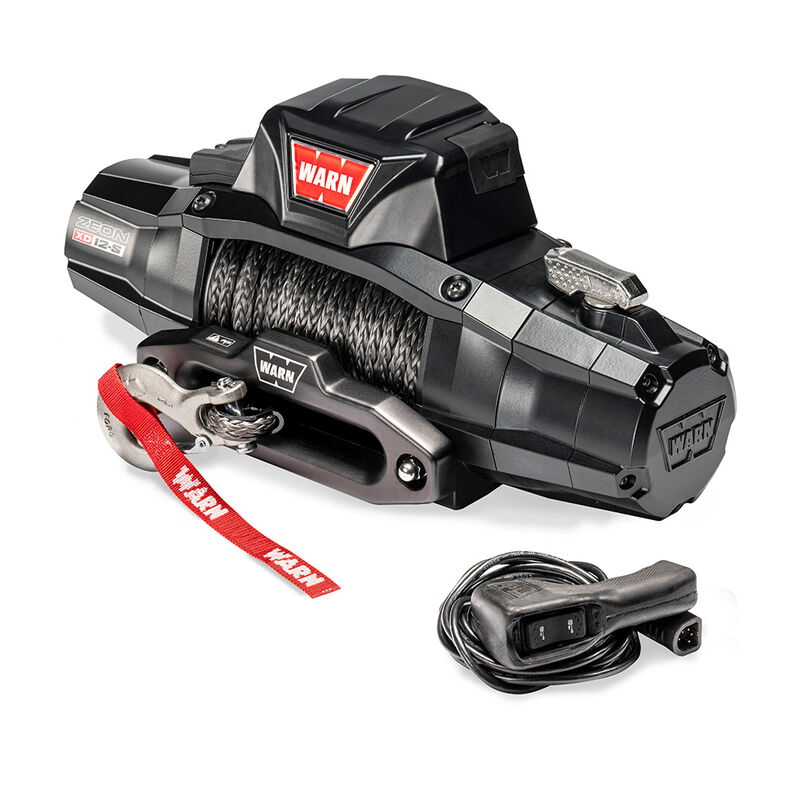

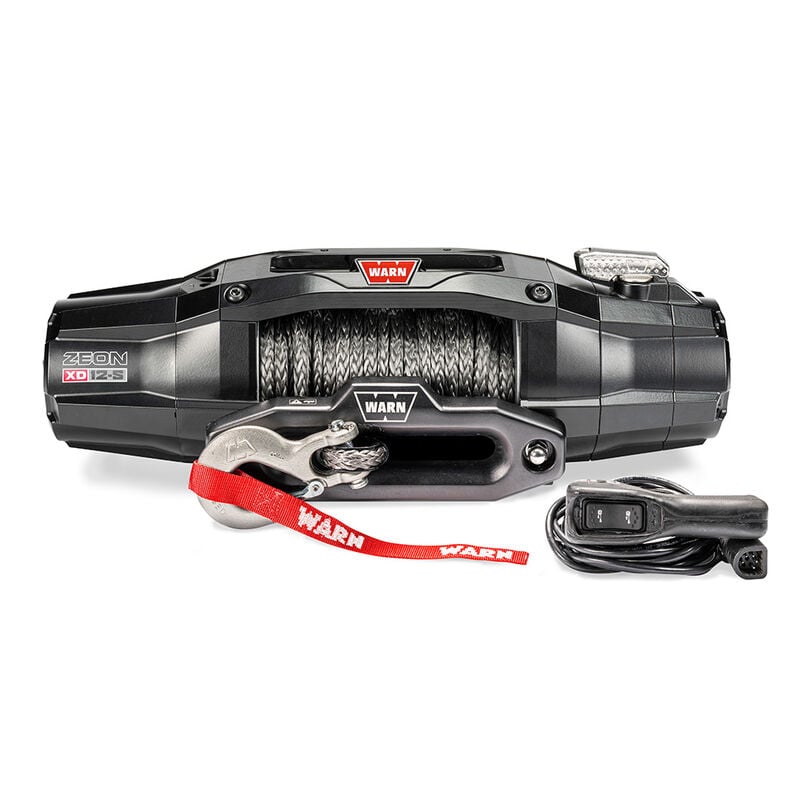

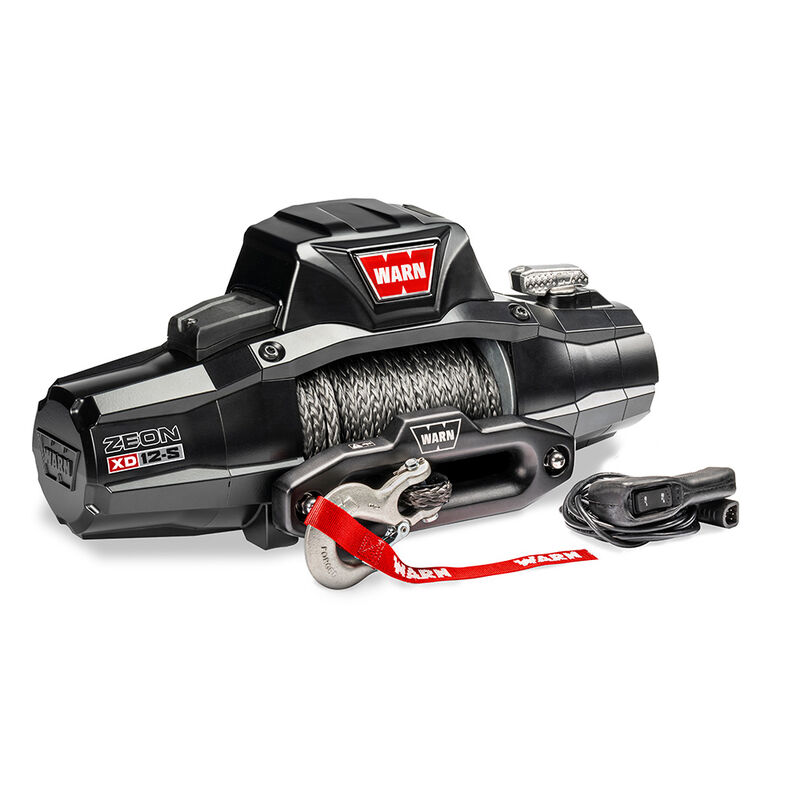

WARN 110012 ZEON XD 12-S Winch
$1,922.99
FREE Shipping
FREE In-Store Pickup
Select store
- Ships from vendor
- Delivery to Change Address
- Delivery Fee Details
This item is excluded from all discounts and promotions.
Minimum order quantity of
1
Maximum order quantity of
100
Must purchase in increments of
1
Special Offers
Save 15% with code: EXTRA15
Save 15% on your order no minimum with code: EXTRA15 added to cart. Some exclusions apply. Not combinable with other promotions. Greatest discount will be applied in cart. Offer valid 2/9-2/15/26.
Return Policy
We believe in offering the very best value, quality, and selection. Plus, we want you to enjoy your purchase! In the event you wish to send a product back to us, you may return most unused items for a refund or exchange, minus shipping, within 90 days from the date of purchase unless noted below under exceptions and exclusions. Refunds are issued to the original form of payment.
Features
Redesigned and retooled from the ground up for ultimate performance and durability, the WARN ZEON XD 12-S Winch is there for the times it just has to work, in all conditions. And with the industry's best warranty, fastest line-speed, and most robust waterproof sealing, ZEON XD is the ultra-reliable recovery tool you can count on when you need it most.
• New high-performance, high-efficiency motor and geartrain deliver blazing fast no-load line speeds of up to 40 ft/min – the fastest in its class.
• Reliable waterproof construction features o-ring rubber sealing. The entire winch is IP68K submersion and IP69K high-pressure spray rated.
• Includes a durable waterproof corded remote with 12' lead.
• The HUB receiver has a 100'+ range of wireless control when paired with the WARN HUB app.
• Upgraded, corrosion-resistant black fasteners and new, UV-resistant bus bar covers meet the highest OEM-grade specifications.
• Full metal armor protects components from impact and damage.
• WARN Spydura synthetic rope is strong, lightweight, and easy-to-handle, with heat-resistant inner wraps and abrasion sleeve.
• Upgraded black aluminum fairlead is made of forged 6061-T6 billet aluminum, giving superior corrosion, impact, salt, weather, and UV-resistance for long-lasting good looks.
• Albright contactor control and bus bars for the ultimate in electrical reliability and efficiency.
Specifications
Rated Line Pull (Single Line): 12,000 lbs.
No Load Line Speed: 31 ft/min
Rated Load Line Speed: 3 ft/min
No Load Motor Current: 67 Amps
Rated Load Motor Current: 466 Amps
Motor: 12V DC, series wound
Zeon Electrical Controls: Contactor
Wiring: Automotive OE-grade buss bars
Zeon Corrosion Resistance: 408-hour salt spray
Zeon Ingress Protection: IP68 submersion, IP69K spray testing (entire unit)
Remote Control: Corded remote with 12' lead plus HUB wireless receiver
Drum Dimensions: 3.15" dia. x 9.0"L
Geartrain: 3-stage planetary
Zeon Gear Ratio: 176:1
Brake: Automatic, six segment mechanical cone
Rope: 3/8" x 80' Spydura Pro synthetic
Fairlead: Black anodized, forged aluminum hawse
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2-gauge, 72"
Zeon Finish: Satin-black powder coat
• New high-performance, high-efficiency motor and geartrain deliver blazing fast no-load line speeds of up to 40 ft/min – the fastest in its class.
• Reliable waterproof construction features o-ring rubber sealing. The entire winch is IP68K submersion and IP69K high-pressure spray rated.
• Includes a durable waterproof corded remote with 12' lead.
• The HUB receiver has a 100'+ range of wireless control when paired with the WARN HUB app.
• Upgraded, corrosion-resistant black fasteners and new, UV-resistant bus bar covers meet the highest OEM-grade specifications.
• Full metal armor protects components from impact and damage.
• WARN Spydura synthetic rope is strong, lightweight, and easy-to-handle, with heat-resistant inner wraps and abrasion sleeve.
• Upgraded black aluminum fairlead is made of forged 6061-T6 billet aluminum, giving superior corrosion, impact, salt, weather, and UV-resistance for long-lasting good looks.
• Albright contactor control and bus bars for the ultimate in electrical reliability and efficiency.
Specifications
Rated Line Pull (Single Line): 12,000 lbs.
No Load Line Speed: 31 ft/min
Rated Load Line Speed: 3 ft/min
No Load Motor Current: 67 Amps
Rated Load Motor Current: 466 Amps
Motor: 12V DC, series wound
Zeon Electrical Controls: Contactor
Wiring: Automotive OE-grade buss bars
Zeon Corrosion Resistance: 408-hour salt spray
Zeon Ingress Protection: IP68 submersion, IP69K spray testing (entire unit)
Remote Control: Corded remote with 12' lead plus HUB wireless receiver
Drum Dimensions: 3.15" dia. x 9.0"L
Geartrain: 3-stage planetary
Zeon Gear Ratio: 176:1
Brake: Automatic, six segment mechanical cone
Rope: 3/8" x 80' Spydura Pro synthetic
Fairlead: Black anodized, forged aluminum hawse
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2-gauge, 72"
Zeon Finish: Satin-black powder coat
- Retooled from the ground up for ultimate performance and durability
- High-performance, high-efficiency motor and geartrain
- Blazing fast no-load line speeds of up to 40 ft/min – the fastest in its class
- Reliable waterproof construction with o-ring rubber sealing
- Includes a durable waterproof corded remote with 12' lead
Specs
Unit Weight
84.00 lb
Brand
Warn
MFG Part No.
08-7883
