TecNiq T86 8-Function 6" Box Slim-Line Taillight Kit

The TecNiq T86 8-Function Taillight meets all requirements for stop, turn, tail, side marker, clearance marker, rear reflector, side reflector, and license plate light in a revolutionary, cost-effective design. With a sonic-welded case and potted electronics, this light will survive the harshest environment, plus this lamp is submersible. This box light is designed with a light engine that's less than 0.6" thick. This allows TecNiq to guarantee a perfect, waterproof seal every time. Despite the T86 unique design, it still fits in the industry-standard spacing and uses standard hardware. If you ever manage to break the lens and the light fills with water, rest assured that the potted circuitry guarantees it will continue to work for years.

• Multi-function 6" box taillight
• TecSeal urethane potting for guaranteed circuit board protection
• IP68 rated for dust and waterproof protection with hermetic seal
• Durable impact-resistant lens
• Meets all FMVSS-108 requirements for narrow and wide vehicles
• Reliable performance over 100,000 hours
• Fits standard mounting as a direct replacement
• 8 functions include stop, turn, tail, clearance, side marker, side reflector, rear reflector, and license plate light (left)
• DOT rated
• Designed, Engineered, Tested, and Assembled in Galesburg, MI
• TecNiq Inc products feature a Lifetime Limited Warranty. Details may be found at tecniqinc.com/warranty/

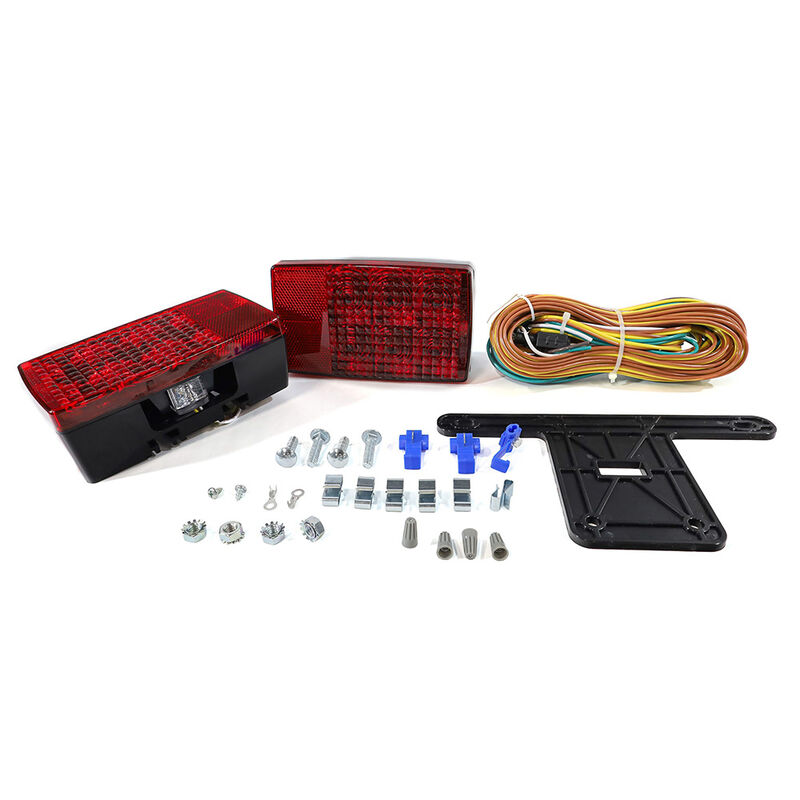

T86 Taillight Kit Includes
Left Taillight (driver's side includes license plate light)
Right Taillight (passenger side)
Four Carriage Bolts with Flange Nuts
Six Heat-Shrink Butt Connectors
Six Quick Splice Connectors

Specifications
Dimensions: 6" x 3.55" x 2.2"
LEDs: 6 + 1 white license plate light on left side
Voltage: 9-14V DC
Current: 0.14A-0.17A left / 0.06A-0.08A right
LED Colors: Red
Connector: 9" pigtail

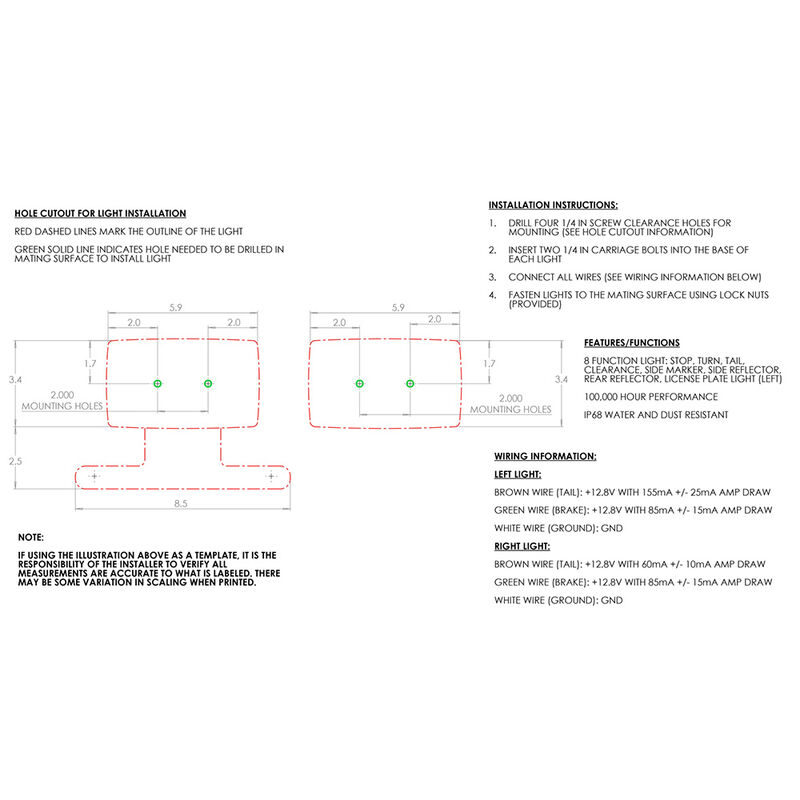

Mounting: Each light uses two 1/4-20 carriage bolts
