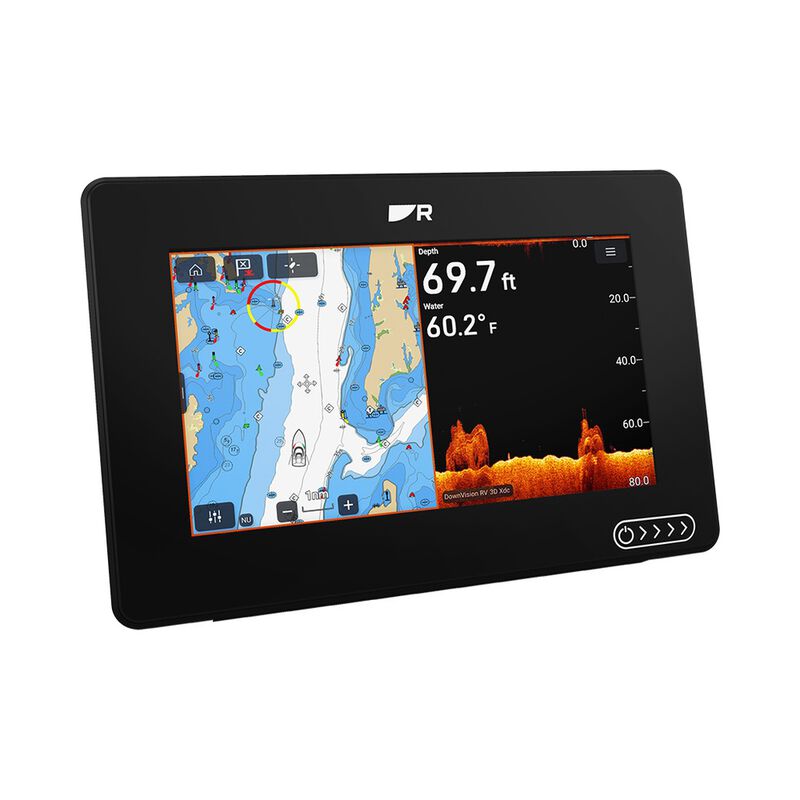

Raymarine Axiom 2 RV 7 inch Chartplotter/Fishfinder with RealVision 3D Sonar - No Transducer
$1,299.99
FREE Shipping
FREE In-Store Pickup
Not Available
- Ships from vendor
- Delivery to Change Address
- Delivery Fee Details
This item is excluded from all discounts and promotions.
Minimum order quantity of
1
Maximum order quantity of
100
Must purchase in increments of
1
Return Policy
We believe in offering the very best value, quality, and selection. Plus, we want you to enjoy your purchase! In the event you wish to send a product back to us, you may return most unused items for a refund or exchange, minus shipping, within 90 days from the date of purchase unless noted below under exceptions and exclusions. Refunds are issued to the original form of payment.
Features
Bring advanced navigation and fishfinding capability to your helm with the Raymarine Axiom 2 RV 7 in Chartplotter/Fishfinder with RealVision 3D Sonar - No Transducer. Built with Raymarine’s next-generation Axiom 2 platform, this display combines fast processing and powerful sonar technology for a more confident time on the water. The integrated RealVision 3D sonar system provides a detailed view beneath the boat, helping anglers understand underwater structure and locate fish with greater awareness. Powered by LightHouse OS, this compact chartplotter offers a smooth user experience with flexible networking options, vessel monitoring support, and compatibility with a wide range of marine electronics. A transducer is not included, allowing you to pair the display with the sonar setup that best matches your needs.
Features:
• Uses a powerful 6-core processor for fast operation
• Provides RealVision 3D sonar capability with compatible transducer
• Displays detailed underwater structure and fish activity
• Offers bright screen visibility for daytime use
• Runs on LightHouse OS with access to over 30 apps
• Stores charts, apps, videos, and user data internally
• Compatible with multiple chart platforms
Specs:
• Brand: Raymarine
• Display Size: 7 in diagonal IPS touchscreen
• Resolution: WSVGA 1024 x 600
• Brightness: 1500 nits / 1500 cd/m²
• Protective Coating: HydroTough oleophobic coating
• Processor: 6-core
• Internal Storage: 64 GByte solid-state storage
• Voltage: 12 V DC nominal; 8 to 16 V DC operating range
• Maximum Power Consumption: 9.84 W
• Fuse Rating: 7 A inline fuse / thermal breaker
• Dimensions (Trunnion Mounted): 9.86 in W x 6.4 in H x 8.58 in D
• Dimensions (Surface/Flush Mounted): 7.92 in W x 5.24 in H x 8.58 in D
• Transducer Connection: 1x 25-pin RealVision connector
• Network Connections: 1x RayNet Ethernet, WiFi 802.11 b/g/n, Bluetooth v4.0
• NMEA 2000 Connection: 1x DeviceNet male connector
• GNSS Receiver: GPS, GLONASS, BeiDou with SBAS support
• External Storage: 1x MicroSDXC card slot
• Sonar Output: RealVision 3D 70 W, SideVision 70 W, DownVision 35 W, CHIRP High 100 W
Features:
• Uses a powerful 6-core processor for fast operation
• Provides RealVision 3D sonar capability with compatible transducer
• Displays detailed underwater structure and fish activity
• Offers bright screen visibility for daytime use
• Runs on LightHouse OS with access to over 30 apps
• Stores charts, apps, videos, and user data internally
• Compatible with multiple chart platforms
Specs:
• Brand: Raymarine
• Display Size: 7 in diagonal IPS touchscreen
• Resolution: WSVGA 1024 x 600
• Brightness: 1500 nits / 1500 cd/m²
• Protective Coating: HydroTough oleophobic coating
• Processor: 6-core
• Internal Storage: 64 GByte solid-state storage
• Voltage: 12 V DC nominal; 8 to 16 V DC operating range
• Maximum Power Consumption: 9.84 W
• Fuse Rating: 7 A inline fuse / thermal breaker
• Dimensions (Trunnion Mounted): 9.86 in W x 6.4 in H x 8.58 in D
• Dimensions (Surface/Flush Mounted): 7.92 in W x 5.24 in H x 8.58 in D
• Transducer Connection: 1x 25-pin RealVision connector
• Network Connections: 1x RayNet Ethernet, WiFi 802.11 b/g/n, Bluetooth v4.0
• NMEA 2000 Connection: 1x DeviceNet male connector
• GNSS Receiver: GPS, GLONASS, BeiDou with SBAS support
• External Storage: 1x MicroSDXC card slot
• Sonar Output: RealVision 3D 70 W, SideVision 70 W, DownVision 35 W, CHIRP High 100 W
- No transducer
- Fishfinder ready
- 7 in display
- RealVision 3D sonar
- Fast processor
Specs
Unit Weight
6.80 lb
Brand
Raymarine
MFG Part No.
113554
