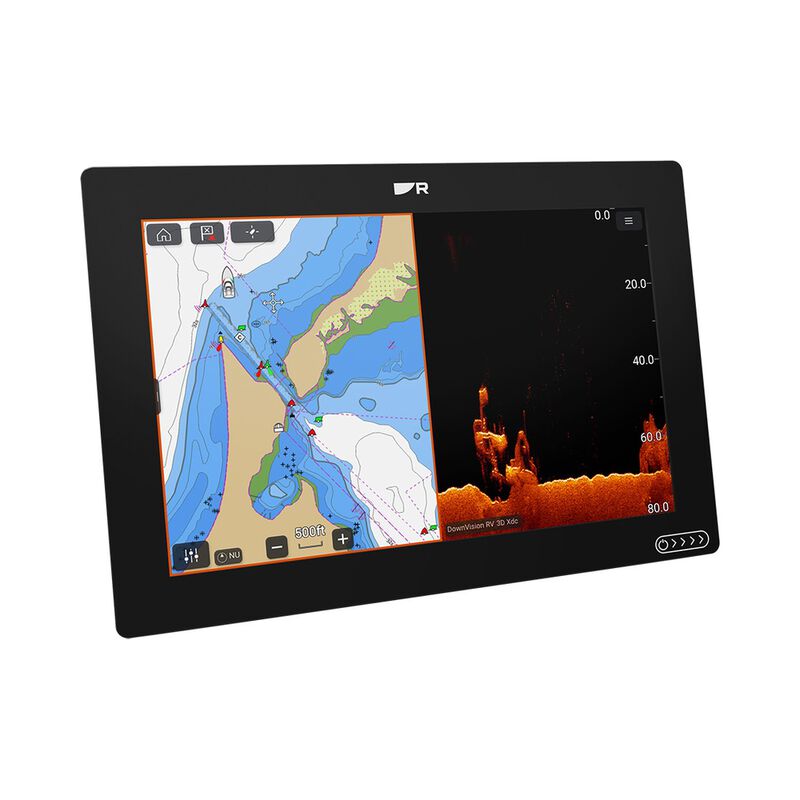

Raymarine Axiom 2 RV 12 in Chartplotter/Fishfinder w/RealVision 3D Sonar & No Transducer
$3,199.99
FREE Shipping
FREE In-Store Pickup
Not Available
- Ships from vendor
- Delivery to Change Address
- Delivery Fee Details
This item is excluded from all discounts and promotions.
Minimum order quantity of
1
Maximum order quantity of
100
Must purchase in increments of
1
Return Policy
We believe in offering the very best value, quality, and selection. Plus, we want you to enjoy your purchase! In the event you wish to send a product back to us, you may return most unused items for a refund or exchange, minus shipping, within 90 days from the date of purchase unless noted below under exceptions and exclusions. Refunds are issued to the original form of payment.
Features
Upgrade your helm with the Raymarine Axiom 2 RV 12 in Chartplotter/Fishfinder, a powerful multifunction display built to deliver dependable navigation and advanced sonar performance on the water. The Axiom 2 combines a responsive touchscreen interface with advanced chartplotting and RealVision 3D sonar technology to provide a clear view above and below the surface. Designed with rugged marine construction and intuitive controls, it gives you the tools needed to monitor your route, explore underwater structure, and stay connected with your vessel’s systems.
Features:
RealVision 3D sonar provides detailed underwater views
SideVision and DownVision help identify fish and bottom structure
• CHIRP sonar technology delivers improved target separation & clarity
• Fast 6-core processor provides quick response times
• HydroTough IPS touchscreen is built for harsh marine conditions
• LightHouse OS offers an intuitive and easy-to-use navigation interface
• Supports a wide range of marine electronics and vessel systems
• Rugged all-weather design
• Compatible with multiple chart options
Specs:
• Display Size: 12.1 in IPS touchscreen
• Processor: 6-core
• Protective Coating: HydroTough oleophobic coating
• Voltage: 12 V DC nominal / 8 to 16 V DC operating range
• Power Consumption: 18.96 W max
• Fuse Rating: 7A inline fuse / thermal breaker
• Dimensions (Trunnion Mounted): 12.36 in W x 8.93 in H x 7.01 in D
• Dimensions (Surface/Flush Mounted): 12.36 in W x 8.54 in H x 7.01 in D
• Transducer Connection: 1 x 25-pin RealVision connector
• Network: RayNet Ethernet (10/100/1000 Mbit/sec), WiFi 802.11 b/g/n, Bluetooth v4.0
• NMEA 2000: DeviceNet connector with LEN rating of 1
• GNSS Receiver: GPS / GLONASS / BeiDou with SBAS support
• Internal Storage: 64 GByte solid-state memory
• Sonar Channels: RealVision 3D (70 W / 350 kHz), SideVision (70 W / 350 kHz), DownVision (35 W / 350 kHz), CHIRP High (100 W / 200 kHz)
Features:
RealVision 3D sonar provides detailed underwater views
SideVision and DownVision help identify fish and bottom structure
• CHIRP sonar technology delivers improved target separation & clarity
• Fast 6-core processor provides quick response times
• HydroTough IPS touchscreen is built for harsh marine conditions
• LightHouse OS offers an intuitive and easy-to-use navigation interface
• Supports a wide range of marine electronics and vessel systems
• Rugged all-weather design
• Compatible with multiple chart options
Specs:
• Display Size: 12.1 in IPS touchscreen
• Processor: 6-core
• Protective Coating: HydroTough oleophobic coating
• Voltage: 12 V DC nominal / 8 to 16 V DC operating range
• Power Consumption: 18.96 W max
• Fuse Rating: 7A inline fuse / thermal breaker
• Dimensions (Trunnion Mounted): 12.36 in W x 8.93 in H x 7.01 in D
• Dimensions (Surface/Flush Mounted): 12.36 in W x 8.54 in H x 7.01 in D
• Transducer Connection: 1 x 25-pin RealVision connector
• Network: RayNet Ethernet (10/100/1000 Mbit/sec), WiFi 802.11 b/g/n, Bluetooth v4.0
• NMEA 2000: DeviceNet connector with LEN rating of 1
• GNSS Receiver: GPS / GLONASS / BeiDou with SBAS support
• Internal Storage: 64 GByte solid-state memory
• Sonar Channels: RealVision 3D (70 W / 350 kHz), SideVision (70 W / 350 kHz), DownVision (35 W / 350 kHz), CHIRP High (100 W / 200 kHz)
- Bright marine display
- RealVision 3D sonar
- Advanced navigation system
- Built for boaters
- 12 in touchscreen display
Specs
Unit Weight
11.90 lb
Brand
Raymarine
MFG Part No.
113558
