Pacbrake Bravo Wireless Air Control Kit w/ 425 Series Compressor (HP30040-QM)
$899.99
FREE Shipping
FREE In-Store Pickup
Not Available
- Ships from vendor
- Delivery to Change Address
- Delivery Fee Details
This item is excluded from all discounts and promotions.
Minimum order quantity of
1
Maximum order quantity of
100
Must purchase in increments of
1
Return Policy
We believe in offering the very best value, quality, and selection. Plus, we want you to enjoy your purchase! In the event you wish to send a product back to us, you may return most unused items for a refund or exchange, minus shipping, within 90 days from the date of purchase unless noted below under exceptions and exclusions. Refunds are issued to the original form of payment.
Features
Upgrade your air suspension setup with the Pacbrake Bravo Wireless Air Control Kit HP30040-QM. Designed around the powerful 425 Series compressor, this system provides convenient wireless pressure management with up to 150 PSI capability and continuous-duty performance. The quick-mount design simplifies installation while allowing drivers to adjust air spring pressure directly from their smartphone.

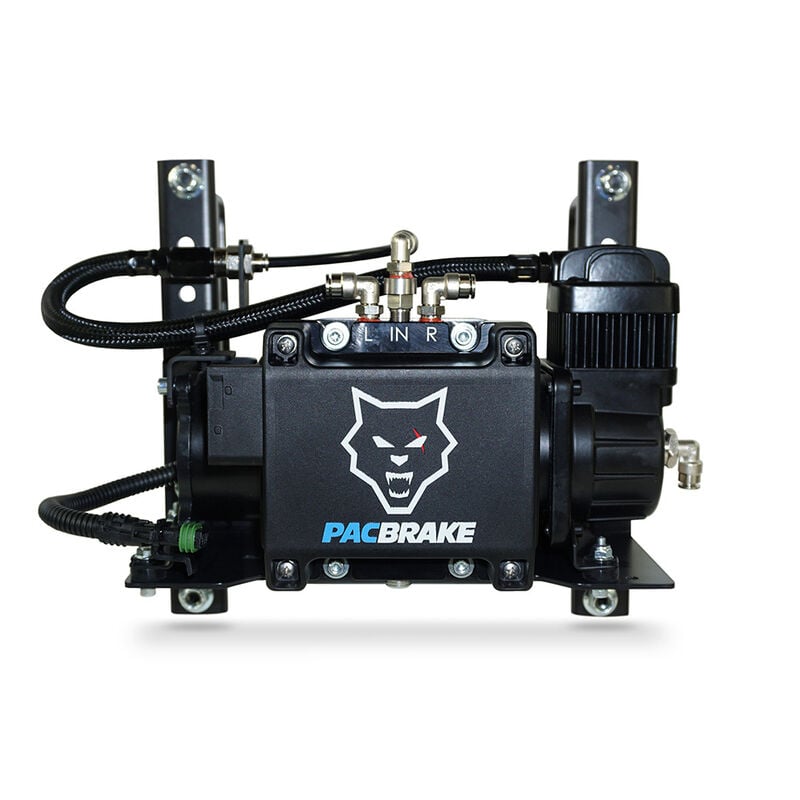

Built for demanding truck applications, the HP30040-QM features a sealed waterproof compressor assembly, billet aluminum control manifold, and flexible expansion options for air tanks and onboard accessories. Whether towing or adjusting ride quality on the go, this wireless controller delivers reliable air suspension management without the need for manual adjustments.
Features:
• Wireless control through BRAVO mobile app
• High-output 425 Series compressor with 150 PSI maximum pressure
• 100% duty cycle operation at 100 PSI
• Quick-mount installation with no drilling or cutting required
• IP67-rated waterproof compressor protection
• Real-time pressure monitoring and setup assistance

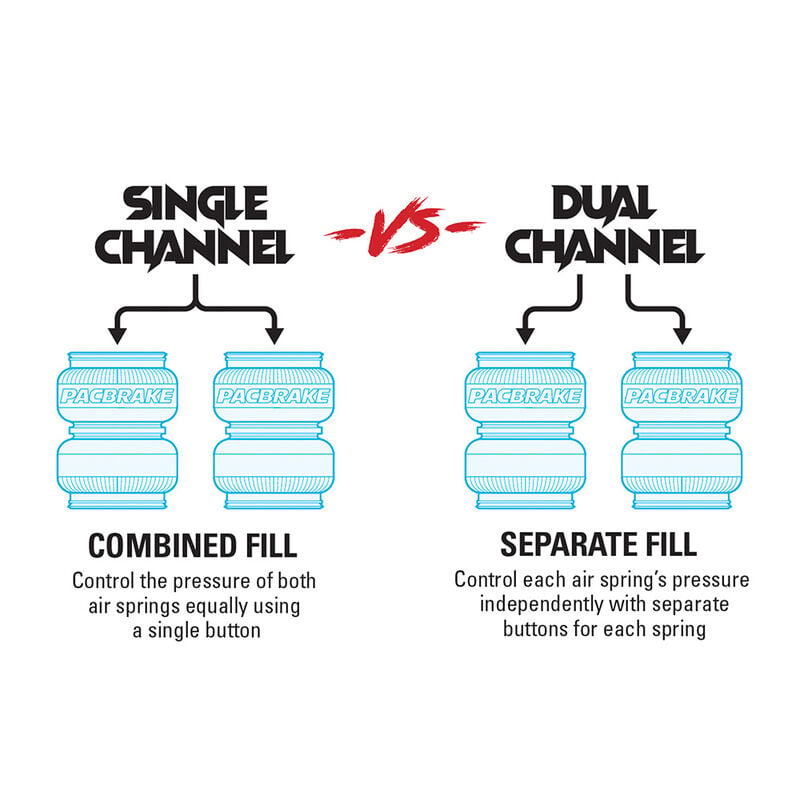

• Supports single or dual path air control operation
• Compatible with optional air tanks and accessories
• Works with existing Pacbrake air spring systems
Specs:
• Brand: Pacbrake
• Part Number: HP30040-QM
• Compressor Type: 425 Series
• Maximum Working Pressure: 150 PSI
• Air Flow Rate: 1.75 CFM
• Duty Cycle: Continuous at 100 PSI
• Operating Temperature Range: -40°F to +158°F
• Connectivity Range: 30 ft minimum
• Protection Rating: IP67 (with remote-mounted intake filter)
• Vehicle Application: Universal
• Compatibility: iOS and Android devices
Built for demanding truck applications, the HP30040-QM features a sealed waterproof compressor assembly, billet aluminum control manifold, and flexible expansion options for air tanks and onboard accessories. Whether towing or adjusting ride quality on the go, this wireless controller delivers reliable air suspension management without the need for manual adjustments.
Features:
• Wireless control through BRAVO mobile app
• High-output 425 Series compressor with 150 PSI maximum pressure
• 100% duty cycle operation at 100 PSI
• Quick-mount installation with no drilling or cutting required
• IP67-rated waterproof compressor protection
• Real-time pressure monitoring and setup assistance
• Supports single or dual path air control operation
• Compatible with optional air tanks and accessories
• Works with existing Pacbrake air spring systems
Specs:
• Brand: Pacbrake
• Part Number: HP30040-QM
• Compressor Type: 425 Series
• Maximum Working Pressure: 150 PSI
• Air Flow Rate: 1.75 CFM
• Duty Cycle: Continuous at 100 PSI
• Operating Temperature Range: -40°F to +158°F
• Connectivity Range: 30 ft minimum
• Protection Rating: IP67 (with remote-mounted intake filter)
• Vehicle Application: Universal
• Compatibility: iOS and Android devices
- Wireless smartphone air control
- Expandable with air tanks
- Quick-mount installation design
- 150 PSI compressor output
- Weather-resistant IP67 housing
Specs
Unit Weight
25.00 lb
Brand
PacBrake
MFG Part No.
HP30040-QM
