Features

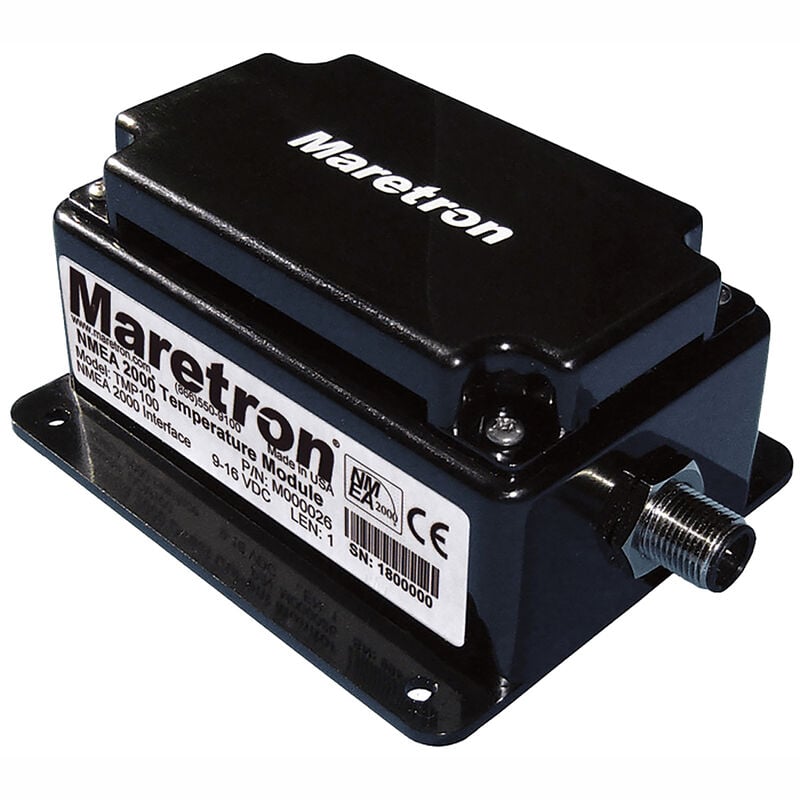

Maretron's Temperature Sensor Monitor measures the temperature for up to 6 temperature probes and reports the information over an NMEA 2000 network. The Temperature Sensor Monitor supports up to 4 thermistor probes and 2 high temperature thermocouple probes. Optional thermistor probes (-20 Degree Celsius to 80 Degree Celsius or - 4 Degree Fahrenheit to 176 Degree Fahrenheit) cover a wide range of applications including cabin air temperature, engine room air temperature, refrigerator/freezer temperature, under bolt temperature (inverters, charges, pumps, motors, etc.), tank temperatures (live well bait, hot water, etc.), and air duct temperatures. The optional thermocouple probes (0 Degree Celsius to 900 Degree Celsius or 32 Degree to 1652 Degree Fahrenheit) are used to measure Exhaust Gas Temperature (EGT) as part of a comprehensive fuel management system. The Maretron Temperature Sensor Monitor is designed to operate within the harsh demands of the marine environment. However, no piece of marine electronic equipment can function properly unless installed, configured, and maintained in the correct manner. Please read carefully and follow these instructions for installation, configuration, and usage of the Maretron Temperature Sensor Monitor in order to ensure optimal performance.
• Measures: Up To 6 Temperature Probes
• Number Of Channels: 4 Thermistor Channels/ 2 Thermocouple Channels
• Measurement Range: 0 To 900 Degree Celsius
• Voltage: 9 To 32 Volt
• Power Consumption: 50 Milliamp

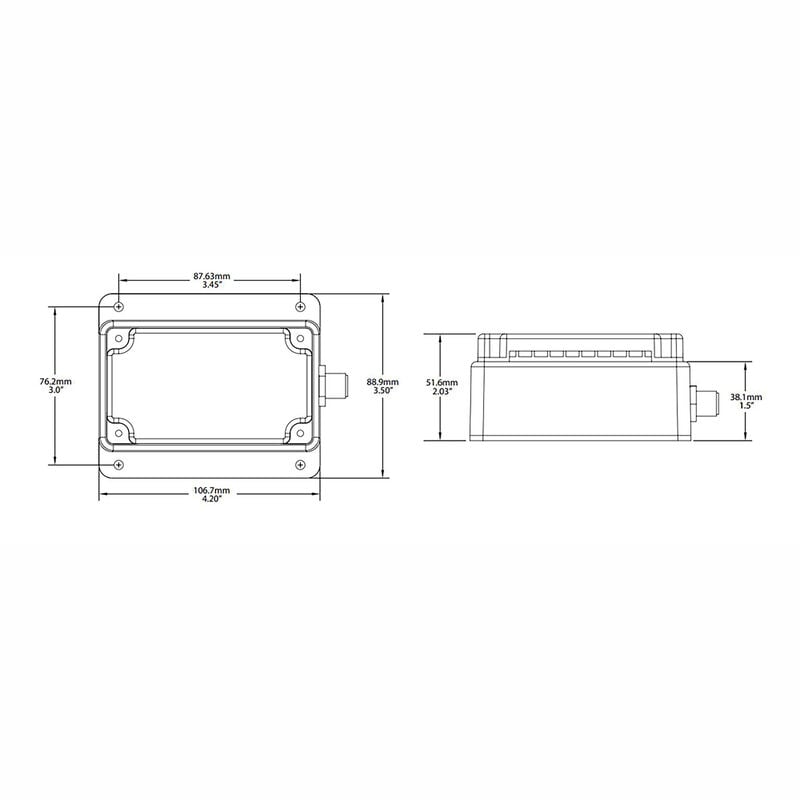

• Dimensions: 4.2 Inch Length x 3-1/2 Inch Width x 2.03 Inch Height
• Operating Temperature: -25 To 55 Degree Celsius
• Waterproof Rating: IP64 Rated
• Certification: NMEA 2000 Approved/ IEC 61162-3/ IEC 60945/ FCC Certified/ CE Certified
• Includes: With 4 Stainless Steel Mounting Screws/ User Manual
• Four Channels For Thermistor Probes And 2 Channels For High Temperature Thermocouple Probes
• Wide Variety Of Applications Supported
• Measures: Up To 6 Temperature Probes
• Number Of Channels: 4 Thermistor Channels/ 2 Thermocouple Channels
• Measurement Range: 0 To 900 Degree Celsius
• Voltage: 9 To 32 Volt
• Power Consumption: 50 Milliamp
• Dimensions: 4.2 Inch Length x 3-1/2 Inch Width x 2.03 Inch Height
• Operating Temperature: -25 To 55 Degree Celsius
• Waterproof Rating: IP64 Rated
• Certification: NMEA 2000 Approved/ IEC 61162-3/ IEC 60945/ FCC Certified/ CE Certified
• Includes: With 4 Stainless Steel Mounting Screws/ User Manual
• Four Channels For Thermistor Probes And 2 Channels For High Temperature Thermocouple Probes
• Wide Variety Of Applications Supported
- NMEA 2000(R) Interface
- Waterproof Connectors
- Sealed Waterproof Enclosure
- Opto-Isolated From NMEA 2000(R) Eliminating Potential Ground Loops
- Six Relays For On And Off Control Over NMEA 2000(R) Network
Specs
Unit Weight
1.00 lb
Brand
Maretron
MFG Part No.
TMP100-01
