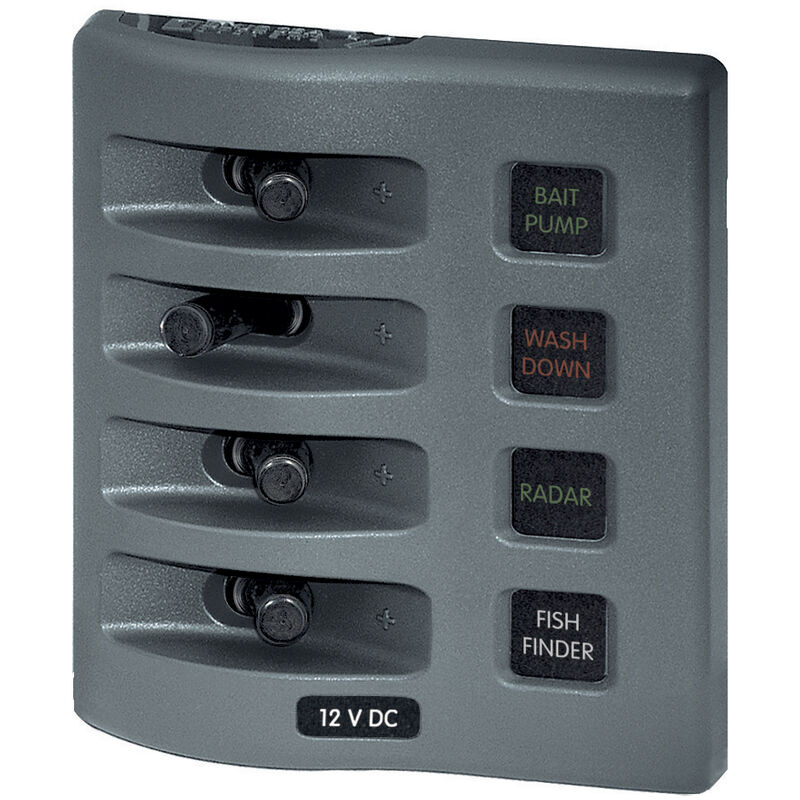

Blue Sea WeatherDeck Waterproof Fuse Panel - 4 Positions, gray
Item No. 313930
Blue Sea WeatherDeck Waterproof Fuse Panel - 4 Positions, gray is rated 4.0 out of 5 by 1.
  • y_2021, m_10, d_14, h_18
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.19
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_US, sid_313930, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_overtons
  • bvseo_sdk, dw_cartridge, 17.1.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 30ms
  • reviews, product
Images
Blue Sea WeatherDeck Waterproof Fuse Panel - 4 Positions, gray
View larger
Details

Blue Sea WeatherDeck Waterproof Fuse Panel - 4 Positions, gray

Blue Sea WeatherDeck Waterproof Fuse Panel - 4 Positions, gray is rated 4.0 out of 5 by 1.
  • y_2021, m_10, d_14, h_18
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.19
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_US, sid_313930, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_overtons
  • bvseo_sdk, dw_cartridge, 17.1.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 38ms
  • reviews, product
Item No. 313930
$84.99 $92.99
Save $8.00 ( 9% Off )
Product Actions
Product Actions
Additional Information
The Blue Sea WeatherDeck Waterproof Fuse Panel is designed for above-deck use, like flybridge and open cockpit applications. Watertight mounting gasket ensures that the panel is waterproof to IP67 standards, allowing for immersion up to 30 minutes. In addition to WeatherDeck ON-OFF Toggle Switches with waterproof boots, ATO-ATC blade-type fuses with UV-stabilized, waterproof boots offer circuit protection. Integrated switch guards prevent accidental switching. Additional WeatherDeck Toggle Switches can be purchased in a variety of styles (Singe Pole/Single Throw, Single Pole/Double Throw, etc.). Bi-colored 12V DC LEDs illuminate circuit labels to help identify circuits as OFF (red), ON (green), or Blown (no color), drawing only 10mA each. Independent backlighting allows switching and dimming. Panels are compatible with all Blue Sea Digital Dimmers (sold separately). Tin-plated wire and connectors resist corrosion. Panel and cover are constructed from reinforced, UV-resistant thermoplastic. Panel can be mounted in 4 different orientations. Includes 30 Square Format labels.

• Fuse Available: 1-40A
• Switch Rating: 15A maximum
• Maximum Voltage Rating: 12V DC
• Maximum Amperage Per Circuit: 15A @ 12V DC
• Panel Cumulative Rating: 60A
• 4.3"H x 3.88"W
Show moreShow less
  • Waterproof panel is designed for above deck use
  • Waterproof to IP67 standards
  • WeatherDeck ON-OFF Toggle Switches
  • ATO-ATC blade type fuses
  • Bi-colored LEDs illuminate square circuit labels
Unit Weight 0.84 lb
Brand Blue Sea Systems
WARNING: Cancer and Reproductive Harm For more information, go to www.P65Warnings.ca.gov/product.
Rated 4 out of 5 by from Better than expected Overall great to deal with Gander Mtn.
Date published: 2014-10-27
  • y_2021, m_10, d_14, h_18
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.19
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_US, sid_313930, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_overtons
  • bvseo_sdk, dw_cartridge, 17.1.0, p_sdk_3.2.0
  • CLOUD, getReviews, 30ms
  • reviews, product

HOW DO YOU CONNECT THIS TO BATTERY AND LIGHTS

Asked by: JER BEAR
Hello- Thanks for your question. You will source to the busbar. http://assets.bluesea.com/files/resources/instructions/6443.pdf
Answered by: Product Specialist
Date published: 2019-08-15

HOW DO YOU ACCESS THE FUSES TO REPLACE BLOWN ONES AND DO YOU OFFER A 4 GANG PANEL WITH OUTLET (CIGARET STYLE)

Asked by: Paul
The front face plate snaps off and uncovers a waterproof boot which protects the fuses.
Answered by: Casey Marine Buyer
Date published: 2015-09-23
