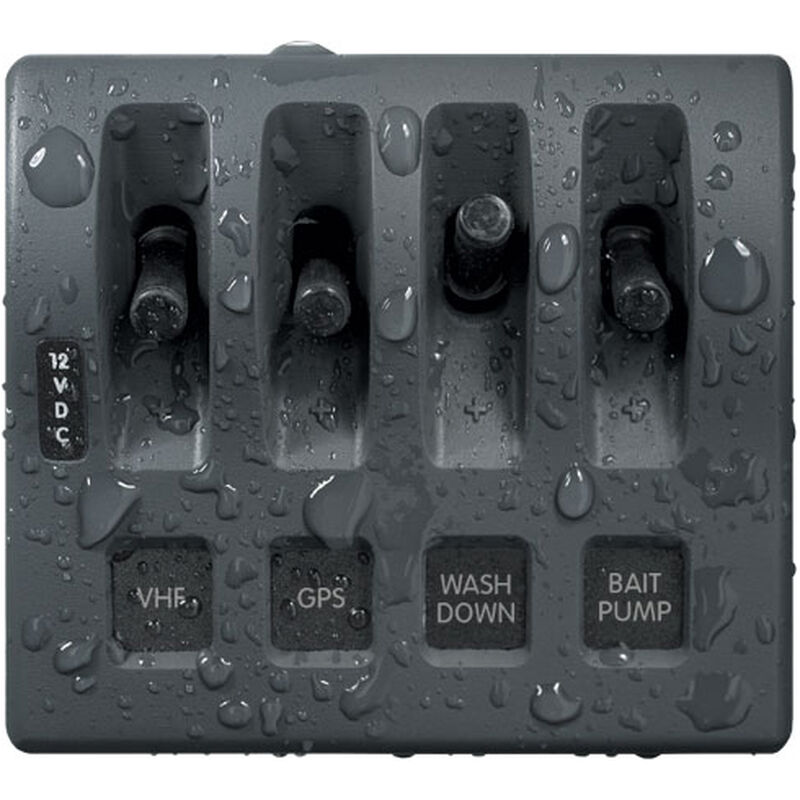

Blue Sea Systems WeatherDeck 12V DC Waterproof Switch Only Panel, 4 Positions
$56.99
Ship to Home
Delivery time calculated in checkout
Delivery time calculated in checkout
- Ships from vendor
FREE Standard Shipping over $99. | Good Sam Members: FREE Shipping over $69
This item is excluded from all discounts and promotions.
Minimum order quantity of
1
Maximum order quantity of
100
Must purchase in increments of
1
Return Policy
We believe in offering the very best value, quality, and selection. Plus, we want you to enjoy your purchase! In the event you wish to send a product back to us, you may return most unused items for a refund or exchange, minus shipping, within 90 days from the date of purchase unless noted below under exceptions and exclusions. Refunds are issued to the original form of payment.
Features
The Blue Sea Systems WeatherDeck Switch Panel is waterproof, rated IP67 (for temporary immersion in water), and uses materials that won't deteriorate in the harsh sun, salt, and water. Many small boats, which already have circuit protection and do not run at night, simply need a switch panel which is waterproof. This WeatherDeck Switch Only Panel has all the rugged features of the proven WeatherDeck Panel family; however it does not have the added cost of backlighting and circuit protection.
Features integrated switch guards to reduce the risk of accidental switching. Can be mounted in four different orientations. The panel front is rated IP67 when properly mounted with watertight mounting gasket. UV-stabilized, weather-resistant faceplate snaps on and off providing access to components and concealing mounting screws.
Includes four WeatherDeck Toggle Switch Boots, four WeatherDeck Toggle Switches SPST ON-OFF, and a waterproof DC Label Kit V1 with 30 labels.
• Positions: 4
• Nominal Voltage: 12V DC / 24V DC
• Circuit Protection: None
• Maximum Amperage: 15A @ 12V DC (per circuit)
• Panel Cumulative Rating: 45A
• Material: Reinforced Polycarbonate
• Overall Dimensions: 4.3"H x 3.88"W x 2.5"D
Blue Sea Systems No. 4305
Switching and Circuit Protection Subsystem
The pairing of the WeatherDeck Switch Only Panel and the ST Blade Fuse Block with Ground (not included) is ideal for small runabouts and RIBS. These boats often require the waterproof switching of the WeatherDeck Panel, do not require backlighting, and are operated only during daylight hours. Using an ST Blade Fuse Block allows consolidation of all of the boat's circuit protection in a dry and protected location.
Features integrated switch guards to reduce the risk of accidental switching. Can be mounted in four different orientations. The panel front is rated IP67 when properly mounted with watertight mounting gasket. UV-stabilized, weather-resistant faceplate snaps on and off providing access to components and concealing mounting screws.
Includes four WeatherDeck Toggle Switch Boots, four WeatherDeck Toggle Switches SPST ON-OFF, and a waterproof DC Label Kit V1 with 30 labels.
• Positions: 4
• Nominal Voltage: 12V DC / 24V DC
• Circuit Protection: None
• Maximum Amperage: 15A @ 12V DC (per circuit)
• Panel Cumulative Rating: 45A
• Material: Reinforced Polycarbonate
• Overall Dimensions: 4.3"H x 3.88"W x 2.5"D
Blue Sea Systems No. 4305
Switching and Circuit Protection Subsystem
The pairing of the WeatherDeck Switch Only Panel and the ST Blade Fuse Block with Ground (not included) is ideal for small runabouts and RIBS. These boats often require the waterproof switching of the WeatherDeck Panel, do not require backlighting, and are operated only during daylight hours. Using an ST Blade Fuse Block allows consolidation of all of the boat's circuit protection in a dry and protected location.
- Rugged waterproof design
- Does not include backlighting & circuit protection
- Integrated switch guards
- Faceplate snaps on and off for access
- 15A @ 12V DC per circuit
Specs
Unit Weight
0.68 lb
Brand
Blue Sea Systems
MFG Part No.
4305
