Blue Sea ANL Fuse Block, 300A w/Cover
Item No. 316121
Blue Sea ANL Fuse Block, 300A w/Cover is rated
out of
5 by
1.
Images
Details
https://www.overtons.com/blue-sea-anl-fuse-block-300a-wcover-316121.html
Blue Sea ANL Fuse Block, 300A w/Cover
$18.99
$19.99
Save $1.00
(
5% Off
)
Additional Information
Features

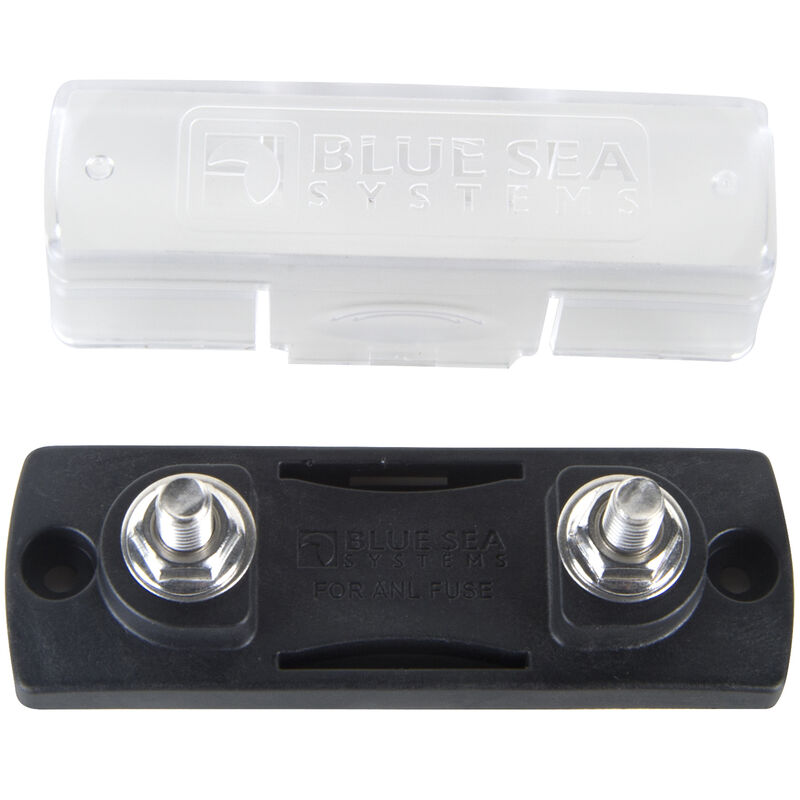

The Blue Sea ANL Fuse Block provides a secure connection between source, fuse, and load. Swing-out design allows simple replacement of the Blue Sea ANL Fuse without having to remove fasteners. Tin-plated copper fuse mounting block is corrosion-resistant. Insert-molded, stainless steel studs have high torque and are corrosion-resistant for secure mounting and electrical contact. Reinforced polycarbonate base resists high temperatures. Insulating cover meets ABYC/USCG requirements and allows wire access in any direction. Accepts 5/16" (M8) ring terminals. Fuses sold separately.
• Maximum Voltage: 32V DC
• Maximum Amperage: 300 Amps
• Mounting Screw: #10 (M5) screw
• Maximum Torque: 110 in-lb
• Maximum Cable Size: Up to 2/0 AWG
• Weight: 0.35 lbs.
Show moreShow less
• Maximum Voltage: 32V DC
• Maximum Amperage: 300 Amps
• Mounting Screw: #10 (M5) screw
• Maximum Torque: 110 in-lb
• Maximum Cable Size: Up to 2/0 AWG
• Weight: 0.35 lbs.
- Swing-out design for easy replacement
- Tin-plated copper fuse mounting block
- Stainess steel 5/16" terminal studs w/high torque
- Corrosion-resistant
- Some models have an insulated cover
Specs
| Unit Weight | 0.34 lb |
|---|---|
| Brand | Blue Sea Systems |
WARNING: Cancer and Reproductive Harm
For more information, go to www.P65Warnings.ca.gov/product.
Reviews
Q & A
The Blue Sea ANL Fuse Block provides a secure connection between source, fuse, and load. Swing-out design allows simple replacement of the Blue Sea ANL Fuse without having to remove fasteners. Tin-plated copper fuse mounting block is corrosion-resistant. Insert-molded, stainless steel studs have high torque and are corrosion-resistant for secure mounting and electrical contact. Reinforced polycarbonate base resists high temperatures. Insulating cover meets ABYC/USCG requirements and allows wire access in any direction. Accepts 5/16" (M8) ring terminals. Fuses sold separately.
• Maximum Voltage: 32V DC
• Maximum Amperage: 300 Amps
• Mounting Screw: #10 (M5) screw
• Maximum Torque: 110 in-lb
• Maximum Cable Size: Up to 2/0 AWG
• Weight: 0.35 lbs.
Show moreShow less
• Maximum Voltage: 32V DC
• Maximum Amperage: 300 Amps
• Mounting Screw: #10 (M5) screw
• Maximum Torque: 110 in-lb
• Maximum Cable Size: Up to 2/0 AWG
• Weight: 0.35 lbs.
- Swing-out design for easy replacement
- Tin-plated copper fuse mounting block
- Stainess steel 5/16" terminal studs w/high torque
- Corrosion-resistant
- Some models have an insulated cover
| Unit Weight | 0.34 lb |
|---|---|
| Brand | Blue Sea Systems |
WARNING: Cancer and Reproductive Harm
For more information, go to www.P65Warnings.ca.gov/product.
Rated 1 out of
5
by
Ron from
Itemn IS NOT as pictured!!!!!
I wanted a fuse holder with two lugs on each side so the cables would not have to be removed in the even of a fuse change. The item I received has only one lug, meaning if I have to replace the fuse, the cable will also be disconnected. The need to correct the pictureQ!!Q
Date published: 2016-02-02
